1551V13BK

80 × 20 mm

Material: ABS

Category: All Products, Hand-Held

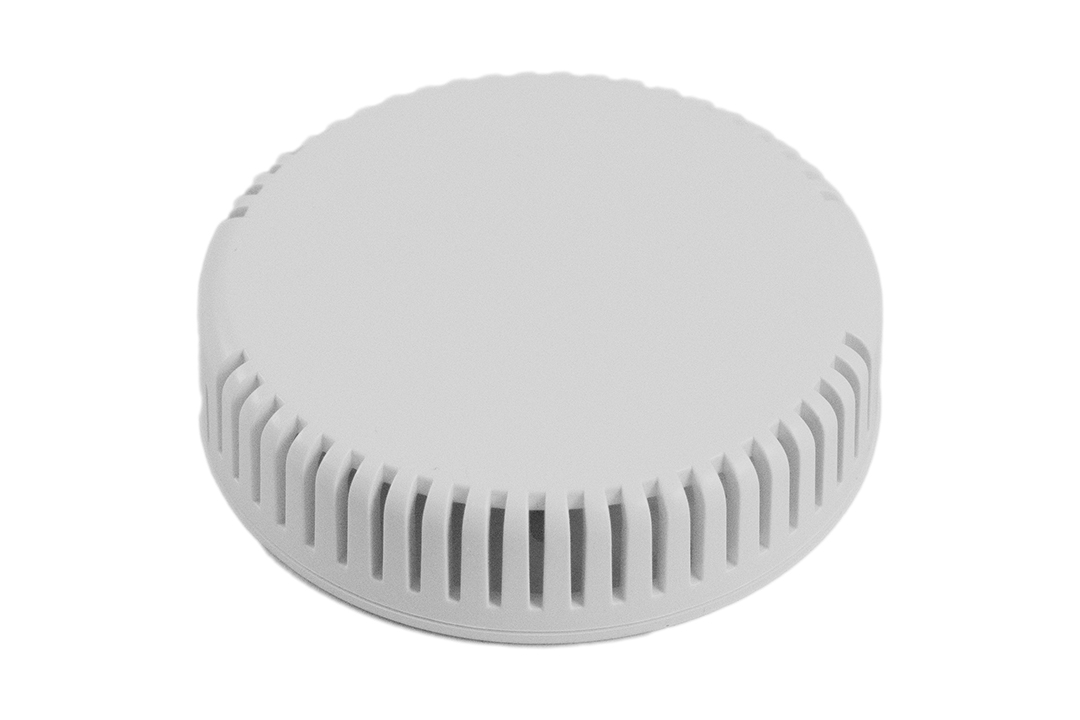

Miniature Plastic Round Enclosure - Snap Fit Lid, Vented
£2.15

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.







ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.









Enquire Now

Product Details

Key Features:

  • Ideally suited for mounting small printed circuit boards or used as potting boxes.
  • Moulded in a choice of black, grey, or translucent blue general purpose ABS plastic.
  • Satin texture finish.
  • Complete with lid and two self tapping screws.
  • This series is also available with flanged lids.
  • Screws are colour matched to enclosure (nickel plated screws with grey enclosures and black plated with black enclosures).
  • 2 P.C. board standoffs moulded into interior.
  • Lap joint construction provides protection against access of dust and splashing water.
  • Designed to meet IP54.
  • Some sizes are available with a keyring kit.
  • Models with key ring kit are predrilled in the narrow side.
  • For even smaller enclosures, try our?1551MINI?series.

Notes:

  • Lid is approx. 0.12″ (3 mm) deep.
  • Extra self tapping lid screws are #4 x 1/2″ (Qty 100 – Part number 1591TS100 – nickel plated and 1591TS100BK – black)
  • To secure P.C. board use self tapping #2 x 3/16″ screws (Qty 100 – Part number 1551ATS100) – not included with enclosure.

Technical

Dimensions 80 × 20 mm
Colour

Black

Height

20

Width

N/A

Length

80

IP Rating

IP30

Manufacturer

Hammond

Material

ABS

Flammability

UL94-HB

Shape

Rectangular/Square

Mounting

Hand-Held

Feature

N/A

Series

1551

Downloads

1551V13BK-2

363.18 KB
