1551WYFLBK

50 × 100 × 24 mm

Material: Polycarbonate

Category: All Products, Hand-Held

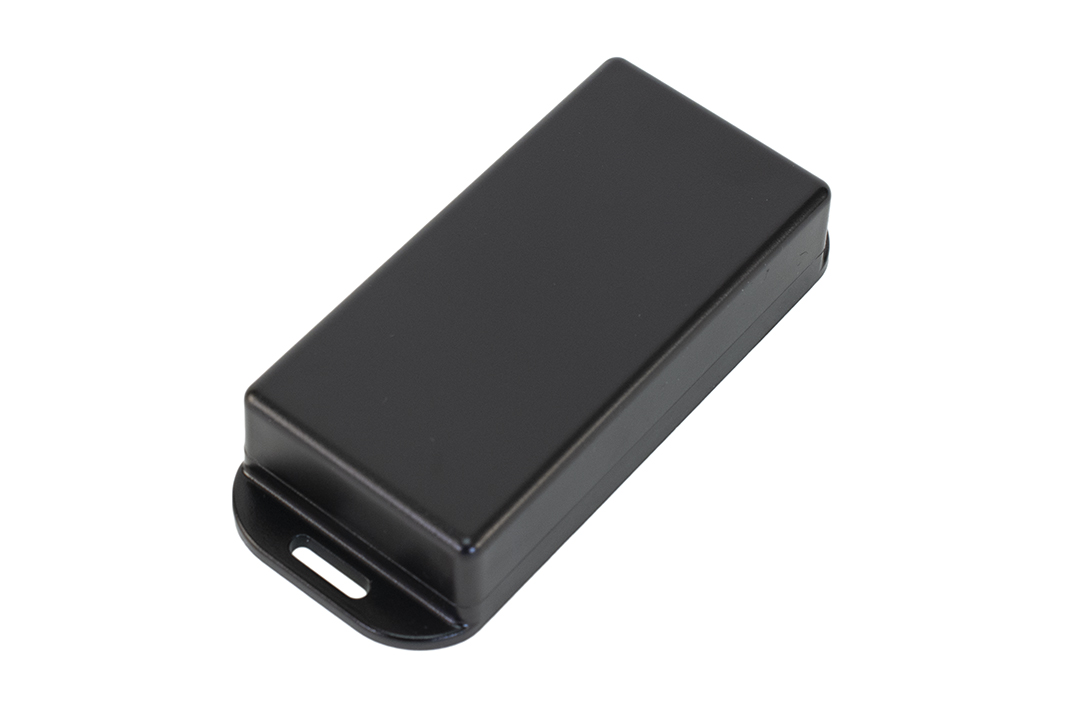

Miniature Waterproof Plastic Enclosure - Flanged
£4.78

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.







ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.









Enquire Now

Product Details

Key Features:

  • Ideally suited for mounting small printed circuit boards.
  • moulded from robust polycarbonate
  • Suitable for outdoor use
  • Polycarbonate has a flame rating of UL94 V-0
  • Satin texture finish.
  • Complete with lid and (4) plastite #4 self tapping screws.
  • Available with or without integrated Wall Mounting flanges.
  • P.C. board standoffs moulded into interior for easy installation.
  • Includes replaceable silicone gasket to protect against ingress of water or dust.
  • Designed to meet IP68.
  • For general purpose (not water-tight) miniature enclosures, try our 1551 series.

Technical

Dimensions 50 × 100 × 24 mm
Colour

Black

Height

24

Width

100

Length

50

IP Rating

IP68

Manufacturer

Hammond

Material

Polycarbonate

Flammability

UL94-V0

Shape

Rectangular/Square

Mounting

Hand-Held

Feature

N/A

Series

1551

Downloads

1551WYFLBK-2

342.63 KB
