1552C3BK

110 × 50 × 22 mm

Material: ABS

Category: All Products, Hand-Held

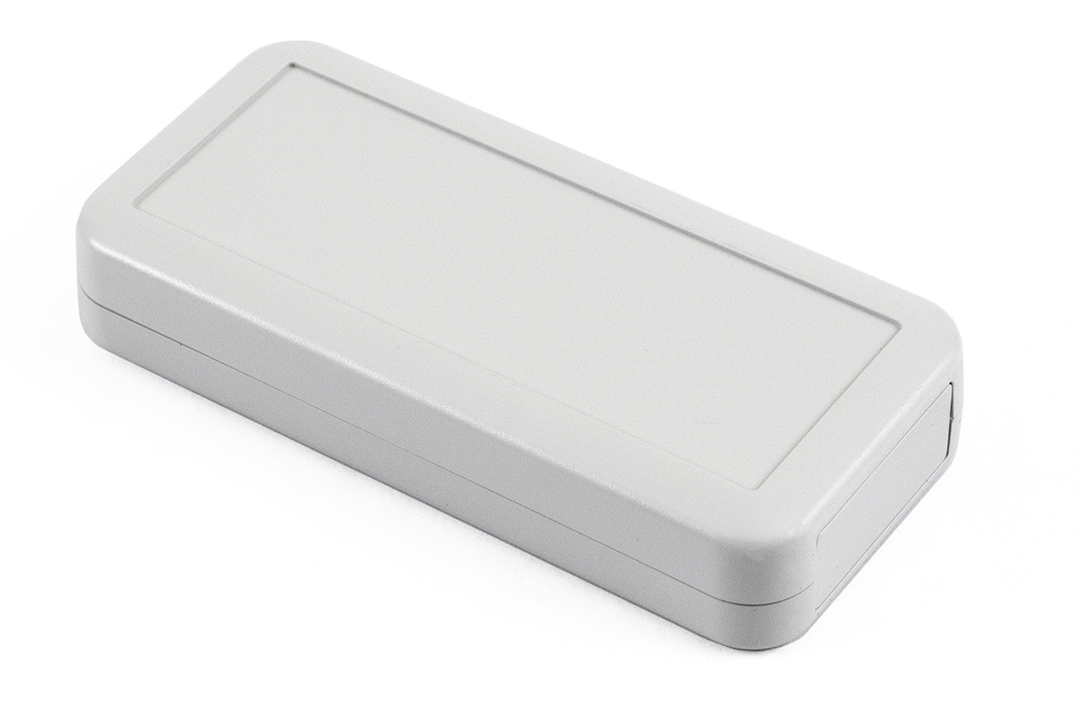

Hand-Held ABS Plastic Enclosure, 110 x 50 x 22
£5.71

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

Key Features:

  • Electronic instrument enclosures, ideally suited for mounting printed circuit boards.
  • Ergonomically designed for a comfortable fit into the user?s hand.? Also suitable for desktop use.
  • End panels are removable for easy modification, or can be replaced with specially designed rubberized cord grips.
  • Recessed top for membrane display or keypad.
  • Lap joint construction provides protection against dust accumulation and splashing water.??Designed to meet IP54 requirements.
  • moulded in a choice of black or grey flame retardant ABS plastic with a satin texture.
  • Unit is secured with (4) self tapping screws.? Except for sizes C1 and D1, snap closures are present near the middle of the enclosure wall for added sturdiness.
  • Black enclosures come with black screws, grey enclosures come with nickel plated screws.
  • Rubberized cord grips and Wall Mount holder accessories are available (sold separately).

Specifications:

  • Enclosures and Wall Mount holder accessories are moulded from flame retardant ABS plastic with a rating of UL94-V0.
  • Cable gland end panel is made from flexible TPE and hard polycarbonate , both rated UL94-V0
  • Cable tie-down accessories are moulded from polycarbonate (UL94-V0).

Technical

Dimensions 110 × 50 × 22 mm
Colour

Black

Height

22

Width

50

Length

110

IP Rating

IP54

Manufacturer

Hammond

Material

ABS

Flammability

UL94-V0

Shape

Rectangular/Square

Mounting

Hand-Held

Feature

Recessed Lid

Series

1552

Downloads

1552C3BK-2

516.22 KB
