1552D5BK-2
512.75 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
1552D5BK
150 × 50 × 30 mm
Material: ABS
Category: All Products, Hand-Held

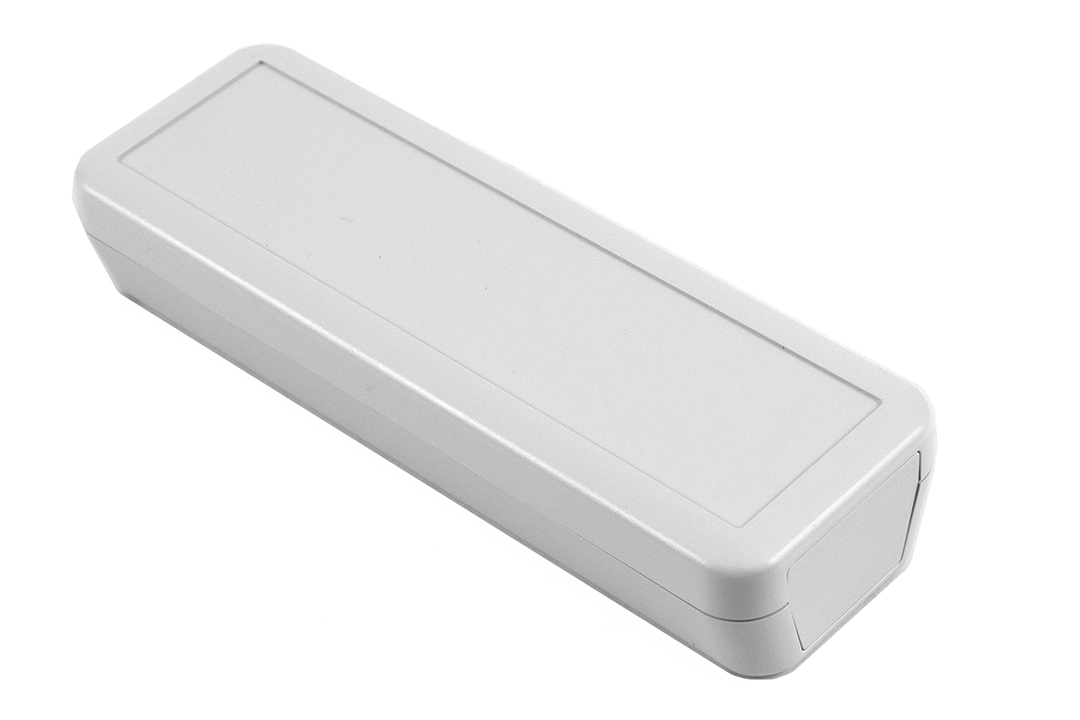

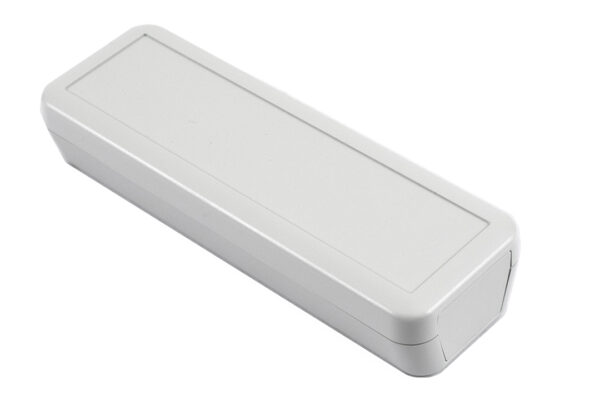

Hand-Held ABS Plastic Enclosure, 150 x 50 x 30
£5.97
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
Key Features:
- Electronic instrument enclosures, ideally suited for mounting printed circuit boards.
- Ergonomically designed for a comfortable fit into the user?s hand.? Also suitable for desktop use.
- End panels are removable for easy modification, or can be replaced with specially designed rubberized cord grips.
- Recessed top for membrane display or keypad.
- Lap joint construction provides protection against dust accumulation and splashing water.??Designed to meet IP54 requirements.
- moulded in a choice of black or grey flame retardant ABS plastic with a satin texture.
- Unit is secured with (4) self tapping screws.? Except for sizes C1 and D1, snap closures are present near the middle of the enclosure wall for added sturdiness.
- Black enclosures come with black screws, grey enclosures come with nickel plated screws.
- Rubberized cord grips and Wall Mount holder accessories are available (sold separately).
Specifications:
- Enclosures and Wall Mount holder accessories are moulded from flame retardant ABS plastic with a rating of UL94-V0.
- Cable gland end panel is made from flexible TPE and hard polycarbonate , both rated UL94-V0
- Cable tie-down accessories are moulded from polycarbonate (UL94-V0).
Technical
| Dimensions | 150 × 50 × 30 mm |
|---|---|
| Colour | Black |
| Height | 30 |
| Width | 50 |
| Length | 150 |
| IP Rating | IP54 |
| Manufacturer | Hammond |
| Material | ABS |
| Flammability | UL94-V0 |
| Shape | Rectangular/Square |
| Mounting | Hand-Held |
| Feature | Recessed Lid |
| Series | 1552 |
