1555BF22GY

65 × 65 × 42 mm

Material: ABS

Category: All Products, General Purpose Plastic

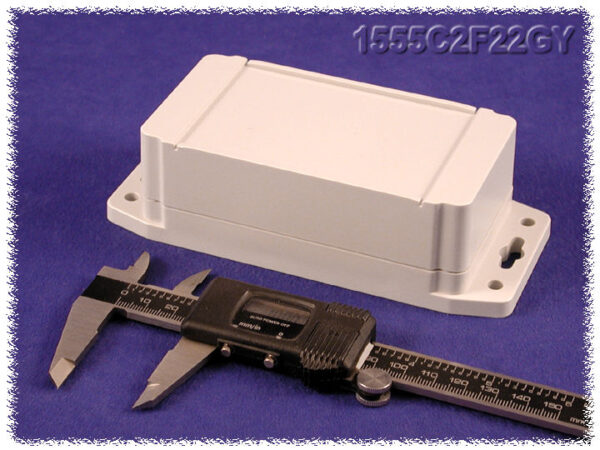

Waterproof ABS Enclosure Flanged lid
£10.50

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.







ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.









Enquire Now

Product Details

Features:

  • Designed for harsh industrial environments or outdoor applications (security, outdoor wireless, controls, etc.)
  • Ideally suited for mounting printed circuit boards, panels or DIN rail mounted components (see photo features for details).
  • Designed for Wall Mounting. ?Interior is secure as lid screws are behind the lid. Can be made more secure if Wall Mounted with security screws (tamper resistant screws).
  • Satin texture finish with smooth recessed surface on lid for a membrane keypad or label
  • Standoffs moulded in the interior of the lid & enclosure – designed for #4 x 1/4? self tapping screws (our part number 1555TS100)
  • General purpose ABS plastic (material carries a UL flammability rating of UL94 HB). Not recommended for outdoor use.
  • Polycarbonate (material carries a UL flammability rating of UL94 5VA @ 3mm) – Recommended for outdoor use
  • Colour is a light grey (RAL 7035) to help keep heat absorption down.
  • Gasketed lid with two piece ?tongue & groove? construction provides protection against access of oil, dust and water.
  • Gasket is one piece made from high temperature, U.L. listed silicone.??Supplied loose inside the enclosure (not pre-installed).
  • Poly-carb versions are designed to meet NEMA Type 4, 4X, 6, 6P, 12 & 13 ratings which meet and exceed IP ratings up to and including IP68.
  • ABS Plastic versions are designed to meet IP66.
  • Polycarbonate version is UL 508A listed (File # E65324).
  • Lid is secured with included M4 stainless steel machine screws which are threaded into corrosion resistant bushings for repetitive assembly & disassembly. All hardware is designed to avoid corrosion caused by harsh environments over time.
  • Internal features are maximized for mounting options and vary with size
  • Internal DIN rail mounting tabs moulded into lid (except smaller 1555CF22 & 1555CF42 enclosures).
  • Standoffs (#6 self tapping screws) for P.C. board or inner panel.

Technical

Dimensions 65 × 65 × 42 mm
Colour

Grey

Height

42

Width

65

Length

65

IP Rating

IP66

Manufacturer

Hammond

Material

ABS

Flammability

UL94-HB

Shape

Rectangular/Square

Mounting

Wall Mount

Feature

Waterproof

Series

1555

Downloads

1555BF22GY-2

904.64 KB
