1556CPL

111 × 71 × 2 mm

Material: Aluminium

Category: All Products, General Purpose Plastic

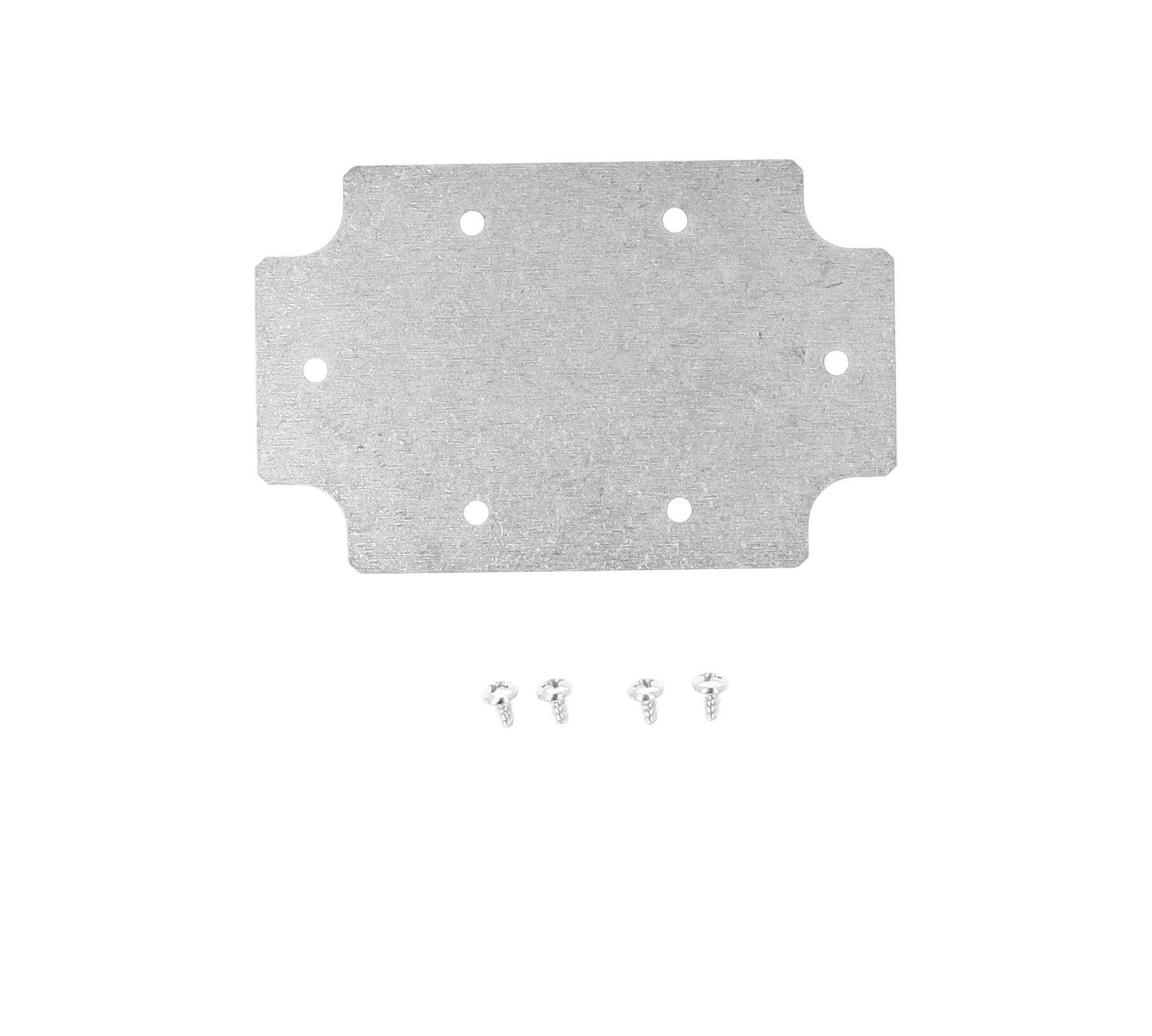

Aluminium Inner Panel for 'C' Size 1556 Enclosure
£2.80
Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

Key Features:

  • Ideally suited for mounting printed circuit boards, IoT equipment, and other small electronics.
  • Can be used in a table top configuration using rubber feet (included) or two different Wall Mount configurations using Wall Mount foot kit (sold separately).
  • Rounded corners and face provide a more modern look.
  • Lap joint construction provides protection against access of dust and splashing water.
  • Available in black, grey, or white flame retardant ABS plastic with light satin texture.
  • Moulded from flame retardant material which carries a flammability rating of UL94-V0. ?For indoor use.
  • Designed to meet IP54.
  • Lid hardware and 4x rubber feet included with enclosure. Lid is secured with high strength #6 x 1/2? self-tapping Plastite screws.
  • Aluminium inner panels are available as accessories.? Sold separately.? See table below.

Easy PC Board Mounting

Multiple mounting locations inside the lid and base of the enclosure allow for easy PC board mounting or can be used with Hammond aluminium panels (sold separately)

Infinitely Flexible with Desktop or Two Wall Mounting Options:

Heavy Duty Wall Flange Mount
(shown with accessory mounting feet)
Flush Wall Mount (Mounting Feet as Keyhole Slots)
Desktop / Tabletop (Rubber Feet Included)




Accessories:
Accessories include aluminium inner panels and 4-packs of mounting feet which can be used for flange mounting or keyhole mounting.

Technical

Dimensions 111 × 71 × 2 mm
Colour

Natural

Height

2

Width

71

Length

111

IP Rating

N/A

Manufacturer

Hammond

Material

Aluminium

Flammability

N/A

Shape

N/A

Mounting

N/A

Feature

N/A

Series

1556

Downloads

1556CPL

90.09 KB
