1557FA2BK

160 × 160 × 70 mm

Material: Polycarbonate

Category: All Products, General Purpose Plastic

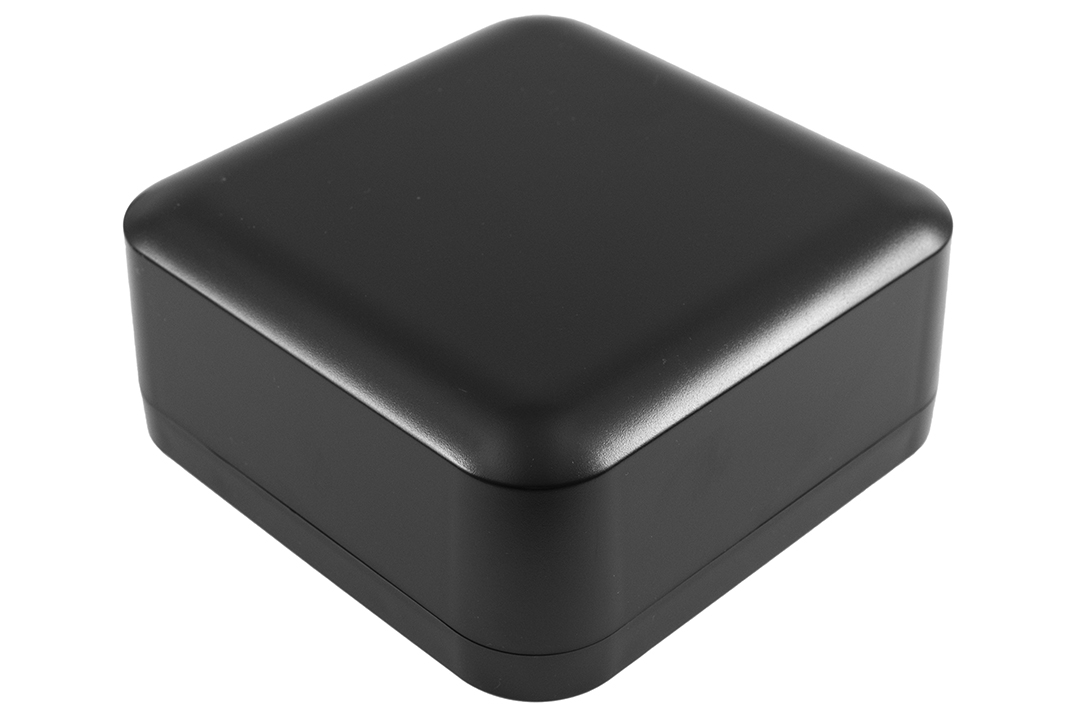

Waterproof PC Wallmount Enclosure, 160 x 160 x 70
£28.53

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

Key Features:

  • Ideally suited for mounting printed circuit boards.
  • Can be used in a tabletop configuration or two different Wall Mount configurations.
  • Rounded corners and face provide a more modern look while still offering superior water-tight ratings.
  • Available in black or grey ABS plastic or UL listed polycarbonate
  • ABS versions are moulded from general purpose material which carries a flammability rating of UL94-HB. ?For indoor use.
  • Polycarbonate versions are UV stabilized for outdoor use and carry a UL94-5VA flammability rating.? For indoor or outdoor use.
  • Polycarbonate versions are UL and UL 508A listed (File # E65324), NEMA 4, 4X, 6, 6P. ?ABS plastic versions are not UL listed.
  • Gasketed lid with two piece ?tongue & groove? construction provides protection against access of oil, dust and water.
  • Gasket is one piece made from high temperature, U.L. listed silicone.
  • ABS versions are designed to meet IP66
  • Polycarbonate versions are designed to meet IP68
  • Lid is secured with included M4 stainless steel machine screws which are threaded into corrosion resistant bushings for repetitive assembly & disassembly. All hardware is designed to avoid corrosion caused by harsh environments over time.
  • Aluminium inner panels are available as accessories.? Sold separately.? See table below.
Heavy Duty Wall Flange Mount (Mounting Feet Outward)
Flush Wall Mount (Mounting Feet as Keyhole Slots)
Desktop / Tabletop (Rubber Feet Included)

Technical

Dimensions 160 × 160 × 70 mm
Colour

Black

Height

70

Width

160

Length

160

IP Rating

IP68

Manufacturer

Hammond

Material

Polycarbonate

Flammability

UL94-5VA

Shape

Rectangular/Square, Rounded Design

Mounting

Free Standing, Pole Mount, Wall Mount

Feature

N/A

Series

1557

Downloads

1557FA2BK-2

1.21 MB
