1590ZGRP162BK

260 × 160 × 90 mm

Material: Polyester

Category: All Products, Diecast & Metal

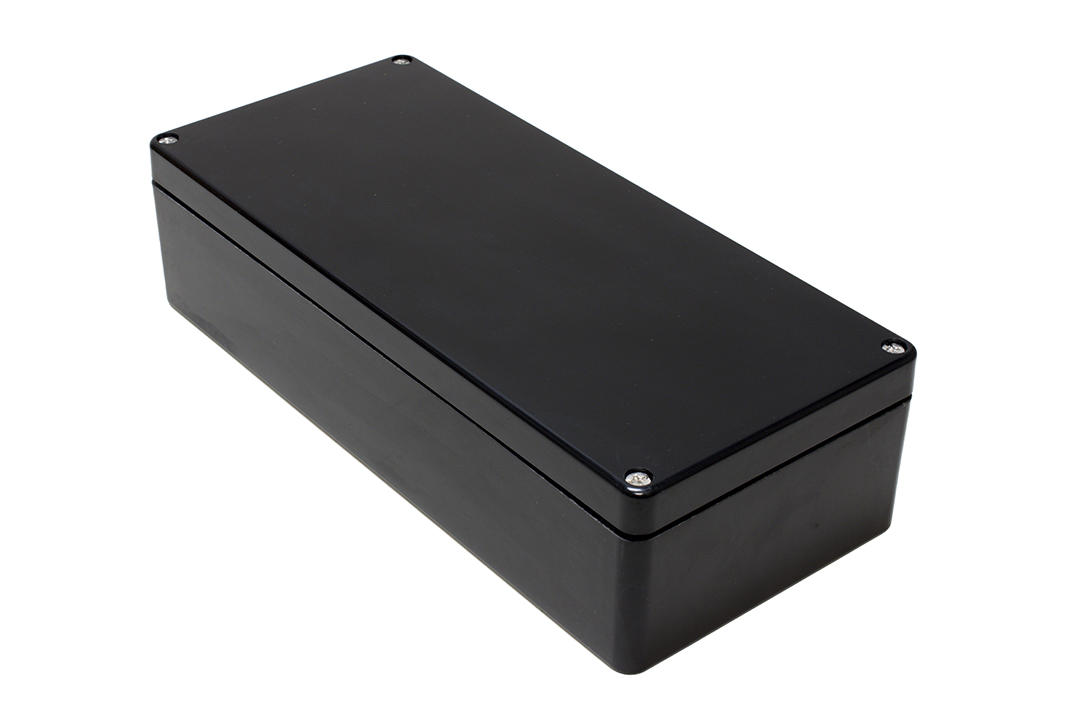

Waterproof GRP Enclosure, 260x160x160, Black
£73.06

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.







ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.









Enquire Now

Product Details

Key Features:

  • Moulded from a black, glass reinforced polyester. Smooth finish.
  • Includes gasketed lid with two piece ?tongue & groove? construction.
  • Heavy duty, thick wall design.
  • North American Mark of Safety – C UL & UL listed. Industrial Control Panel Enclosure Certified to NEMA 4, 4X standards (UL 508A) – File #E65324 and IP66 Rated
  • Enclosures have an impact rating of IK09 in conformity with IEC 62208 and IEC 62262.
  • Lid contains self captivated stainless steel screws.
  • Gasket is silicone.? Heat resistance 100 degrees C, cold -40 degree C.
  • Easy Wall Mounting via ?through box – blind hole? construction, outside of the gasket protection (see photos below).
  • Internal mounting shelf & bonding / mounting nuts moulded in (see ?open? photos or drawings for more details).
  • Optional 16 gauge, galvanized steel inner panels available (see drawings for details and part number listing below).

Technical

Dimensions 260 × 160 × 90 mm
Colour

Black

Height

90

Width

160

Length

260

IP Rating

IP66

Manufacturer

Hammond

Material

Polyester

Flammability

N/A

Shape

Rectangular/Square

Mounting

Free Standing, Pole Mount, Wall Mount

Feature

N/A

Series

1590Z

Downloads

1590ZGRP162BK-2

353.63 KB
