1590ZGRP253BK
405 × 400 × 120 mm
Material: Polyester
Category: All Products, Diecast & Metal

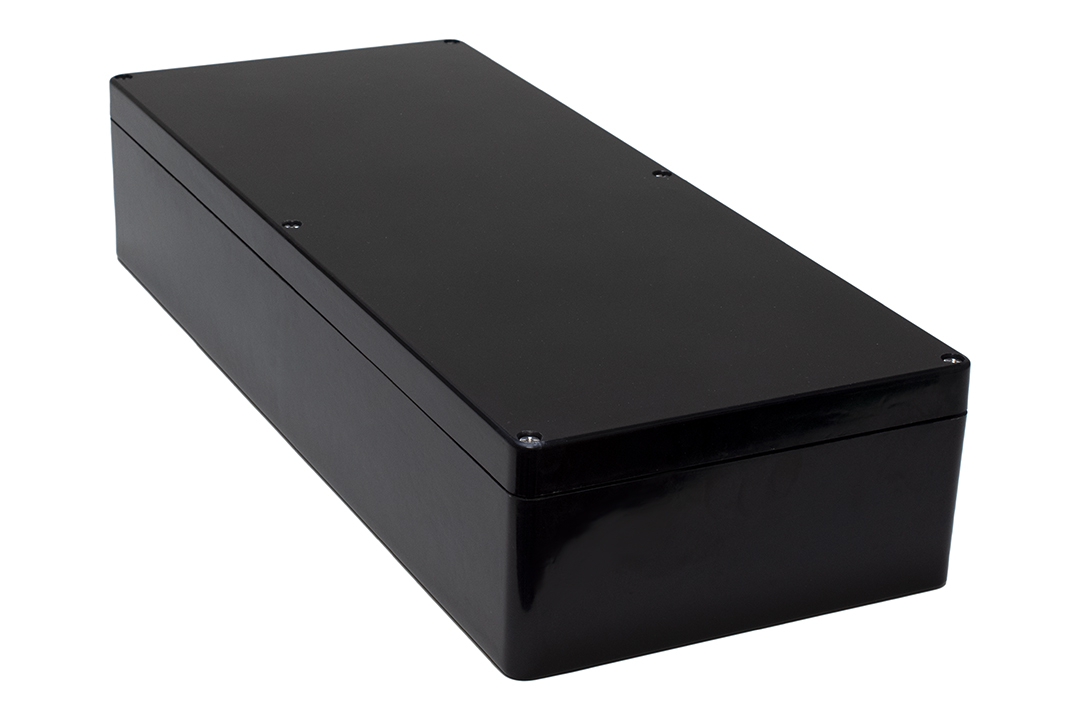

Waterproof GRP Enclosure, 405x400x, Black
£172.12
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
Key Features:
- Moulded from a black, glass reinforced polyester. Smooth finish.
- Includes gasketed lid with two piece ?tongue & groove? construction.
- Heavy duty, thick wall design.
- North American Mark of Safety – C UL & UL listed. Industrial Control Panel Enclosure Certified to NEMA 4, 4X standards (UL 508A) – File #E65324 and IP66 Rated
- Enclosures have an impact rating of IK09 in conformity with IEC 62208 and IEC 62262.
- Lid contains self captivated stainless steel screws.
- Gasket is silicone.? Heat resistance 100 degrees C, cold -40 degree C.
- Easy Wall Mounting via ?through box – blind hole? construction, outside of the gasket protection (see photos below).
- Internal mounting shelf & bonding / mounting nuts moulded in (see ?open? photos or drawings for more details).
- Optional 16 gauge, galvanized steel inner panels available (see drawings for details and part number listing below).
Technical
| Dimensions | 405 × 400 × 120 mm |
|---|---|
| Colour | Black |
| Height | 120 |
| Width | 400 |
| Length | 405 |
| IP Rating | IP66 |
| Manufacturer | Hammond |
| Material | Polyester |
| Flammability | N/A |
| Shape | Rectangular/Square |
| Mounting | Free Standing, Pole Mount, Wall Mount |
| Feature | N/A |
| Series | 1590Z |
