BIM2000/10-WH/WH

75 × 50 × 27 mm

WH/WH, 2000 Series General Purpose ABS Enclosure, White, 75x50x27mm
£1.54

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.









Enquire Now

Product Details

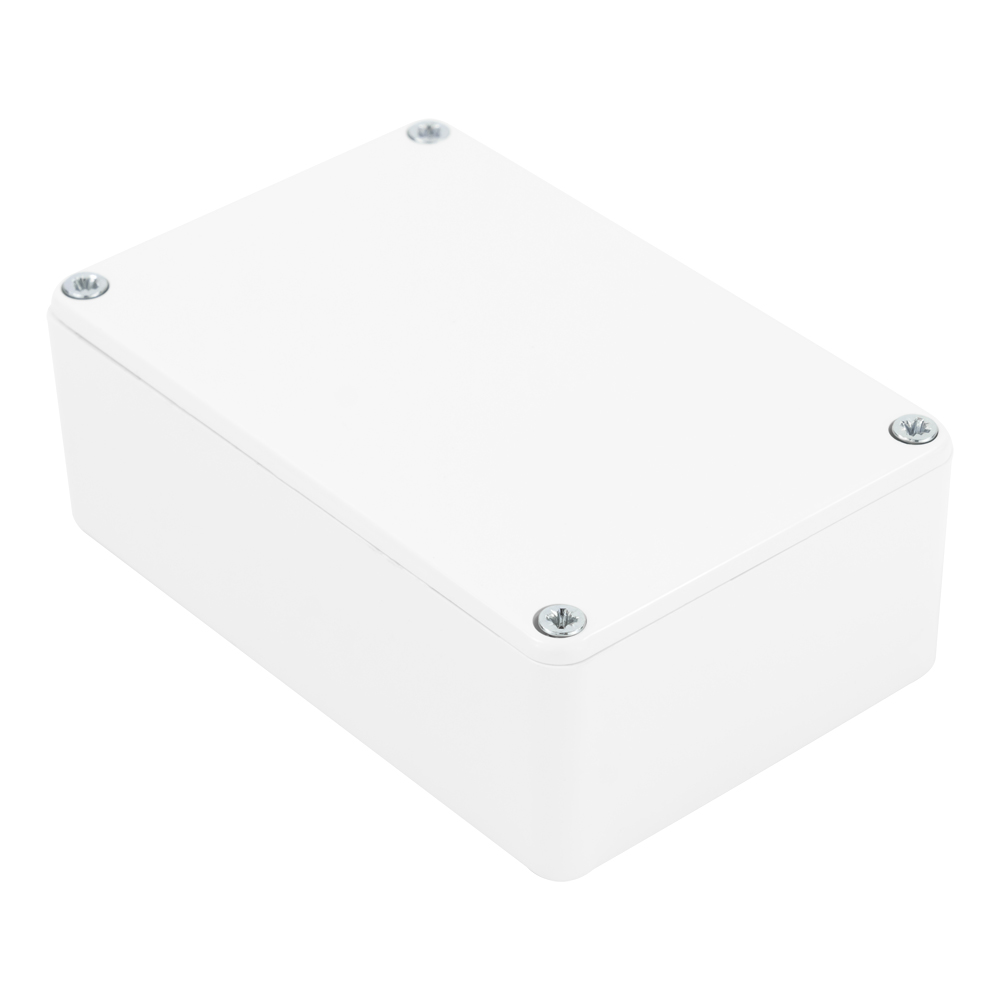

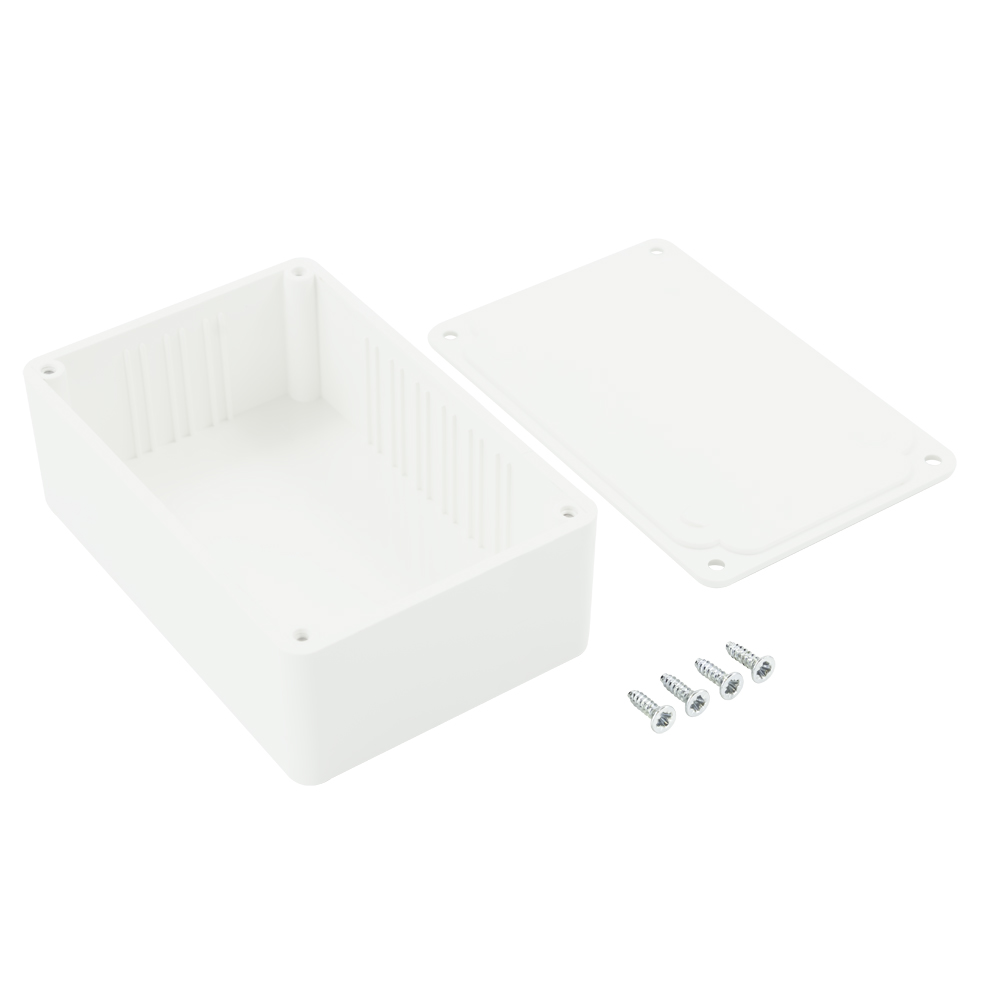

BIM2000/10-WH/WH, 2000 Series General Purpose ABS Enclosure, White, 75x50x27mm

Multi-purpose electronics enclosure suitable for OEM manufacturing, IoT designs and industrial technology. This UK manufactured enclosure is moulded in UL94-HB ABS.

Extensive range of electronic enclosures with ABS lid, designed for a broad range of applications
Brass inserts in base for repetitive removal of the lid (except for 2000 or 2008 sizes)
High gloss polished finish
Excellent properties for machining
Integral mounting guides to accept 1.6mm PCBs
Available in other colours on request (subject to MOQ)
2000 series has been designed to meet the requirements of IP54
Electronics enclosure moulded from high impact ABS UL94-HB Material
Deep Profile, EMC/RFI, flanged or lugged lid enclosures available
Customise your BIM enclosure using our digital printing service

Technical

Dimensions 75 × 50 × 27 mm
Colour

White

Height

27

Width

50

Length

75

IP Rating

IP54

Manufacturer

CamdenBoss

Material

ABS

Flammability

UL94-HB

Shape

Rectangular / Square

Mounting

Wall Mount

Feature

N/A

Series

2000

Downloads

BIM2000_series_D

1.51 MB

BIM2000_10-WH_WH

109.37 KB
