BIM2001/11-ORG/ORG
85 × 56 × 39 mm
Material: ABS
Category: All Products, General Purpose Plastic
ORG/ORG, 2000 Series General Purpose ABS Enclosure, Orange, 85x56x39mm
£2.18
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

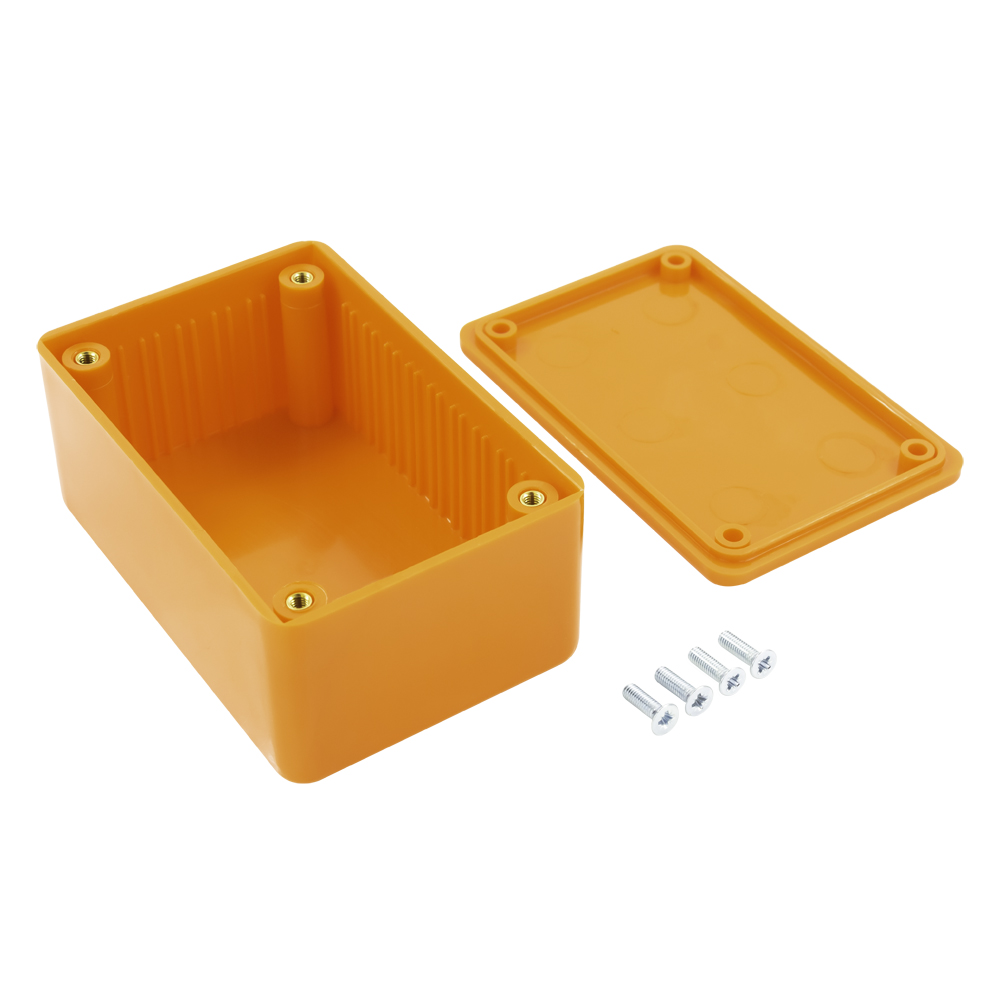

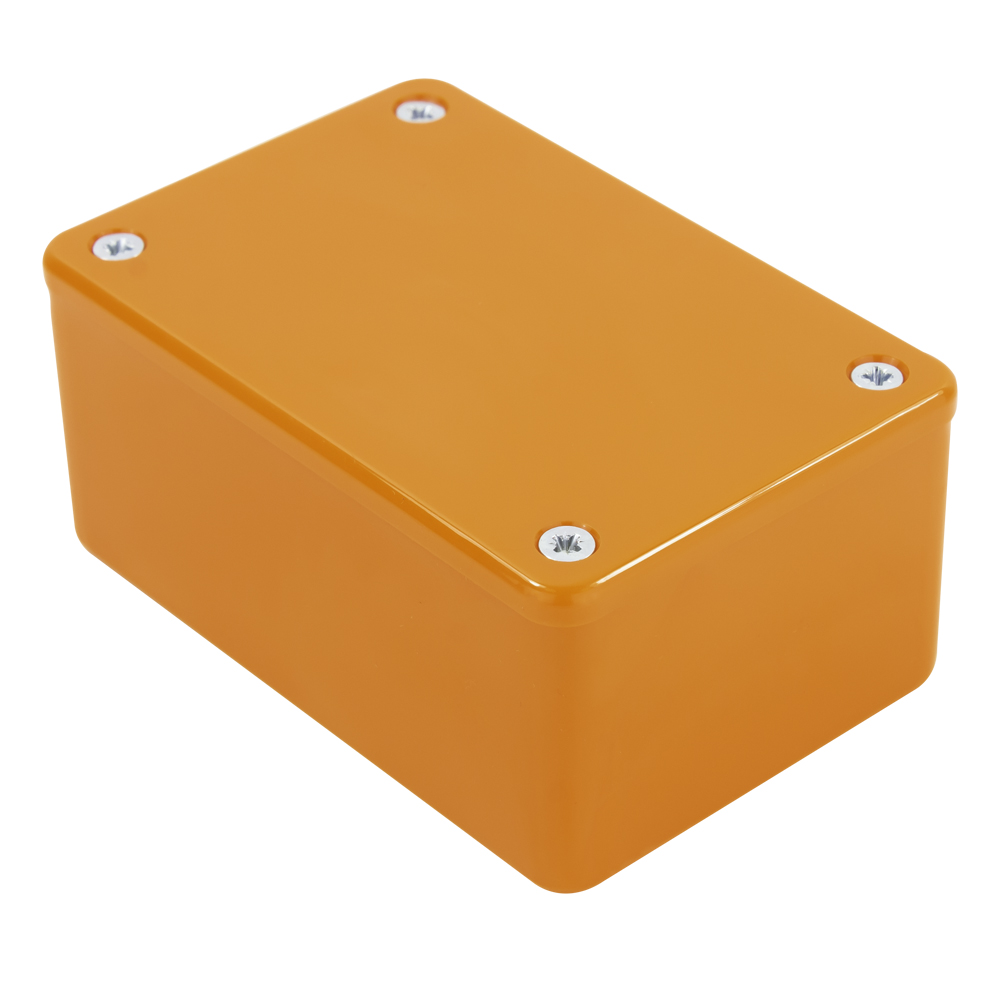

BIM2001/11-ORG/ORG, 2000 Series General Purpose ABS Enclosure, Orange, 85x56x39mm
Multi-purpose electronics enclosure suitable for OEM manufacturing, IoT designs and industrial technology. This UK manufactured enclosure is moulded in UL94-HB ABS.
Extensive range of electronic enclosures with ABS lid, designed for a broad range of applications
Brass inserts in base for repetitive removal of the lid (except for 2000 or 2008 sizes)
High gloss polished finish
Excellent properties for machining
Integral mounting guides to accept 1.6mm PCBs
Available in other colours on request (subject to MOQ)
2000 series has been designed to meet the requirements of IP54
Electronics enclosure moulded from high impact ABS UL94-HB Material
Deep Profile, EMC/RFI, flanged or lugged lid enclosures available
Customise your BIM enclosure using our digital printing service
Technical
| Dimensions | 85 × 56 × 39 mm |
|---|---|
| Colour | Orange |
| Height | 39 |
| Width | 56 |
| Length | 85 |
| IP Rating | IP54 |
| Manufacturer | CamdenBoss |
| Material | ABS |
| Flammability | UL94-HB |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | N/A |
| Series | 2000 |
