Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
BIM2003/13-EMI/RFI
112 × 62 × 31 mm
Material: ABS
Category: All Products, General Purpose Plastic
EMI/RFI, 2000 Series EMC Shielded ABS Enclosure, Graphite, 112x62x31mm
£9.35
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

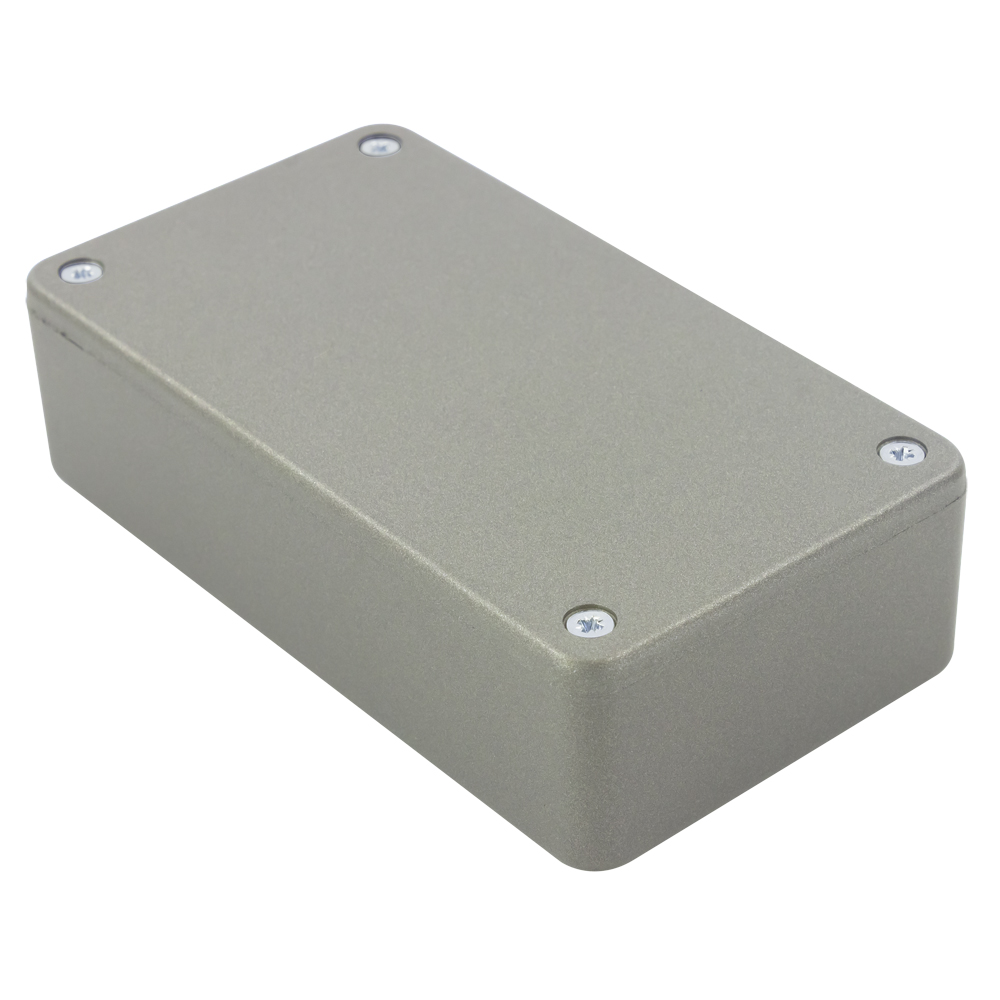

BIM2003/13-EMI/RFI, 2000 Series EMC Shielded ABS Enclosure, Graphite, 112x62x31mm
EMI/RFI shielded electronics enclosure for sensitive electronic devicess. This UK manufactured enclosure is moulded in UL94-HB ABS.
range of enclosures with conductive coating for enhanced electro-magnetic compatibility (EMC)

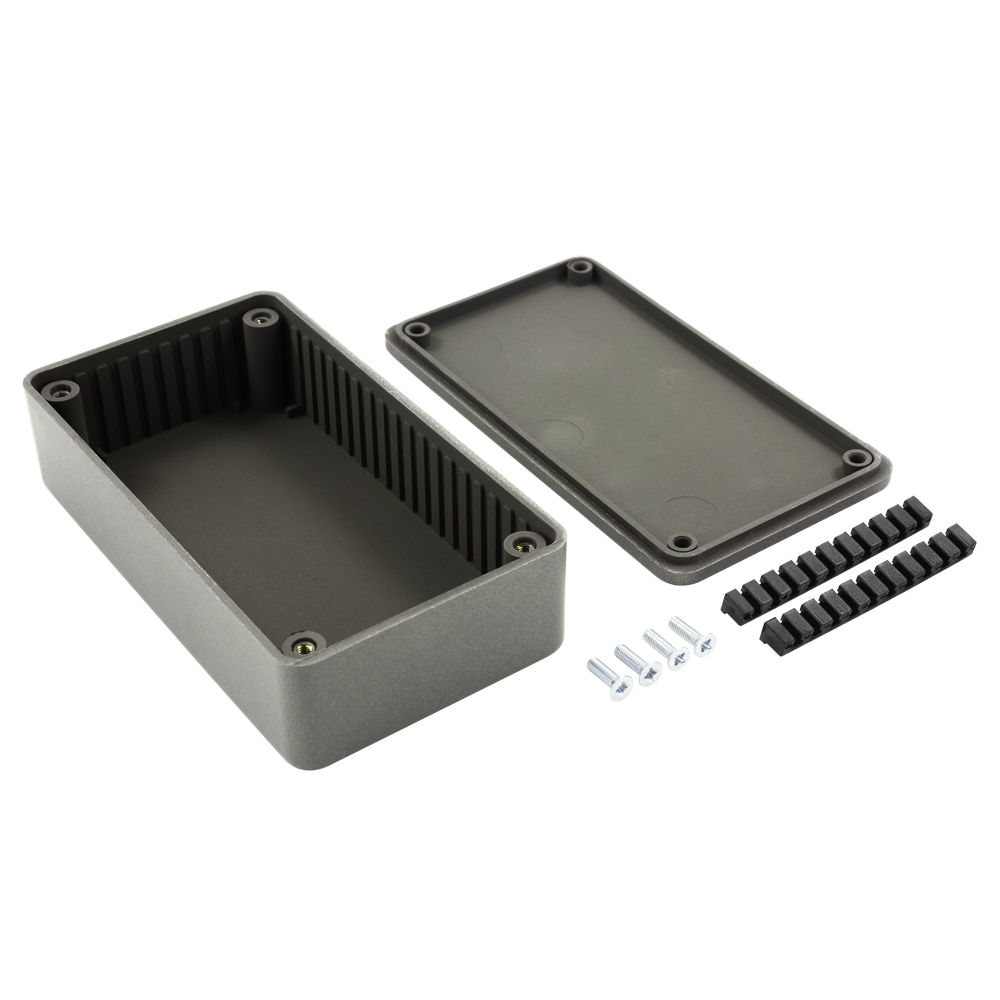

Lid and Base moulded in ABS
Graphite grey paint finish
Conductive coating
Brass inserts in base for repetitive removal of the lid (except for 2000 or 2008 sizes)
Excellent properties for machining
Integral mounting guides to accept 1.6mm PCBs
2000 series has been designed to meet the requirements of IP54
General purpose enclosures, deep profile, flanged or lugged lid enclosures available
Customise your BIM enclosure using our digital printing service
Technical
| Dimensions | 112 × 62 × 31 mm |
|---|---|
| Colour | Grey |
| Height | 31 |
| Width | 62 |
| Length | 112 |
| IP Rating | IP54 |
| Manufacturer | CamdenBoss |
| Material | ABS |
| Flammability | UL94-HB |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | RF Shielded |
| Series | 2000 |
Downloads
BIM2003_13-EMI_RFI
195.53 KB
