BIM2004/14-EMI/RFI

120 × 65 × 40 mm

Material: ABS

Category: All Products, General Purpose Plastic

EMI/RFI, 2000 Series EMC Shielded ABS Enclosure, Graphite, 120x65x40mm
£9.43

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

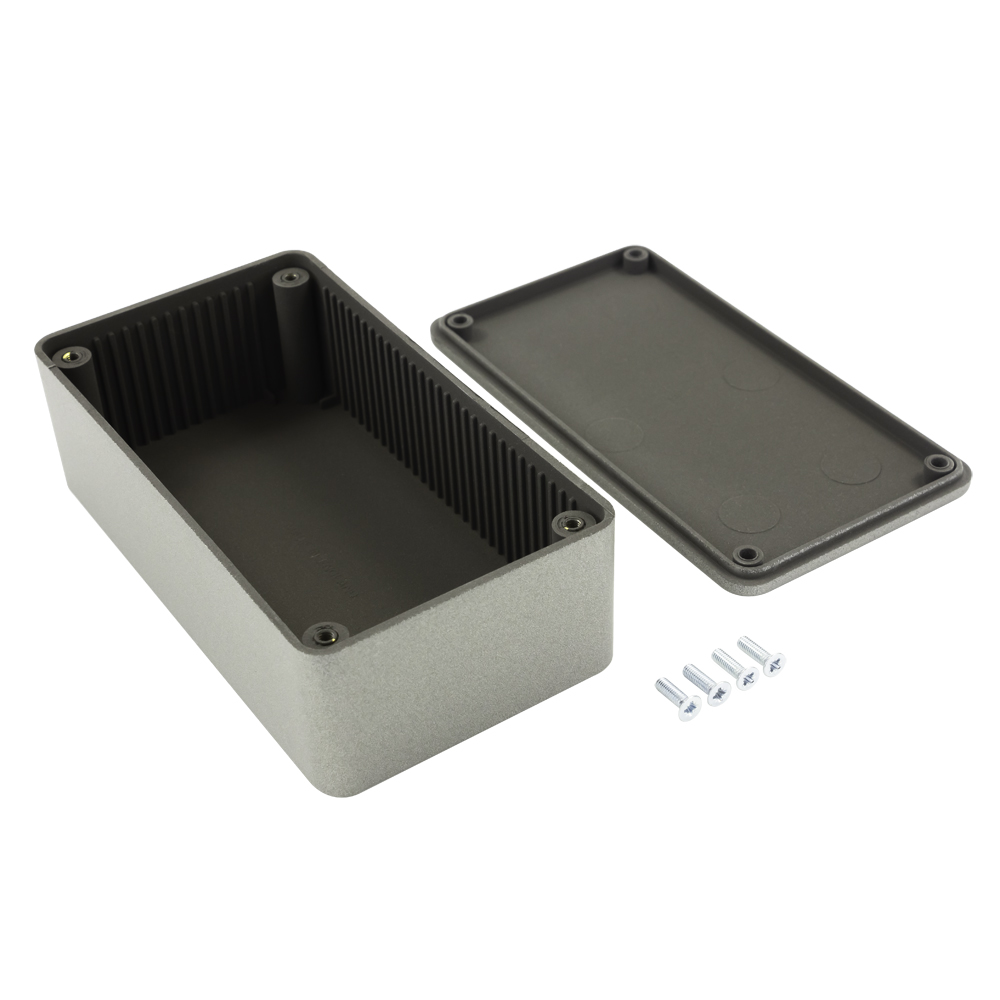

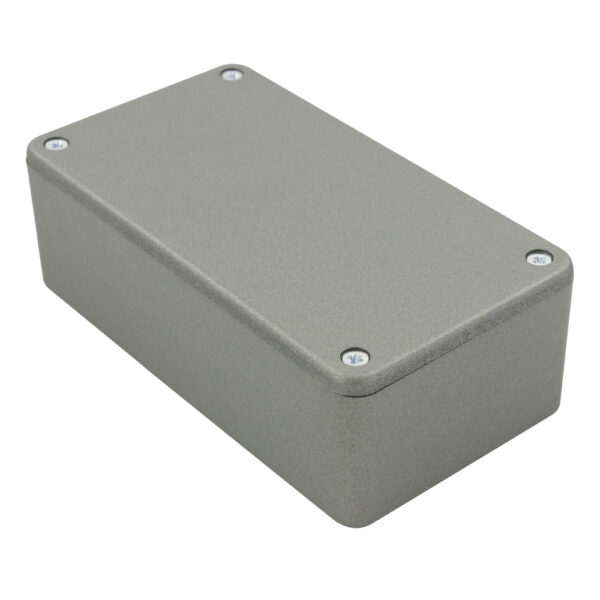

BIM2004/14-EMI/RFI, 2000 Series EMC Shielded ABS Enclosure, Graphite, 120x65x40mm

EMI/RFI shielded electronics enclosure for sensitive electronic devicess. This UK manufactured enclosure is moulded in UL94-HB ABS.

range of enclosures with conductive coating for enhanced electro-magnetic compatibility (EMC)
Lid and Base moulded in ABS
Graphite grey paint finish
Conductive coating
Brass inserts in base for repetitive removal of the lid (except for 2000 or 2008 sizes)
Excellent properties for machining
Integral mounting guides to accept 1.6mm PCBs
2000 series has been designed to meet the requirements of IP54
General purpose enclosures, deep profile, flanged or lugged lid enclosures available
Customise your BIM enclosure using our digital printing service

Technical

Dimensions 120 × 65 × 40 mm
Colour

Grey

Height

40

Width

65

Length

120

IP Rating

IP54

Manufacturer

CamdenBoss

Material

ABS

Flammability

UL94-HB

Shape

Rectangular/Square

Mounting

Free Standing

Feature

RF Shielded

Series

2000

Downloads

BIM2000_series_D

1.51 MB

BIM2004_14-EMI_RFI

176.64 KB
