BIM2005/25-BLK/BLK

150 × 80 × 76 mm

Material: ABS

Category: All Products, General Purpose Plastic

BLK/BLK, 2000 Series Deep Profile ABS Enclosure, Black, 150x80x76mm
£4.05

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

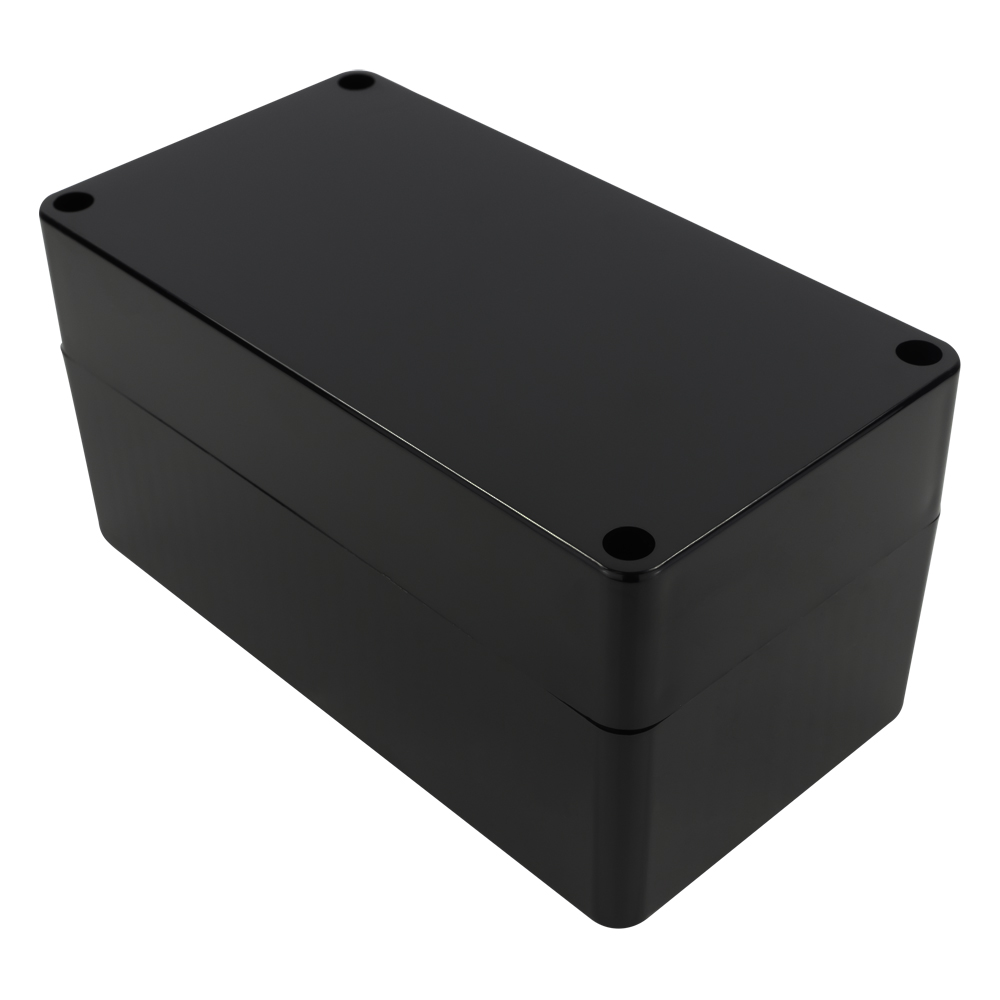

BIM2005/25-BLK/BLK, 2000 Series Deep Profile ABS Enclosure, Black, 150x80x76mm

Multi-purpose electronics enclosure suitable for deep internal requirements for industrial technology. This UK manufactured enclosure is moulded in UL94-HB ABS.

Multi-purpose enclosures for application where extra height is required
The deep profile 2000 series electronic enclosure provides increased internal volume

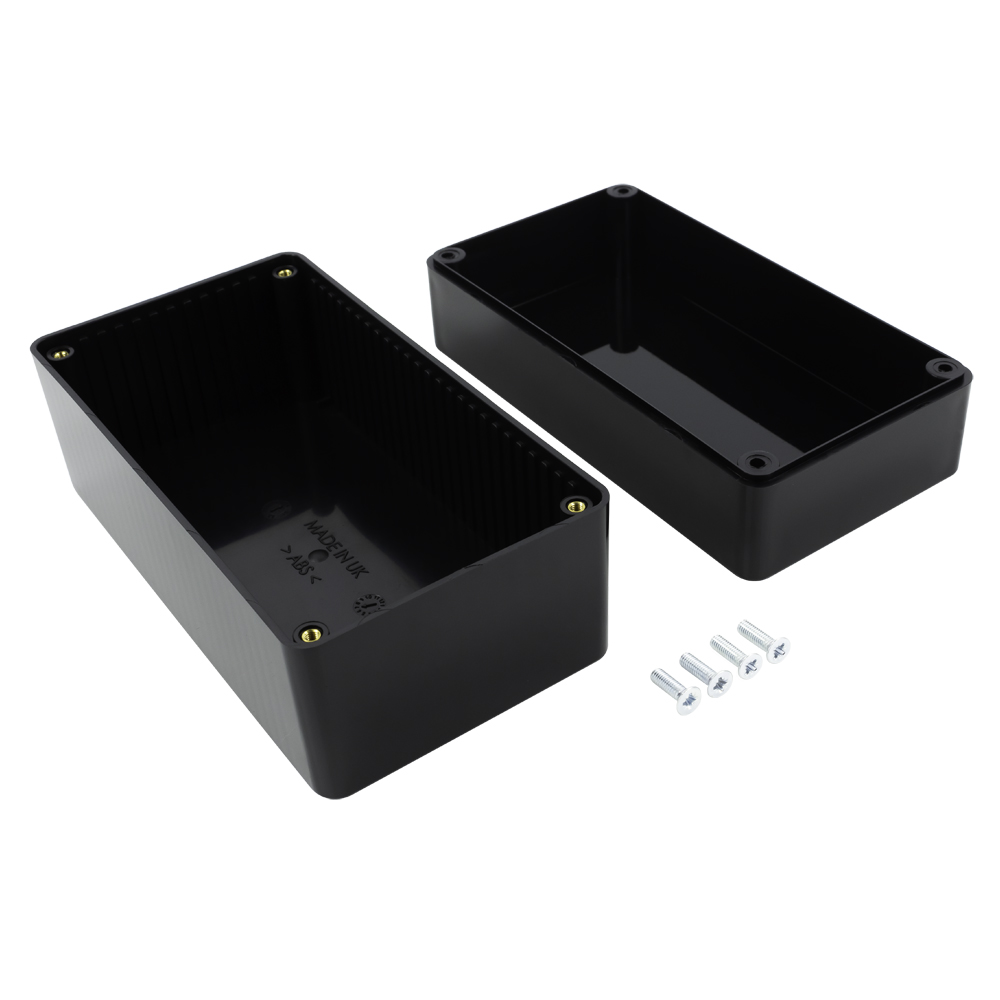

Deep profile Lid and base moulded in ABS
Brass inserts in base for repeated removal of the lid
Excellent properties for machining
Integral mounting guides in base to accept 1.6mm PCBs
Available in other colours on request (subject to MOQ)
2000 series has been designed to meet the requirements of IP54
General purpose enclosures, EMC/RFI, flanged or lugged lid enclosures available
Customise your BIM enclosure using our digital printing service

Technical

Dimensions 150 × 80 × 76 mm
Colour

Black

Height

76

Width

80

Length

150

IP Rating

IP54

Manufacturer

CamdenBoss

Material

ABS

Flammability

UL94-HB

Shape

Rectangular/Square

Mounting

Free Standing

Feature

N/A

Series

2000

Downloads

BIM2000_series_D

1.51 MB

BIM2005_25-BLK_BLK

192.16 KB
