CBEAC-03-WH

130 × 80 × 45 mm

Easy Assembly Electronics Enclosure White
£2.83

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.









Enquire Now

Product Details

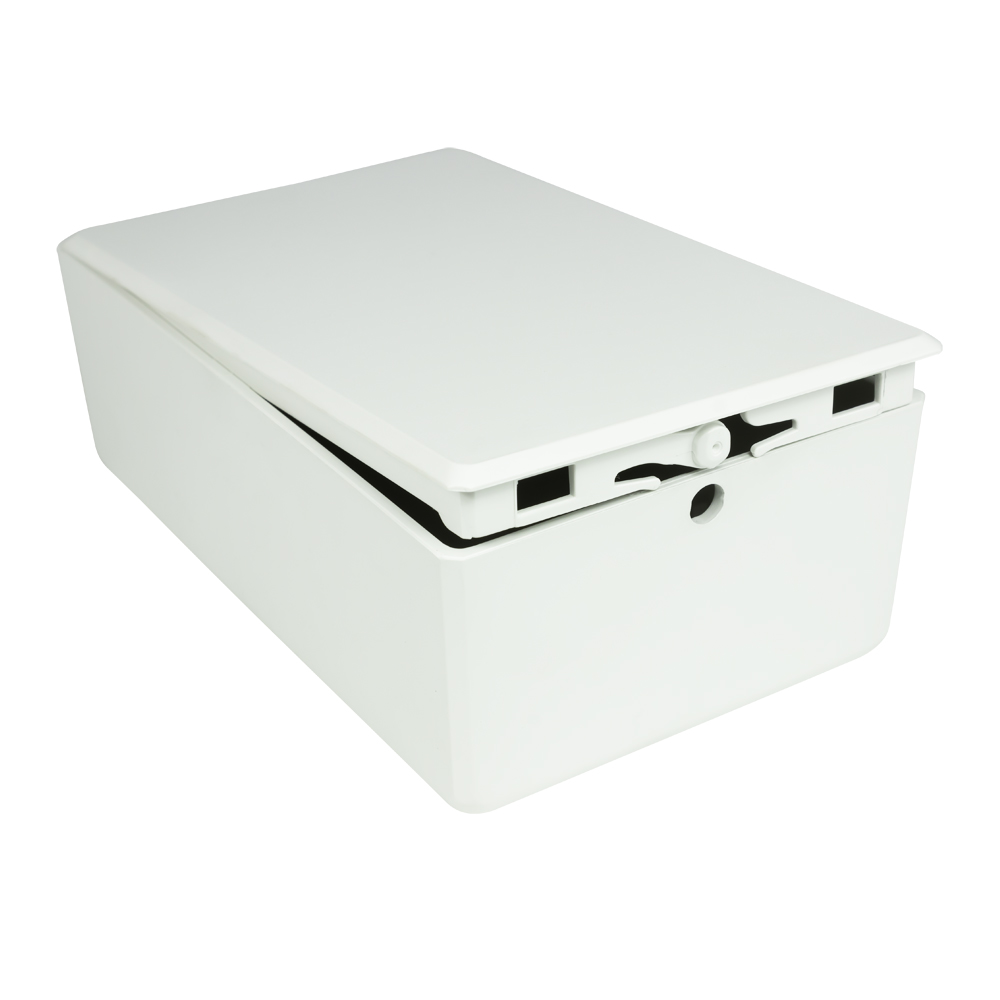

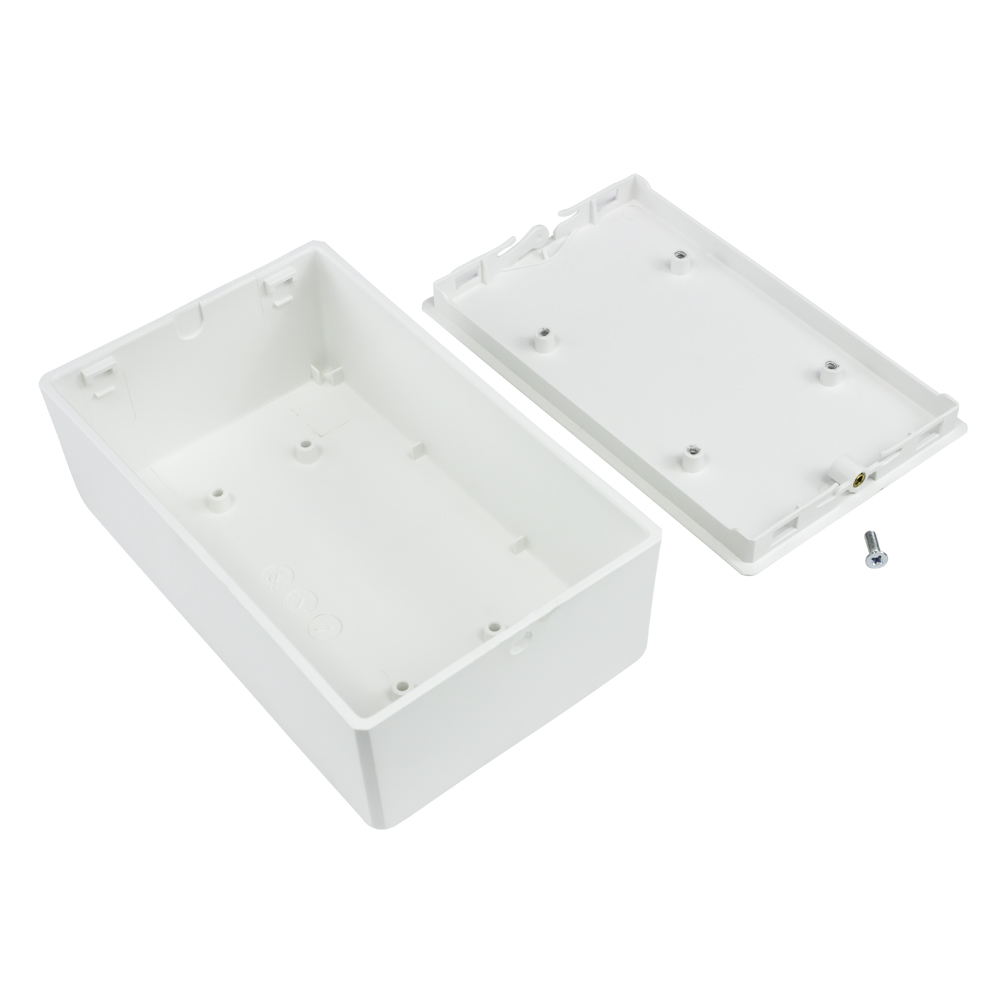

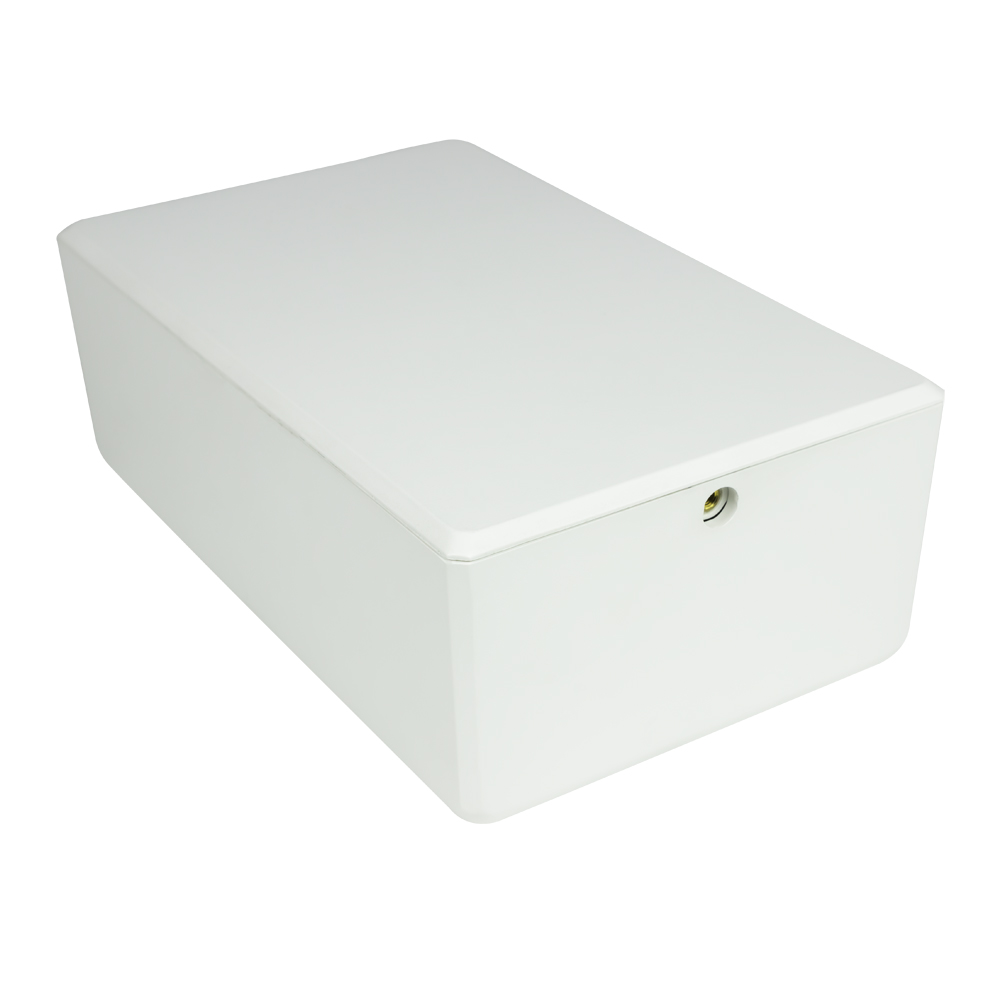

CBEAC-03-WH – Easy Assembly Electronics Enclosure White

Moulded in white UL94-V0 ABS and manufactured in the UK, the Easy Assembly Electronics Enclosure is a general purpose enclosure providing fast assembly using the dual action lid and drop fit PCB position. Edge to edge PCB maximises the internal space.

The Easy Assembly Electronics Enclosure, manufactured and designed in the UK, is changing the way we use enclosures. Innovative design features put this universal enclosure at the forefront of the industry as a premium quality, modern yet highly functional product. A unique, dual action lid and clip-in-points for your PCB, assists with reduced assembly time on the production line. The smooth finished housing is available in three colours and four sizes, with 2.5mm thick walls rated to UL94-V0, giving it a premium quality finish. Due to the edge-to-edge capability and fine textured walls, every side can be customised or modified. This enclosure really does give you value for money without compromise on quality or features.?



Technical

Dimensions 130 × 80 × 45 mm
Colour

White

Height

45

Width

80

Length

130

IP Rating

IP40

Manufacturer

CamdenBoss

Material

ABS

Flammability

UL94-V0

Shape

Rectangular / Square

Mounting

Free Standing

Feature

Easy Assembly

Series

CBEAC

Downloads

Easy Assembly Series Datasheet

651.06 KB

CBEAC-03-XX

139.48 KB
