CBHEX1-PI4-BK

146 × 130 × 45 mm

Hex-Box Raspberry Pi 4 Ready Enclosure, Black
£9.96

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.







ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.









Enquire Now

Product Details

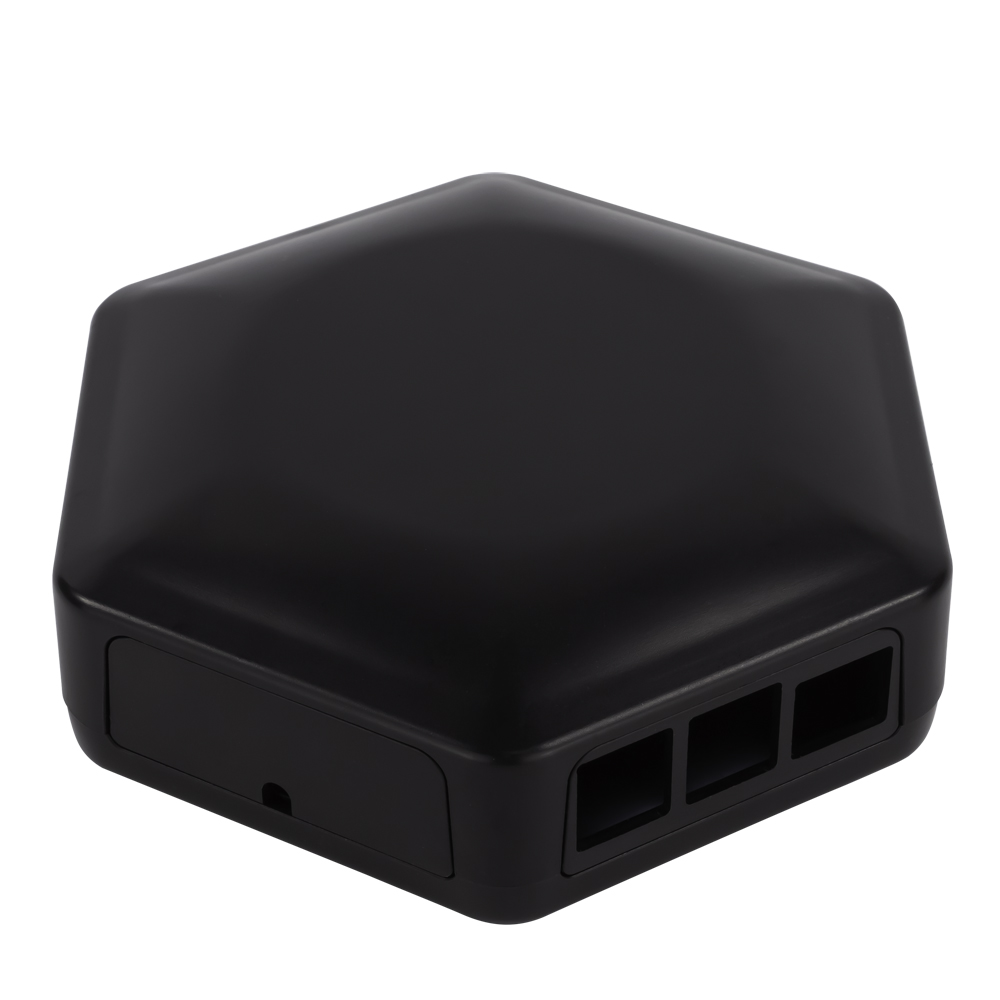

CBHEX1-PI4-BK – Hex-Box Raspberry Pi 4 Ready Enclosure, Black

Hex-Box Pi Ready Enclosure, Black, 146x130x45mm. This UK manufactured enclosure is made from 100% recyclable material and features seven self-retaining panels, two of which have been customised to accommodate Raspberry Pi boards. Need to surface mount your Pi 4 Make sure you check out the purpose-designed Wall Mount bracket, concealed to maintain a modern aesthetic.

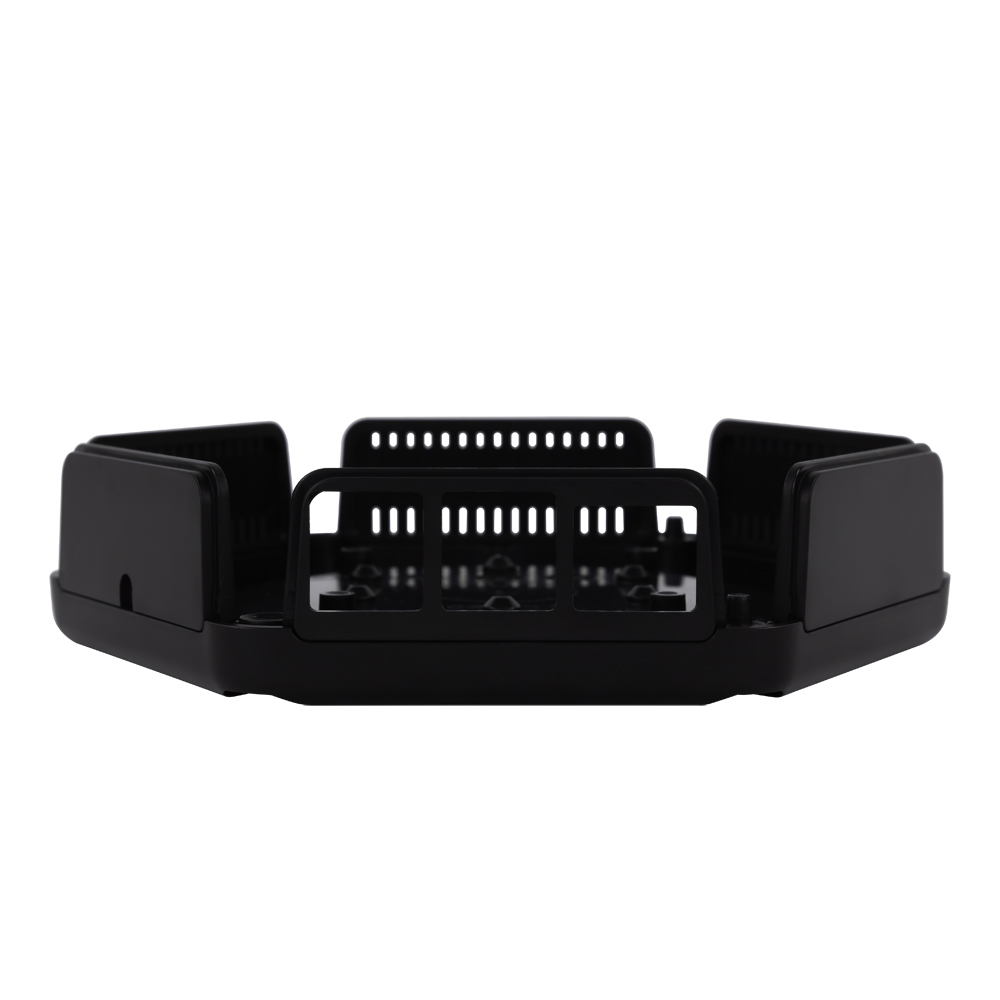

This UK manufactured Hex-Box Pi 4 Ready Enclosure has been designed with customisation and user flexibility at heart. The 100% recyclable housing features seven self-retaining panels, two of which have been customised to accommodate Raspberry Pi boards. The power cable panel and the remaining panels can be placed in your desired position. The design features and modern aesthetic create the perfect enclosure for Pi projects (when paired with the Wall Mount bracket) or desktops (when paired with the rubber feet), each sold separately. Raspberry Pi board not included.

Technical

Dimensions 146 × 130 × 45 mm
Colour

Black

Height

45

Width

130

Length

146

IP Rating

IP30

Manufacturer

CamdenBoss

Material

ABS

Flammability

UL94-V0

Shape

Hexagon

Mounting

Free Standing, Wall Mount

Feature

Vented

Series

HEX-BOX

Downloads

Hex-Box Pi series Datasheet

691.13 KB

CBHEX1-PI4-XX

326.77 KB
