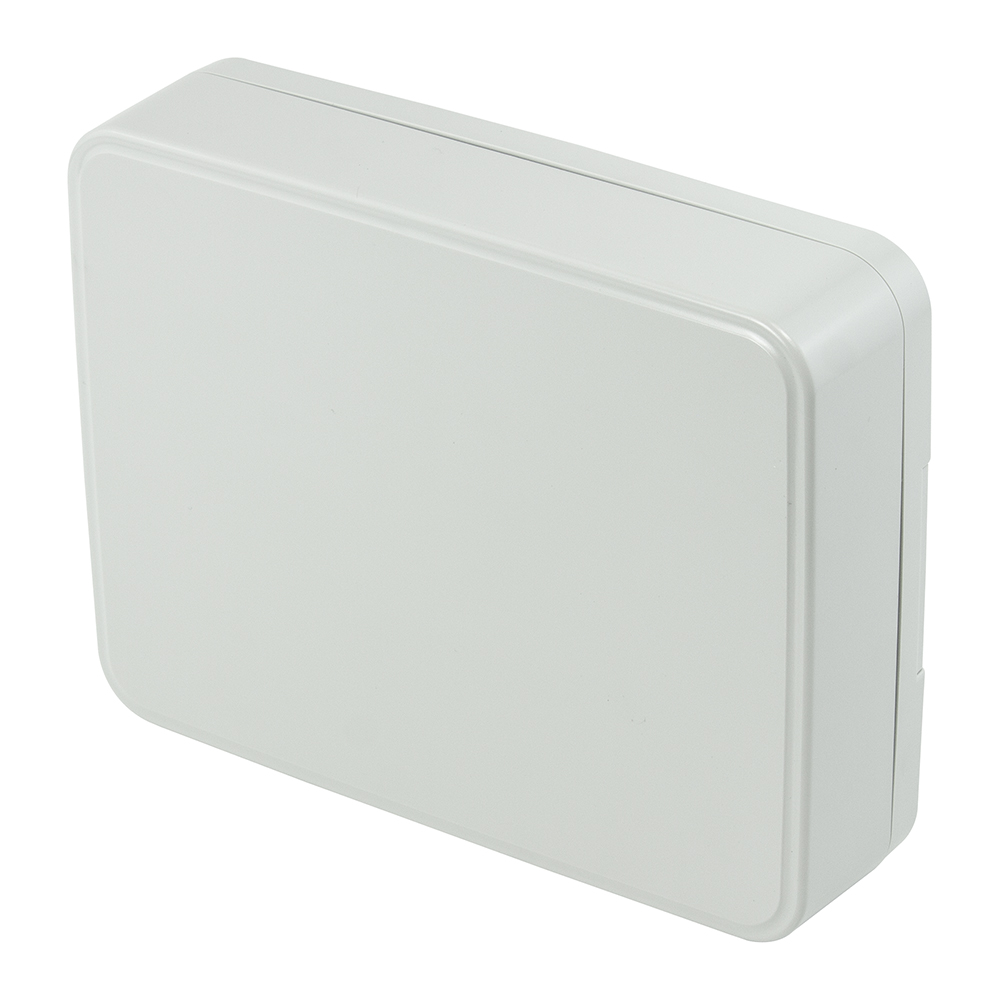

Node Series IP66/67 Wall and Pole Mounted Outdoor Sensor Box

The Node Series offers compact, stylish enclosures designed specifically for IoT devices, sensors, and edge equipment. With certified IP ratings (IP66/IP67), impact resistance (IK08), and durable, UV-stable, V0 flame-retardant polycarbonate construction, these low-profile units ensure reliable performance even outdoors. Easy installation with concealed wall mounting brackets and fixing screws maintains a neat appearance and secure application.

• Compact Box. Compact, low-profile design (40-45mm) in four sizes, perfect for slim IoT devices, smart sensors, and edge devices.
• Durable Material. Moulded from Polycarbonate (PC) material rated UL-94 V0 and UL-746 f1. Suitable for outdoor use with fire-safety, waterproofing, and UV-resistance.
• IP66 and IP67 Rating. Certified and tested in accordance with IEC 60529, rated for complete dust protection and waterproof against powerful jets and immersion up to 1 meter depth.
• IK07 Rating. Tested in accordance with EN60068, ensuring resistance against up to 2 joules of mechanical impact and shock.
• Concealed Fixing. Rear located screws for fixing base to lid to ensure concealed and secure mounting. Provides a clear, full-front face for a sleek look and maximum area for additional features or branding.

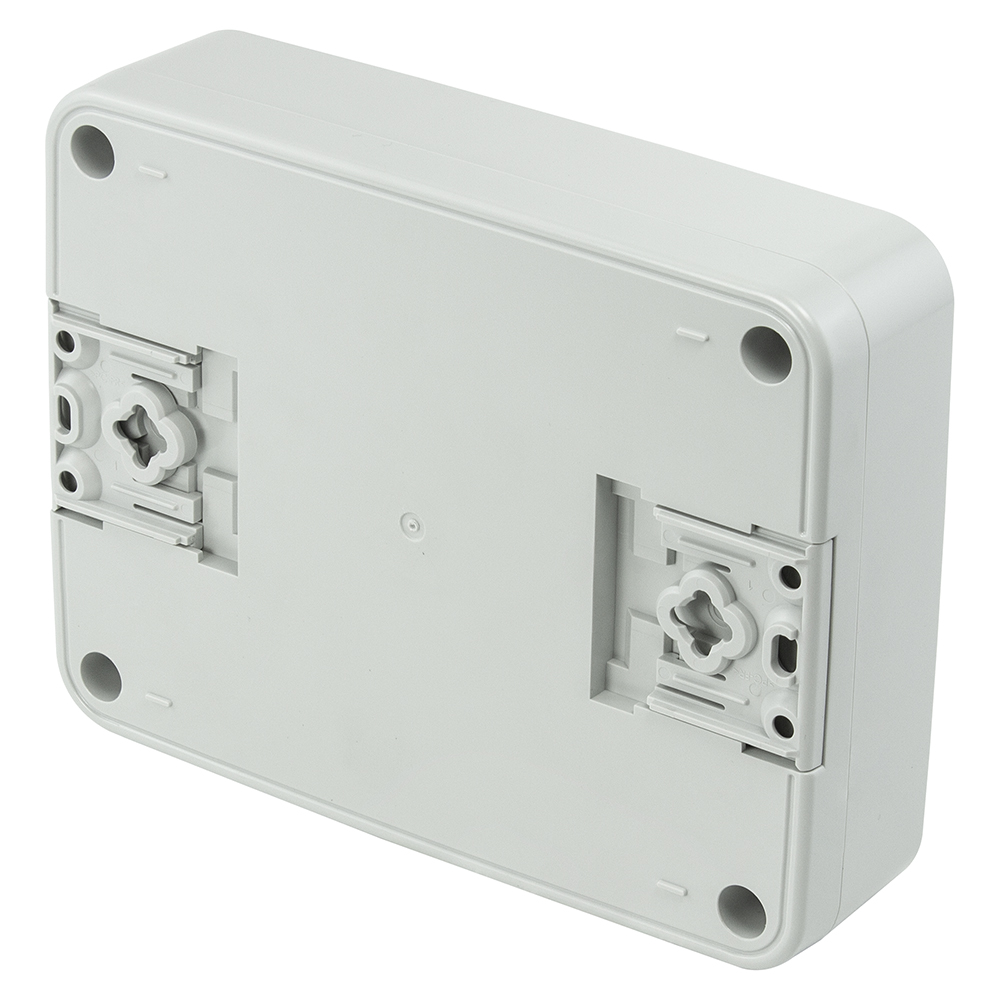

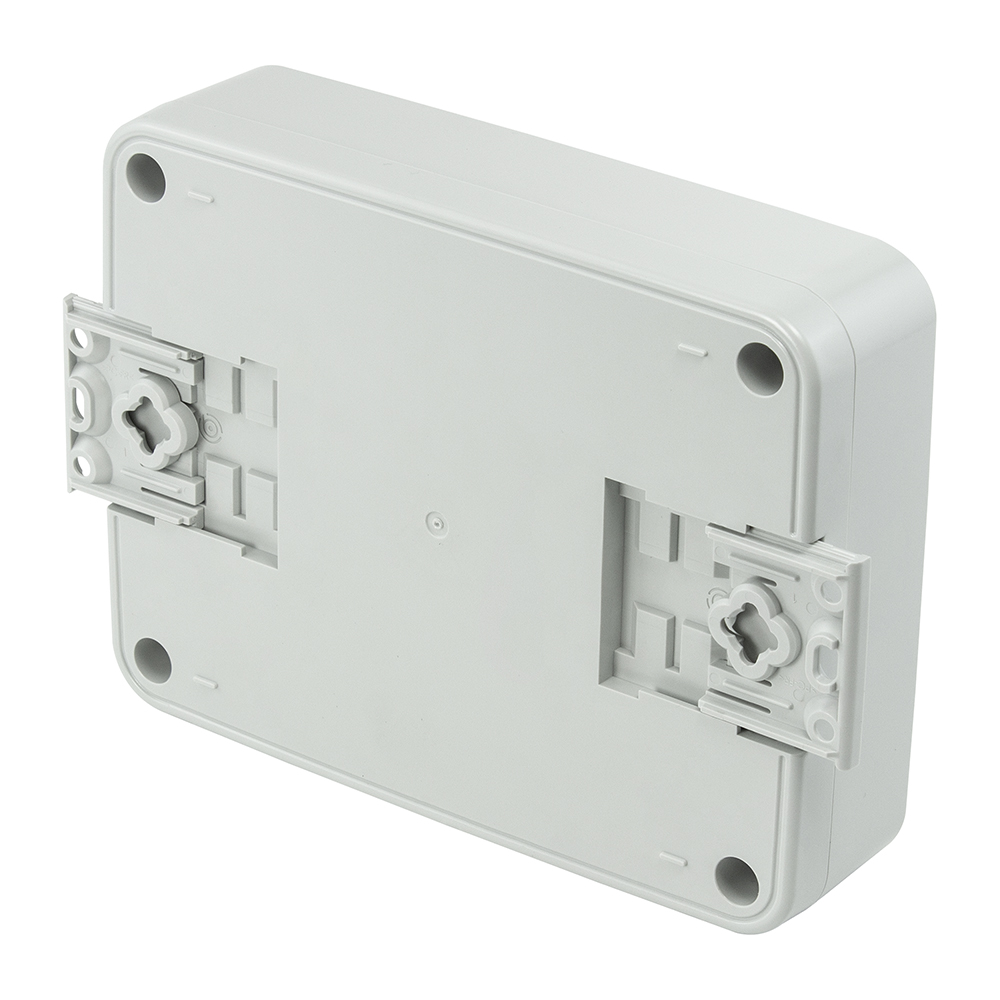

• Wall Mounting. Integrated bracket offers versatile surface mounting options including unique concealed mounting.
• Pole Mounting. Metal pole mounting bracket available that fixes to existing mounting bracket on base. Made from stainless steel for poles of 60mm diameter or larger.

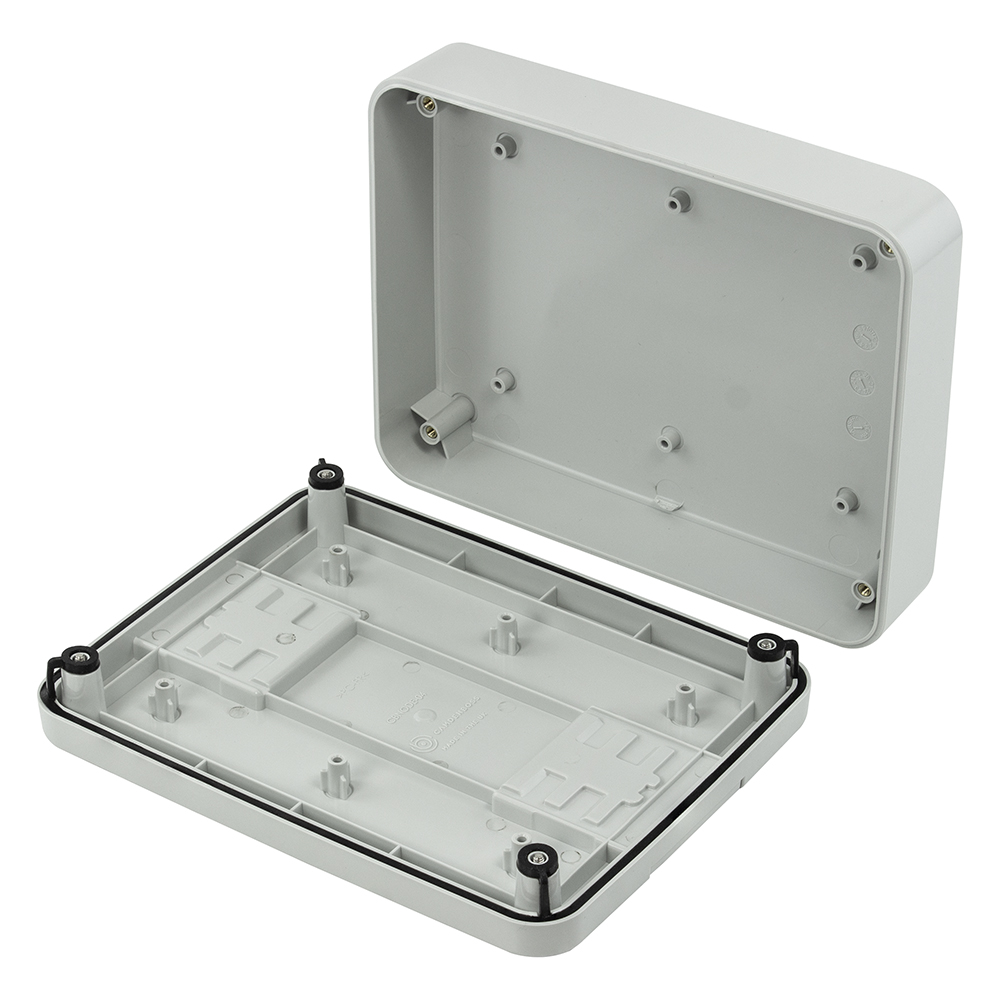

• PCB Mounting. Four (CBNODE-01) or Six (CBNODE-02, 03, 04) PCB mounting pillars inside the lid and base, suitable for 3mm thread forming screws and No. 4 self-tapping screws.
