CDE2130BK

140 × 175 × 52 mm

Material: ABS

Category: All Products, Hand-Held

21 Series IP67 Desktop Instrument Enclosure Size 30 Black
£24.83
Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

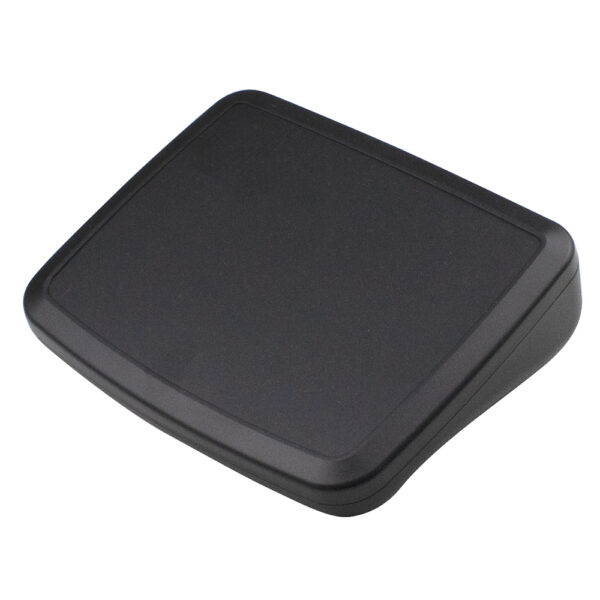

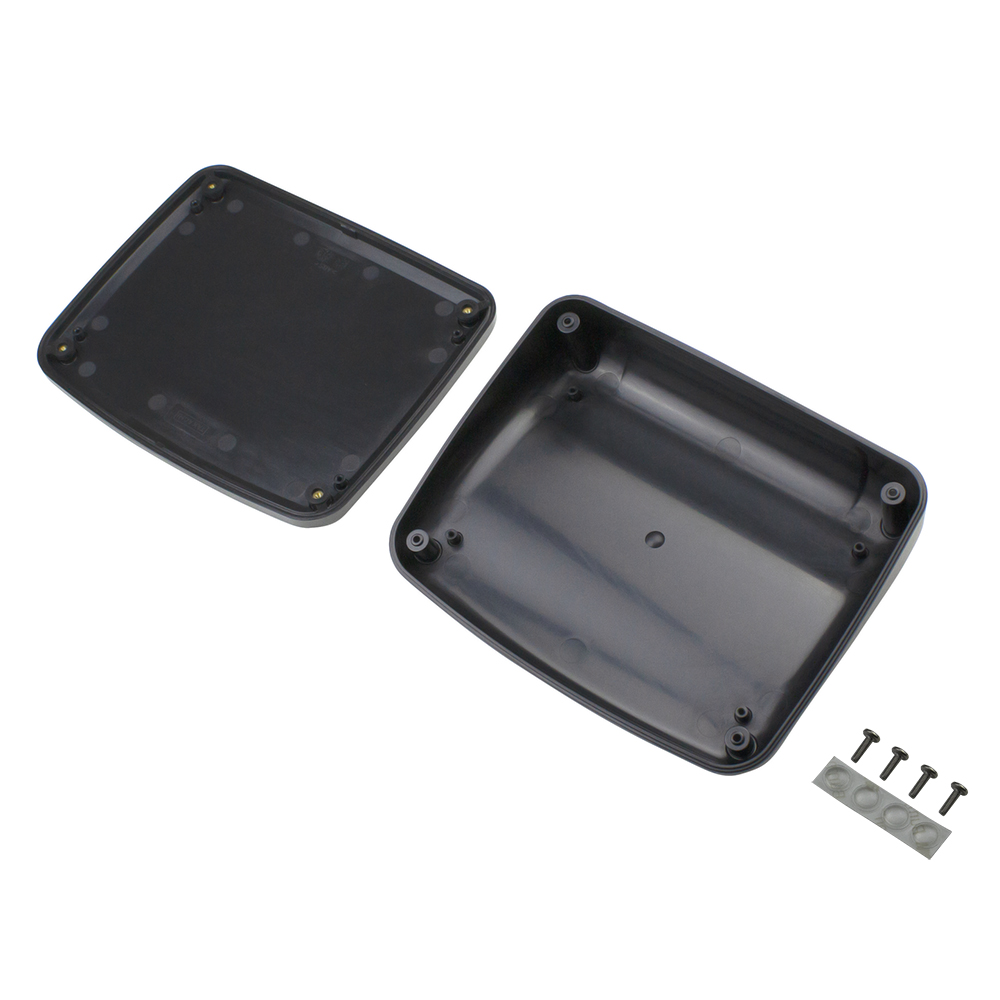

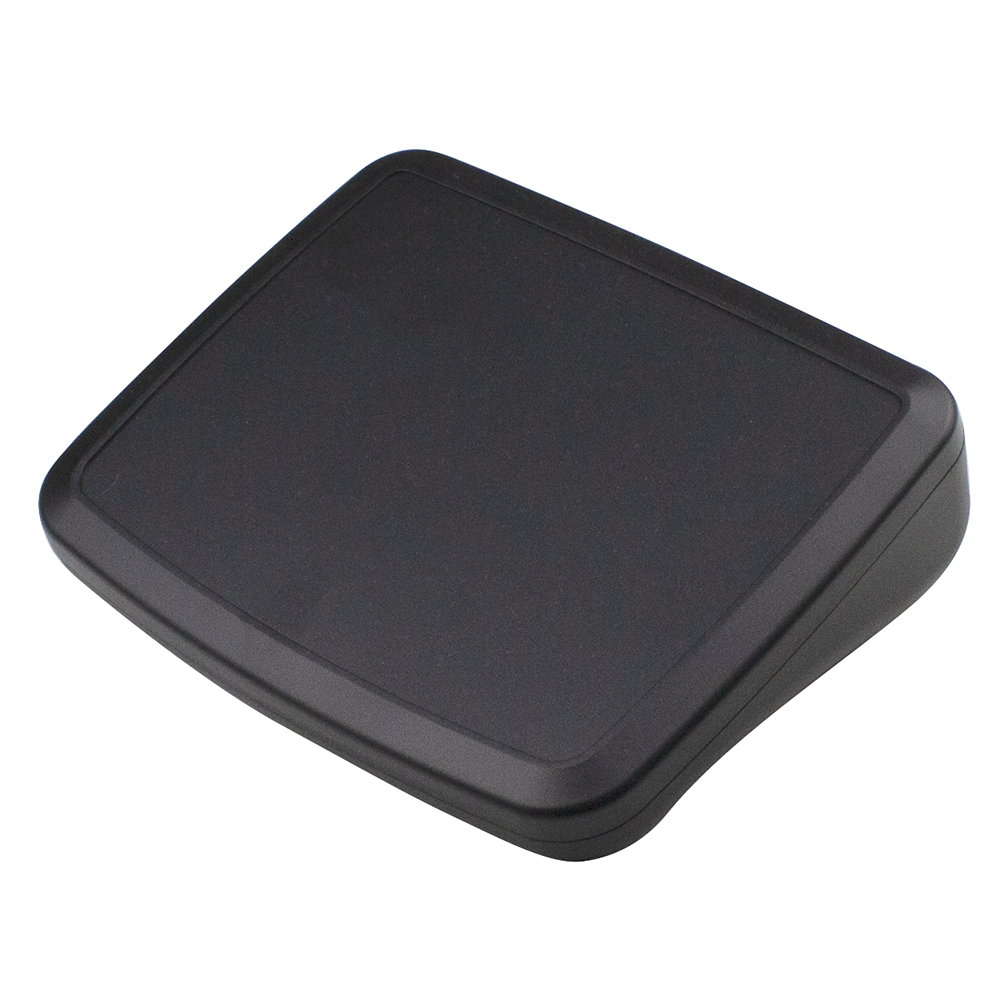

21 Series IP67 sloped electronic enclosure with a 13 degree angle, ideal for desktop and handheld electronics

  • Ergonomic design for desktop applications
  • Streamlined shape provides a comfortable grip for handheld applications
  • IP67 protection allows outdoor or indoor use susceptible to splashes
  • Recessed top face to accommodate membrane keypads and displays
  • Moulded in flame resistant ABS
  • Transparent self adhesive feet included
  • Available in black or off-white.
  • Optional inclined spacer available to aid mounting PCBs into case lower
  • Suitable for IoT and industry 4.0 applications/ sectors such as: Medical, industrial or marine

Technical

Dimensions 140 × 175 × 52 mm
Colour

Black

Height

52

Width

175

Length

140

IP Rating

IP67

Manufacturer

CamdenBoss

Material

ABS

Flammability

N/A

Shape

Rectangular/Square, Sloped Design

Mounting

Hand-Held

Feature

Recessed Lid

Series

21

Downloads

21 series IP67 desktop instrument case_D

952.56 KB
