CDE2130WH
140 × 175 × 52 mm
Material: ABS
Category: All Products, Hand-Held

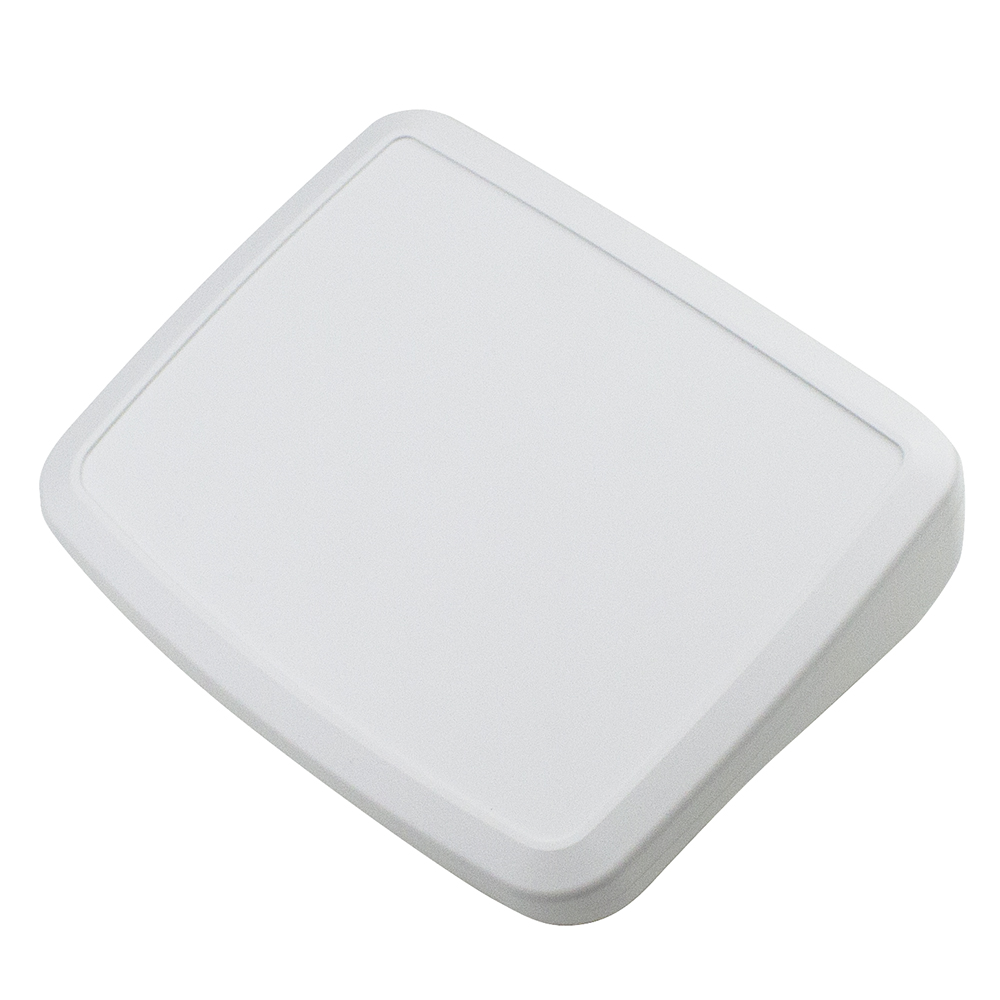

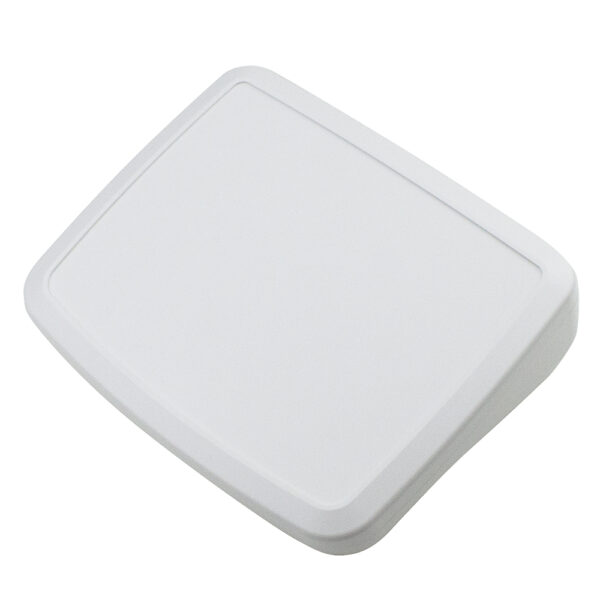

21 Series IP67 Desktop Instrument Enclosure Size 30 White
£24.83
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
21 Series IP67 sloped electronic enclosure with a 13 degree angle, ideal for desktop and handheld electronics
- Ergonomic design for desktop applications
- Streamlined shape provides a comfortable grip for handheld applications
- IP67 protection allows outdoor or indoor use susceptible to splashes
- Recessed top face to accommodate membrane keypads and displays
- Moulded in flame resistant ABS
- Transparent self adhesive feet included
- Available in black or off-white.
- Optional inclined spacer available to aid mounting PCBs into case lower
- Suitable for IoT and industry 4.0 applications/ sectors such as: Medical, industrial or marine
Technical
| Dimensions | 140 × 175 × 52 mm |
|---|---|
| Colour | White |
| Height | 52 |
| Width | 175 |
| Length | 140 |
| IP Rating | IP67 |
| Manufacturer | CamdenBoss |
| Material | ABS |
| Flammability | N/A |
| Shape | Rectangular/Square, Sloped Design |
| Mounting | Hand-Held |
| Feature | Recessed Lid |
| Series | 21 |
