CDIB/6/D2/KIT

90 × 106 × 114 mm

Material: Polycarbonate

Category: All Products, DIN Rail

DIN Rail High Profile Enclosure Kit with Open Top, 114x90x106.2mm
£6.21

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

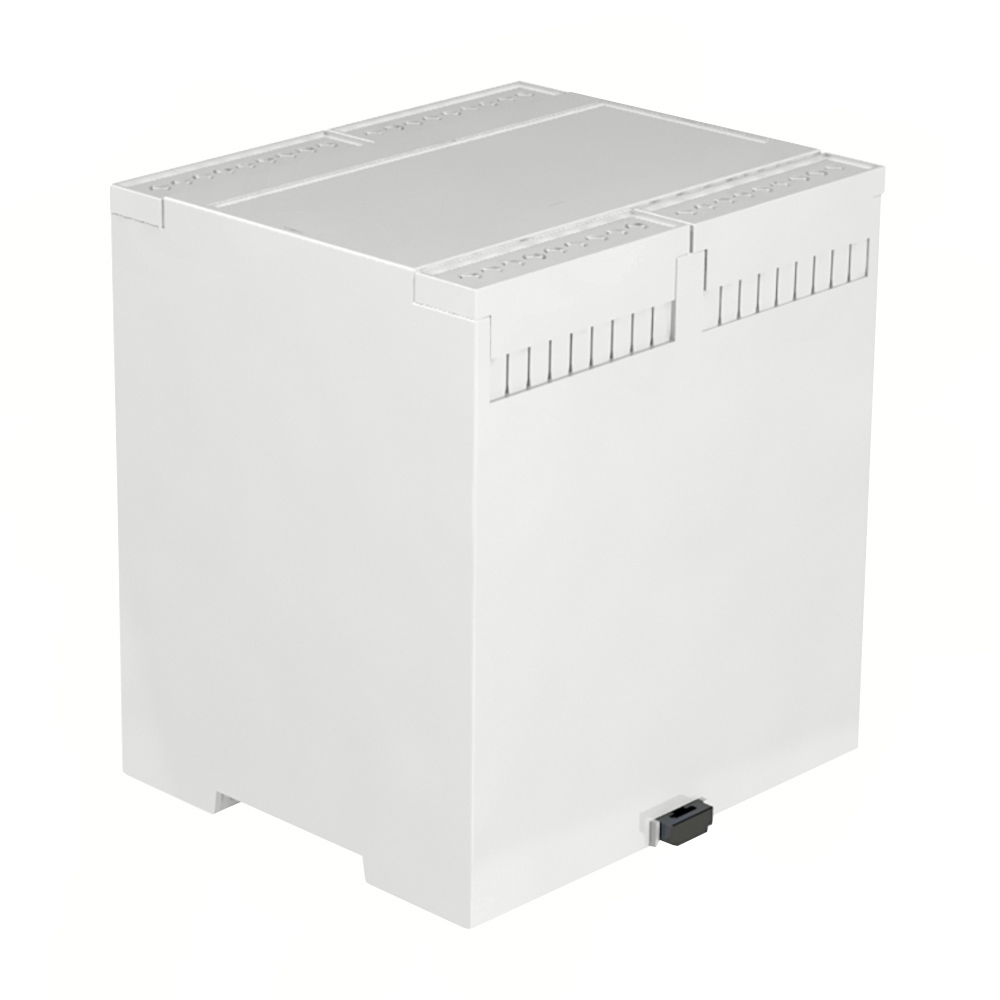

CDIB/6/D2/KIT – DIN Rail High Profile Enclosure Kit with Open Top, 114x90x106.2mm

CDIB Series DIN Rail Enclosure Kit, Open Top, High Profile. Kit includes one grey cover, two solid and four perforated terminal guards. Ideal for HVAC type applications, power distribution and network electronics

X2 pillars in the base for screw fixing PCB
Designed for 35mm DIN Rail Mounting
DIN Clips can also be used for surface mounting the housing
Multiple snap-in PCB positions available (horizontal & vertical)

Technical

Dimensions 90 × 106 × 114 mm
Colour

Grey

Height

114

Width

106

Length

90

IP Rating

IP20

Manufacturer

CamdenBoss

Material

Polycarbonate

Flammability

UL94-V0

Shape

Rectangular/Square

Mounting

DIN Rail

Feature

N/A

Series

CDIB

Downloads

CDIB_series_D

2.14 MB

CDIB_6_D2_KIT

248.12 KB
