CDIC00001

140 × 173 × 70 mm

110 Series Enclosure, Aluminium Desktop Instrument Enclosure
£67.34

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.









Enquire Now

Product Details

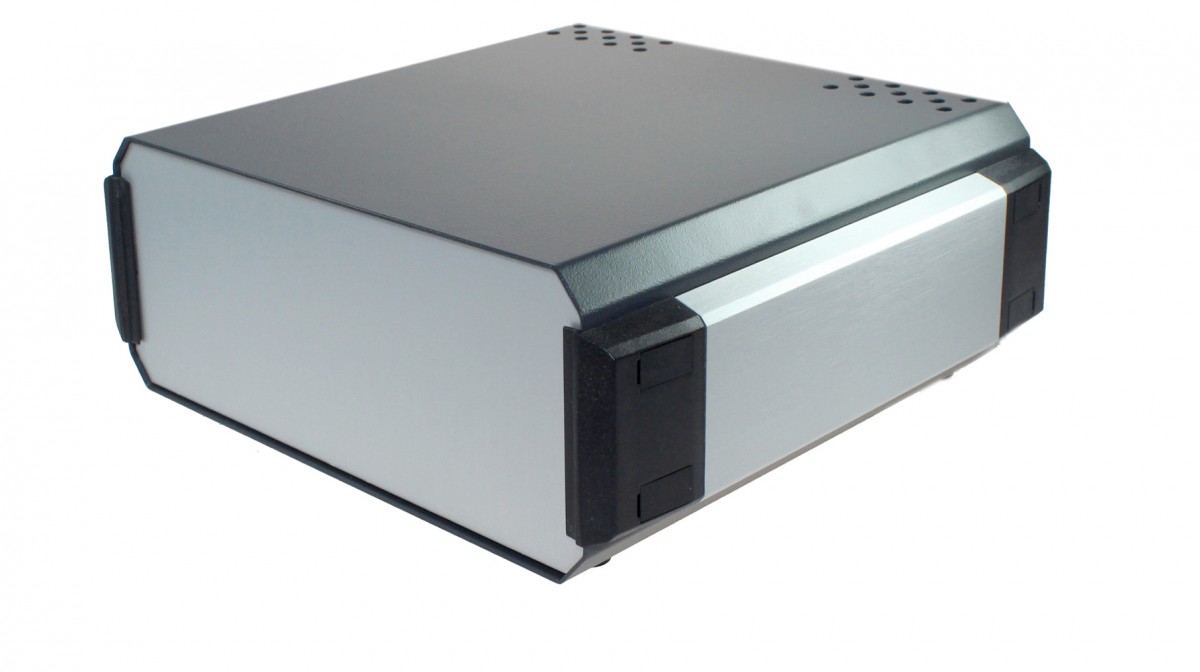

CDIC00001 – 110 Series Enclosure, Aluminium Desktop Instrument Enclosure

110 Series Desktop Instrument Case, Size 1, 145x171x70mm, manufactured in the UK.

Screwless push-fit assembly via 8x lock pins
Horizontal PCB guides in side profiles
Ventilation slots in lid and base
Lid and base can be dismounted independently from each other
4x non-slip feet as standard (CDIC00001-4)
2x non-slip feet, 2x tilting feet and front handles (CDIC00005-7)

Technical

Dimensions 140 × 173 × 70 mm
Colour

Grey

Height

70

Width

173

Length

140

IP Rating

IP20

Manufacturer

CamdenBoss

Material

Aluminium

Flammability

UL94-HB

Shape

Rectangular / Square

Mounting

Free Standing

Feature

Easy Assembly

Series

110

Downloads

Desktop Instrument Cases_series_D

276.95 KB

CDIC00001

184.39 KB
