CDIC00002
200 × 223 × 70 mm
Material: Aluminium
Category: All Products, Desktop & Instrument
110 Series Enclosure, Aluminium Desktop Instrument Enclosure
£68.83
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

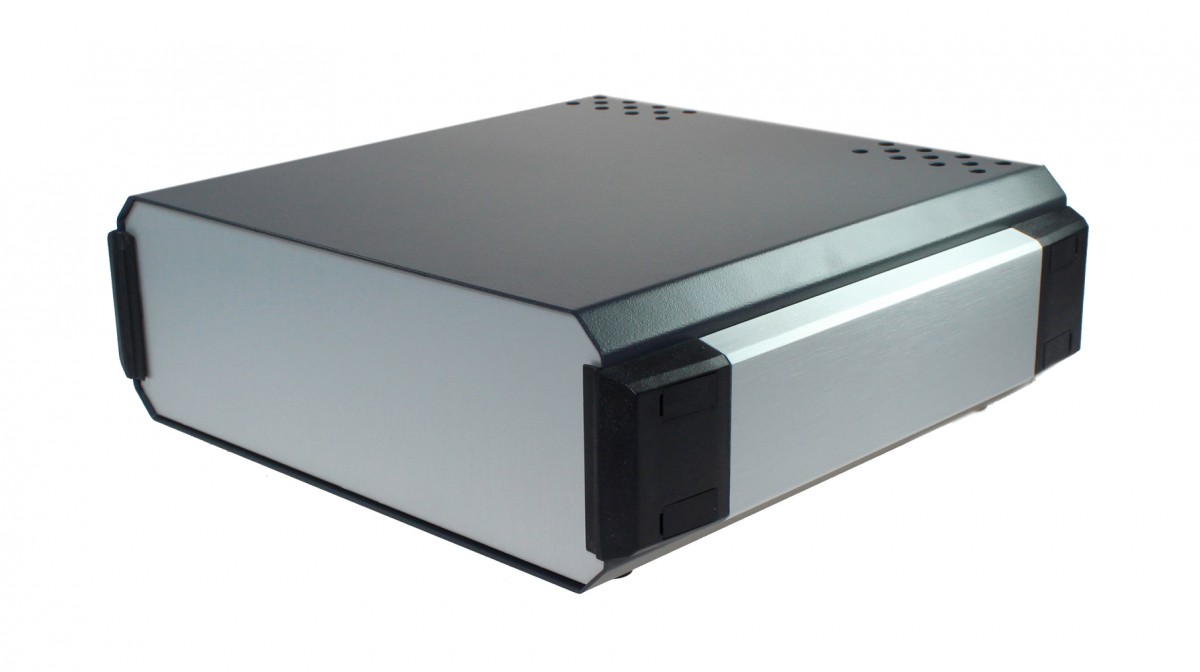

CDIC00002 – 110 Series Enclosure, Aluminium Desktop Instrument Enclosure
110 Series Desktop Instrument Case, Size 2, 207x221x70mm, manufactured in the UK.
Screwless push-fit assembly via 8x lock pins
Horizontal PCB guides in side profiles
Ventilation slots in lid and base
Lid and base can be dismounted independently from each other
4x non-slip feet as standard (CDIC00001-4)
2x non-slip feet, 2x tilting feet and front handles (CDIC00005-7)
Technical
| Dimensions | 200 × 223 × 70 mm |
|---|---|
| Colour | Grey |
| Height | 70 |
| Width | 223 |
| Length | 200 |
| IP Rating | IP20 |
| Manufacturer | CamdenBoss |
| Material | Aluminium |
| Flammability | UL94-HB |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | Easy Assembly, Vented |
| Series | 110 |
