CDIC00007

351 × 428 × 130 mm

Material: Aluminium

Category: All Products, Desktop & Instrument

110 Series Enclosure, Aluminium Desktop Instrument Enclosure
£107.76

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

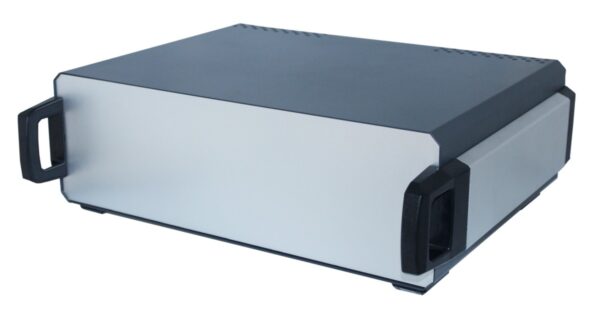

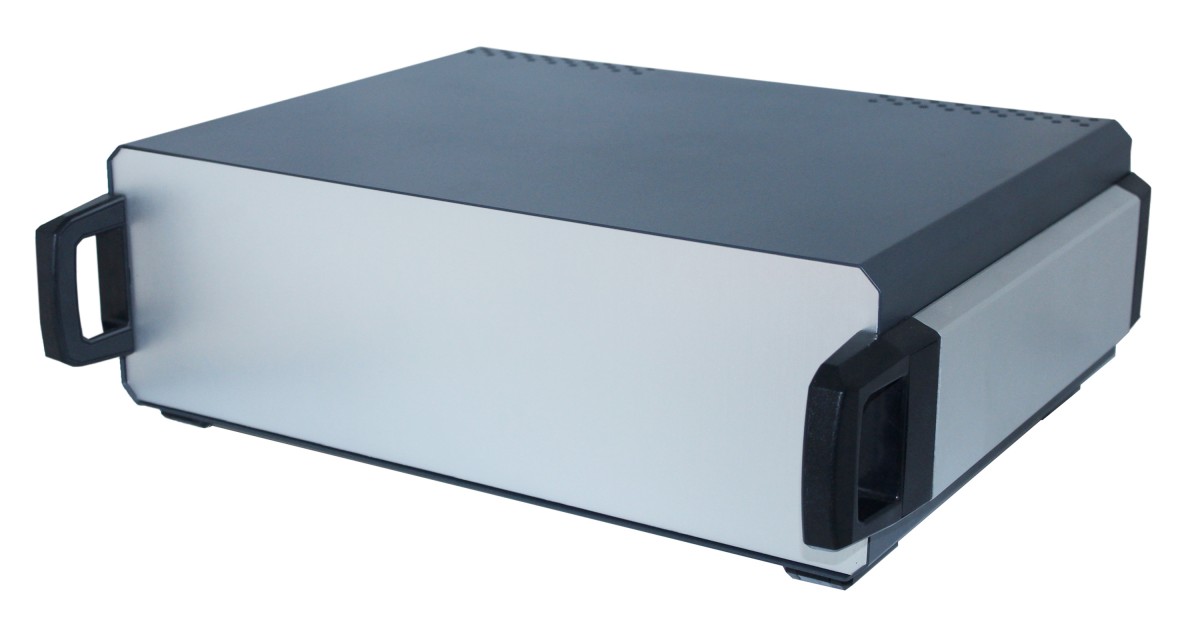

CDIC00007 – 110 Series Enclosure, Aluminium Desktop Instrument Enclosure

110 Series Desktop Instrument Case, Size 7, 351x428x130mm, manufactured in the UK.

Screwless push-fit assembly via 8x lock pins
Horizontal PCB guides in side profiles
Ventilation slots in lid and base
Lid and base can be dismounted independently from each other
4x non-slip feet as standard (CDIC00001-4)
2x non-slip feet, 2x tilting feet and front handles (CDIC00005-7)

Technical

Dimensions 351 × 428 × 130 mm
Colour

Grey

Height

130

Width

428

Length

351

IP Rating

IP20

Manufacturer

CamdenBoss

Material

Aluminium

Flammability

UL94-HB

Shape

Rectangular/Square

Mounting

Free Standing

Feature

Easy Assembly, Vented

Series

110

Downloads

Desktop Instrument Cases_series_D

276.95 KB

CDIC00007

203.73 KB
