CDICMP005
170 × 287 × 1 mm
Material: Steel
Category: All Products, Desktop & Instrument
Mounting Plate for 110 Series, Aluminium Enclosure Accessory
£13.99
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

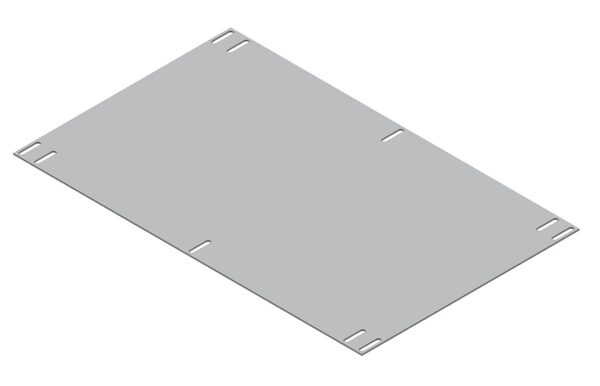

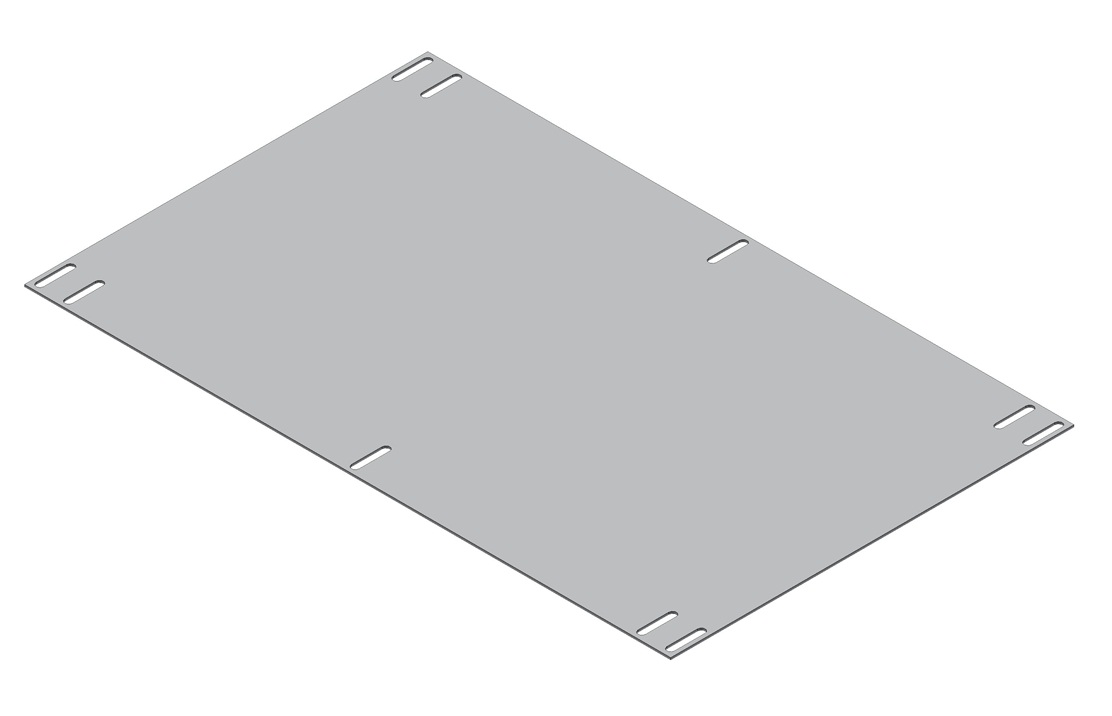

CDICMP005 – Mounting Plate for 110 Series, Aluminium Enclosure Accessory
Mounting Plate for 110 Series Desktop Instrument Case, 170×286.5mm
Screwless push-fit assembly via 8x lock pins
Horizontal PCB guides in side profiles
Ventilation slots in lid and base
Lid and base can be dismounted independently from each other
4x non-slip feet as standard (CDIC00001-4)
2x non-slip feet, 2x tilting feet and front handles (CDIC00005-7)
Technical
| Dimensions | 170 × 287 × 1 mm |
|---|---|
| Colour | Natural |
| Height | 1 |
| Width | 287 |
| Length | 170 |
| IP Rating | N/A |
| Manufacturer | CamdenBoss |
| Material | Steel |
| Flammability | N/A |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | Easy Assembly, Vented |
| Series | 110 |
Downloads
CDICMP005
149.29 KB
