55 Series Dura Boxes_series_D
294.39 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
CEAREPB03
160 × 102 × 37 mm
Material: Aluminium
Category: All Products, Diecast & Metal
55 series 'Dura Box' aluminium recessed enclosure, Black, 160x102mm
£26.26
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

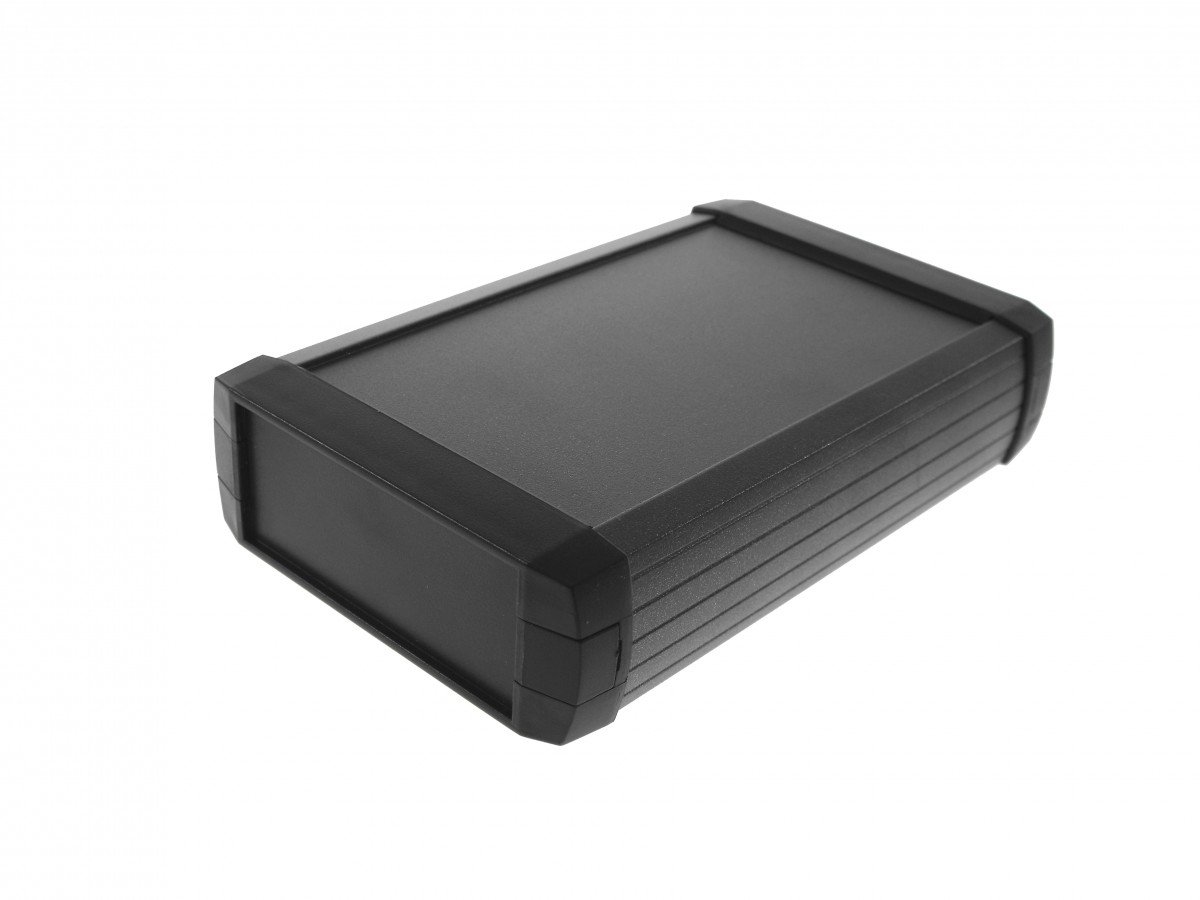

CEAREPB03 – 55 series ‘Dura Box’ aluminium recessed enclosure, Black, 160x102mm
Industrial aluminium extruded enclosure with plastic end-caps. Ideal for a wide range of applications such as, Hand-Held industrial testing equipment, wireless diagnostic devices or portable industrial sensors and controls.
Heavy duty enclosure with industrial engineering
Extruded aluminium profile
Integral PCB mounting rails
Front & rear plastic caps retained by 4x M3 screws
Plastic screw covers for aesthetic appearance
Recesses in lid & base for membrane keypads or overlays
Textured sides for good grip
Technical
| Dimensions | 160 × 102 × 37 mm |
|---|---|
| Colour | Black |
| Height | 37 |
| Width | 102 |
| Length | 160 |
| IP Rating | IP65 |
| Manufacturer | CamdenBoss |
| Material | Aluminium |
| Flammability | N/A |
| Shape | Rectangular/Square |
| Mounting | Hand-Held |
| Feature | N/A |
| Series | 55 |
