CEAREPG02

160 × 82 × 27 mm

Material: Aluminium

Category: All Products, Diecast & Metal

55 series 'Dura Box' aluminium recessed enclosure, Grey, 160x82mm
£22.59

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

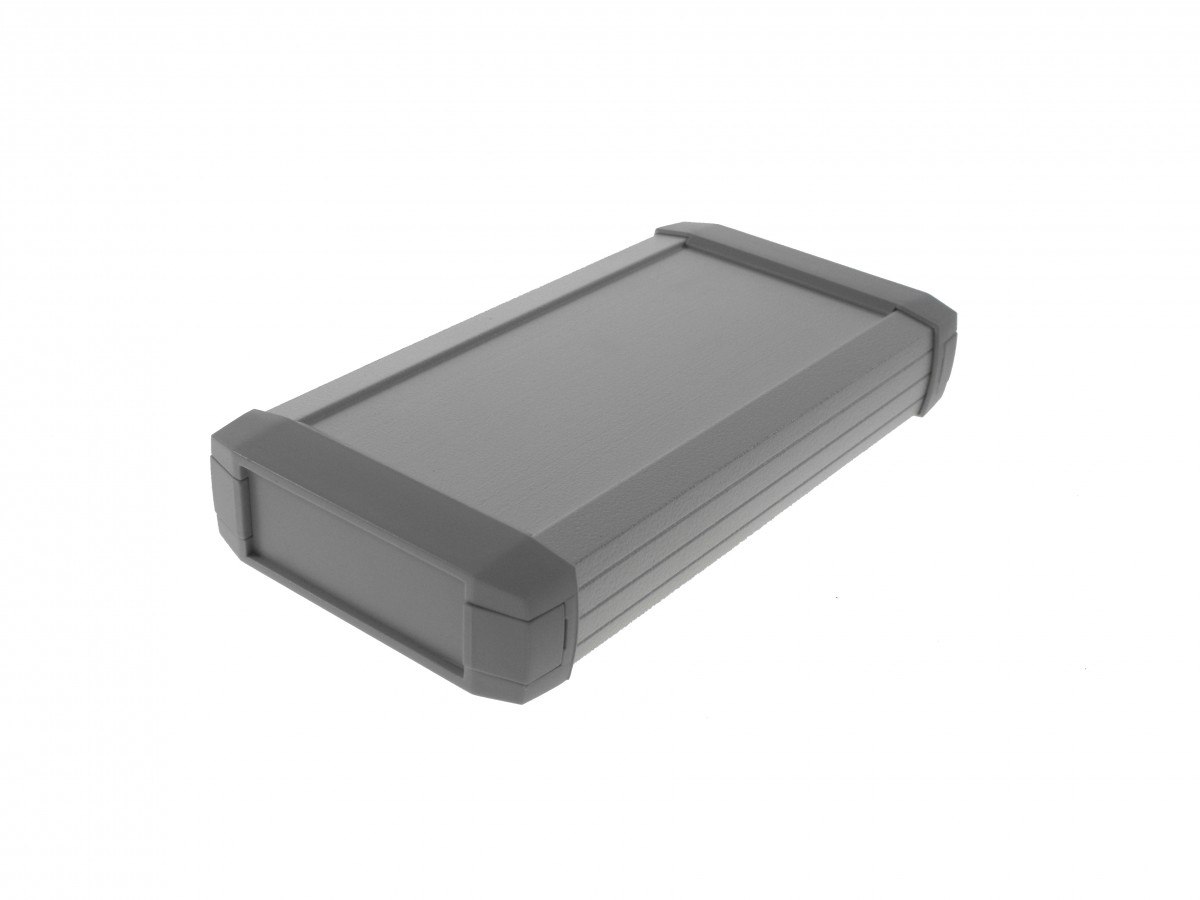

CEAREPG02 – 55 series ‘Dura Box’ aluminium recessed enclosure, Grey, 160x82mm

Industrial aluminium extruded enclosure with plastic end-caps. Ideal for a wide range of applications such as, Hand-Held industrial testing equipment, wireless diagnostic devices or portable industrial sensors and controls.

Heavy duty enclosure with industrial engineering
Extruded aluminium profile
Integral PCB mounting rails
Front & rear plastic caps retained by 4x M3 screws
Plastic screw covers for aesthetic appearance
Recesses in lid & base for membrane keypads or overlays
Textured sides for good grip

Technical

Dimensions 160 × 82 × 27 mm
Colour

Grey

Height

27

Width

82

Length

160

IP Rating

IP65

Manufacturer

CamdenBoss

Material

Aluminium

Flammability

N/A

Shape

Rectangular/Square

Mounting

Hand-Held

Feature

N/A

Series

55

Downloads

55 Series Dura Boxes_series_D

294.39 KB

CEAREPG02

168.37 KB
