64 Series End Cap ABS Handheld Enclosure_D
293.24 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
£7.18
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

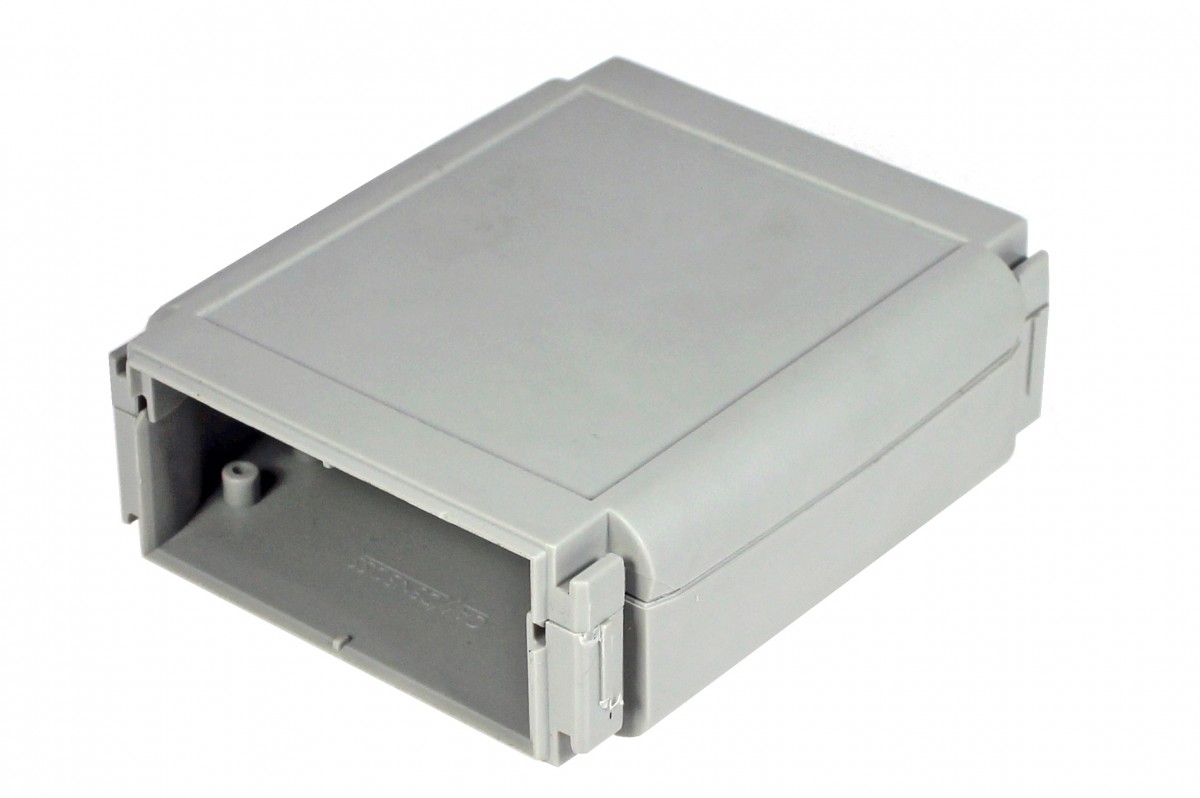

CHH642BGY – 64 Series Hand-Held Case
64 Series ABS Hand-Held enclosure, Grey, Battery Door, 100x80x30mm
Moulded in high grade ABS, UL94-V0
Snap-fit base & lid assembly, via end caps
Battery compartment lid M3 retaining screw
Recesses in lid, base and end caps for membrane keypads or overlays
PCB pillars in lid and base
64 series has been designed to meet the requirements of IP54
Or additionally, IP65 with the optional gasket accessory
End Caps sold separately
Technical
| Dimensions | 100 × 80 × 30 mm |
|---|---|
| Colour | Grey |
| Height | 30 |
| Width | 80 |
| Feature | |
| Length | 100 |
| IP Rating | IP62 |
| Shape | Rectangular/Square |
| Manufacturer | CamdenBoss |
| Mounting | Hand-Held |
| Material | ABS |
| Flammability | UL94-V0 |
| Series | 64 |
Downloads
CHH642BGY
250.75 KB
