SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST





CNMB/1/KIT

18 × 90 × 58 mm

Material: Polycarbonate

Category: All Products, DIN Rail

DIN Rail Module Box Kit, Industrial Enclosure, Polycarbonate Enclosure
£3.44

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

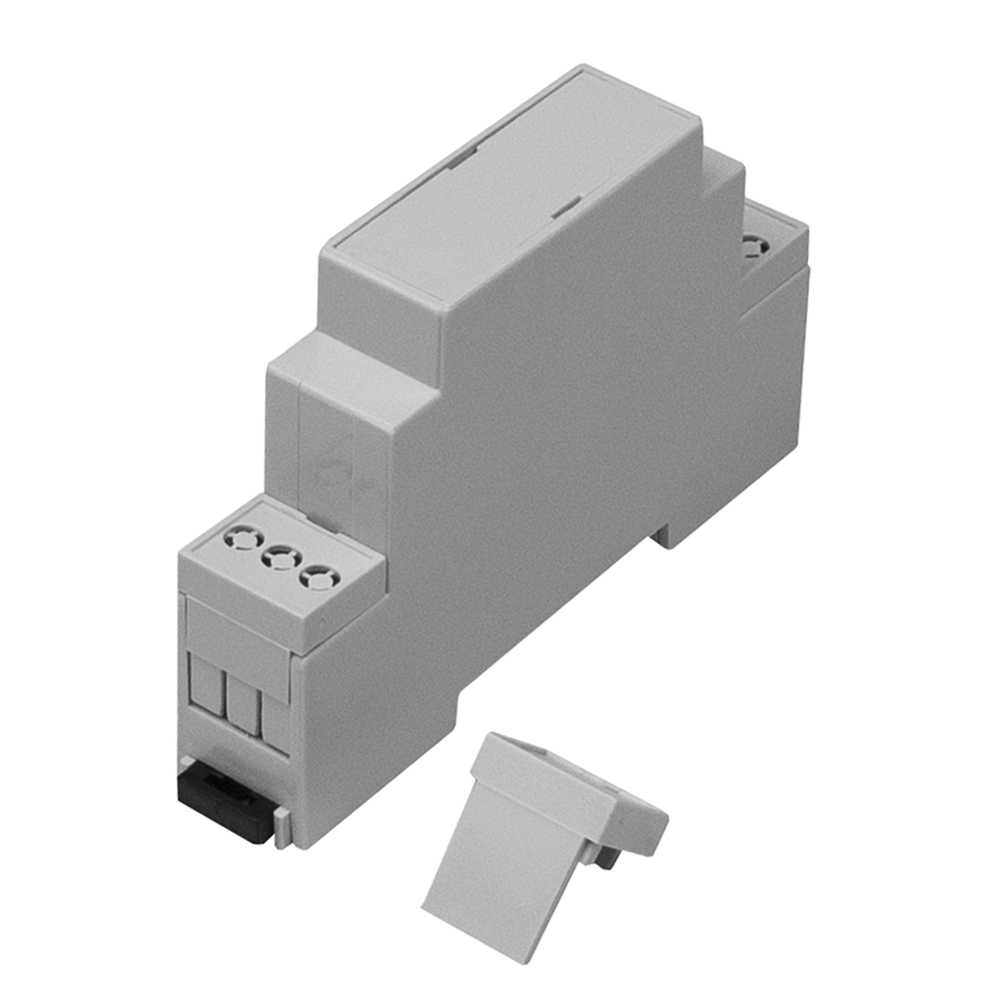

CNMB/1/KIT – DIN Rail Module Box Kit, Industrial Enclosure, Polycarbonate Enclosure

CNMB Series DIN Rail Standard Height Module Box Kit, Size 1, Open Top, Both Sides Open. This UK manufactured enclosure is moulded in UL94-V0 polycarbonate.

Snap fit modular design for ease of assembly and custom kitting
Base fits 35mm DIN rail or directly to flat surface
Moulded in light grey UL94-V0 flame retardant polycarbonate
Carries up to 3 PCBs horizontally or 2 vertically
Snap fit terminal cover options for IP20 finger protection
Snap in covers available in grey, clear, transparent red and smoked
Open top, solid top, vented and extended wall kits are available
Easily customised covers and terminal guards
Ideal for drive and control, automation and IoT devices

Technical

Dimensions 18 × 90 × 58 mm
Colour

Grey

Height

58

Width

90

Length

18

IP Rating

IP20

Manufacturer

CamdenBoss

Material

Polycarbonate

Flammability

UL94-V0

Shape

Rectangular/Square

Mounting

DIN Rail

Feature

Easy Assembly

Series

CNMB

Downloads

CNMB DIN Rail Modular Enclosure_D

1.6 MB

CNMB_1_KIT

208.19 KB
