SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
CNMB/2V/KIT
36 × 90 × 58 mm
Material: Polycarbonate
Category: All Products, DIN Rail
DIN Rail Module Box Kit, Industrial Enclosure, Polycarbonate Enclosure
£5.37
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

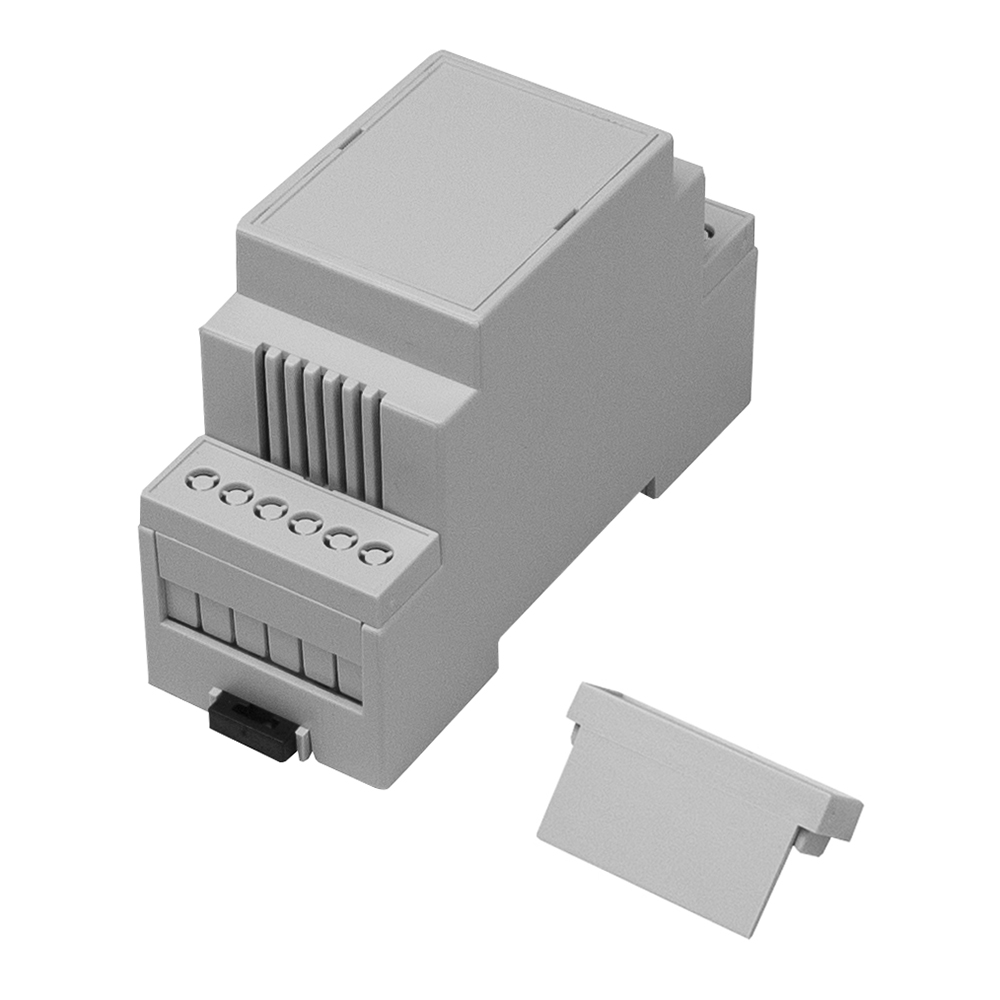

CNMB/2V/KIT – DIN Rail Module Box Kit, Industrial Enclosure, Polycarbonate Enclosure
CNMB Series DIN Rail Standard Height Module Box Kit, Size 2, Open Top, Vented, Both Sides Open. This UK manufactured enclosure is moulded in UL94-V0 polycarbonate.
Snap fit modular design for ease of assembly and custom kitting
Base fits 35mm DIN rail or directly to flat surface
Moulded in light grey UL94-V0 flame retardant polycarbonate
Carries up to 3 PCBs horizontally or 2 vertically
Snap fit terminal cover options for IP20 finger protection
Snap in covers available in grey, clear, transparent red and smoked
Open top, solid top, vented and extended wall kits are available
Easily customised covers and terminal guards
Perfect for centralised IoT systems and HVAC devices
Technical
| Dimensions | 36 × 90 × 58 mm |
|---|---|
| Colour | Grey |
| Height | 58 |
| Width | 90 |
| Length | 36 |
| IP Rating | IP20 |
| Manufacturer | CamdenBoss |
| Material | Polycarbonate |
| Flammability | UL94-V0 |
| Shape | Rectangular/Square |
| Mounting | DIN Rail |
| Feature | Easy Assembly, Vented |
| Series | CNMB |
