CNMB/5W/2

88 × 90 × 58 mm

Material: Polycarbonate

Category: All Products, DIN Rail, Manufactured In Great Britain

DIN Rail Module Box, Polycarbonate Enclosure, Industrial IoT Electronics Housing
£3.26

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.









Enquire Now

Product Details

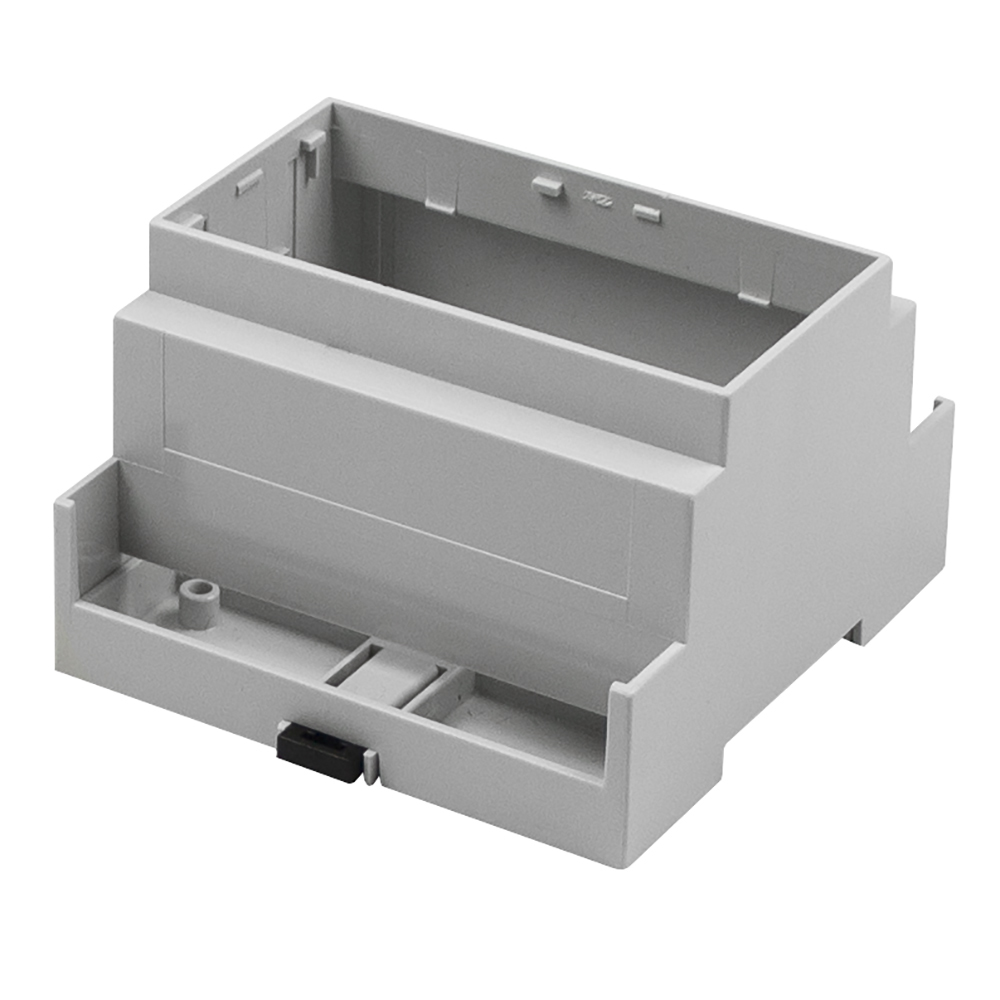

CNMB/5W/2 – DIN Rail Module Box, Polycarbonate Enclosure, Industrial IoT Electronics Housing

CNMB Series DIN Rail Standard Height Module Box, Size 5, Open Top, Extended Walls, Both Sides Open. This UK manufactured enclosure is moulded in UL94-V0 polycarbonate.

Snap fit modular design for ease of assembly and custom kitting
Base fits 35mm DIN rail or directly to flat surface
Moulded in light grey UL94-V0 flame retardant polycarbonate
Carries up to 3 PCBs horizontally or 2 vertically
Terminal covers do not fit extended wall versions
Snap in covers available in grey, clear, transparent red and smoked
Open top as standard, solid top, vented and extended wall options available
Covers and terminal guards ordered separately and can be supplied in kits
Easily customised covers
Ideal for drive and control, automation and IoT devices

Technical

Dimensions 88 × 90 × 58 mm
Colour

Grey

Height

58

Width

90

Length

88

IP Rating

IP20

Manufacturer

CamdenBoss

Material

Polycarbonate

Flammability

UL94-V0

Shape

Rectangular / Square

Mounting

DIN Rail

Feature

N/A

Series

CNMB

Downloads

CNMB DIN Rail Modular Enclosure_D

1.6 MB

CNMB_5W_2

218.98 KB
