CRDCERG07

190 × 120 × 60 mm

7000 Series Multipurpose Electronic ABS Enclosure
£22.14

Low volume indicative cost. Enquire for volume pricing.

Qty:
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.









Enquire Now

Product Details

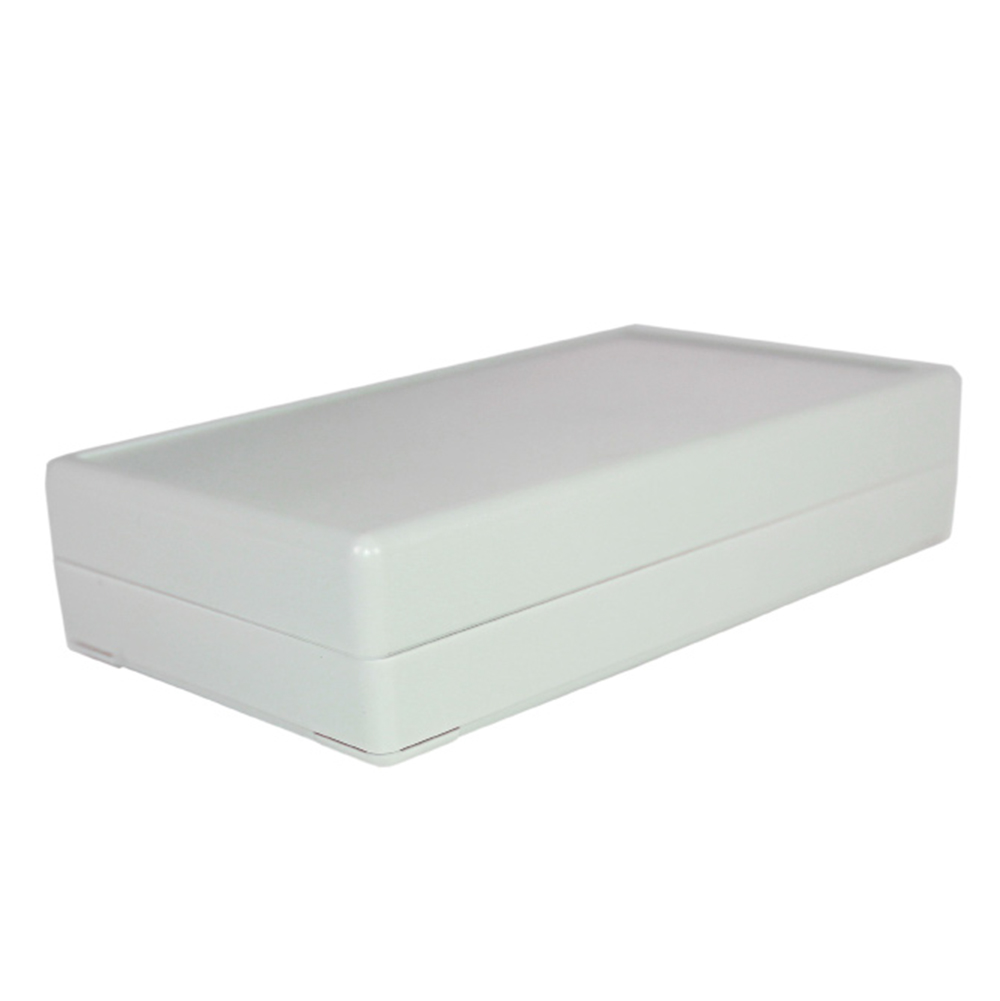

CRDCERG07 – 7000 Series Multipurpose Electronic ABS Enclosure

7000 series designer recessed enclosure, grey, size 7, 190x120x60mm, with RFI & gasket. Ideal for a variety of electrical applications such as handheld electronics, desktop equipment and wall mountable IoT devices

Lid and base moulded in ABS
Lid mounted by four M3 machine screws
Plastic screw covers for aesthetic appearance
Fine texture anti-scratch finish
Recesses in lid and base designed to accept membrane keypads or overlays
Integral mounting guides in lid and base for vertical PCB mounting
PCB pillars in lid and base
Surface mountable via moulded fixing points or wall-mounting kit (optional)
7000 series has been designed to meet the requirements of IP54
Or additionally, IP65 with the gasket accessory

Technical

Dimensions 190 × 120 × 60 mm
Colour

Grey

Height

60

Width

120

Length

190

IP Rating

IP65

Manufacturer

CamdenBoss

Material

ABS

Flammability

UL94-V0

Shape

Rectangular / Square

Mounting

Wall Mount

Feature

N/A

Series

7000

Downloads

7000 Series Multipurpose Recessed Electronic Enclosure_D

275.26 KB

CRDCERG07

209.16 KB
