EC030315EE
N/A
Material: Steel, Mild Steel
Category: All Products, ATEX, Diecast & Metal, Heavy Duty
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
EC030315EE

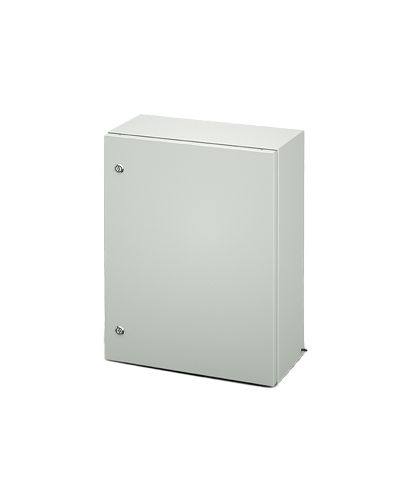

Sheet steel enclosure with wall fixing for industrial environment intended to be used in Explosive Atmosphere (ATEX) with protection method EX eb, tb. Wide range that fully meets both the standards required by the directive and the market need to have a product for increased safety applications and with an enclosure against dust and gas.
Configuration: Mild steel
Dims: 150x300x300mm
Environmental Ratings: NEMA/UL TYPE 1, 4; IP66
Latch Type: Zinc alloy box and insert, stainless steel tongue
Number of latches: 1
Finish: Thermosetting powder
Colour: Grey
Material: Enclosure and Door: sheet steel with bi-component polyurethane foam gasket. Enclosure and insert in zinc alloy and tongue in stainless steel. Mounting plate: sendzimir sheet steel External stud M6 (H = 15): copper-plated steel
Thickness: Enclosure and door: 1.5mm Mounting plate: 2.5mm
Paint: Standard electrostatic cycle E DUP ETA: liquid painting with cathodic electrophoresis process with epoxy resin and finishing with thermosetting epoxy polyester powders.
Impact Rating: IK10
Contents: Enclosure without cable entry supplied with door complete with locking system with double tongue key diam. 3.0mm; plate p.a. flat and external M6 anti-rotation and anti-slip stud welded to the casing; set of screws for grounding and mounting plate p.a.
Technical
| Dimensions | |
|---|---|
| Colour | Grey |
| Height | 300 |
| Width | 300 |
| Feature | |
| Length | 150 |
| IP Rating | IP66 |
| Shape | Rectangular/Square |
| Manufacturer | ETA |
| Material | Steel, Mild Steel |
