EC030315EEX
N/A
Material: Steel, Stainless Steel
Category: All Products, ATEX, Diecast & Metal, Heavy Duty
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
EC030315EEX

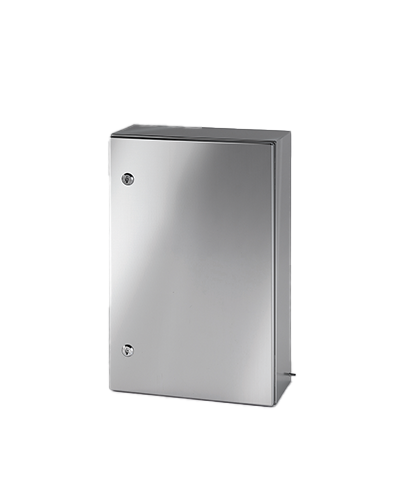

Boxes manufactured from stainless sheet steel intended to be used in explosive atmosphere (ATEX). The wide rage of ETA boxes fully responds to both the standards required by the directive and the need of the market to have a product for increased safety and with enclosure against dust and gas.
Configuration: Stainless steel
Dims: 150x300x300mm
Environmental Ratings: NEMA/UL TYPE 1, 12, 4x; IP66
Latch Type: 316L stainless steel box with double fin insert diam. 3.0mm and stainless steel tongue
Number of latches: 1
Finish:
Colour:
Material: Enclosure and door: pre-satinized AISI304L stainless steel sheet and silicone foam seal. Enclosure and insert in zinc alloy and lever in stainless steel. Mounting plate: sendzimir sheet steel. Hinges: AISI316L stainless sheet steel. M6 external stud (H=15mm): AISI304L stainless sheet steel
Thickness: Enclosure and door: 1,2mm Mounting plate: 2,0mm
Paint:
Impact Rating: IK10
Contents: Enclosure complete with mounting plate , single blank door with locking system with diam. 3,0mm double bar key and silicone foam seal; hinges; and package with screws for earth connection and mounting plate.
Technical
| Dimensions | |
|---|---|
| Height | 300 |
| Width | 300 |
| Feature | |
| Length | 150 |
| IP Rating | IP66 |
| Shape | Rectangular/Square |
| Manufacturer | ETA |
| Material | Steel, Stainless Steel |
