EC030420H.P
N/A
Material: Steel, Stainless Steel
Category: All Products, Diecast & Metal, Heavy Duty
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
EC030420H.P

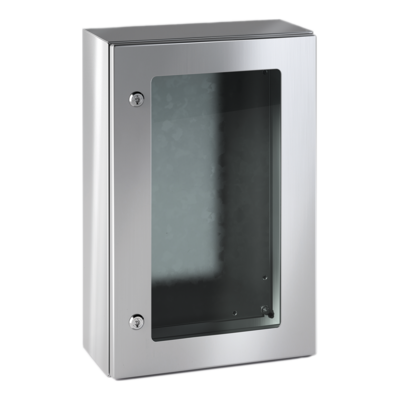

Enclosure with glass door, wall-mounting and high resistance to harsh chemical and environmental agents.
Configuration: Single glass door
Dims: 200x300x400mm
Environmental Ratings: NEMA/UL TYPE 1, 12; IP66
Latch Type: Quarter-turn, double-bit key
Number of latches: 1
Finish:
Colour:
Material: Enclosure and door: AISI316L stainless sheet steel with silicone foam seal Transparent door: glass Door closing system with box and insert in zinc alloy, tongue and hinges in stainless steel Mounting plate: sendzimir sheet steel
Thickness: Enclosure: 1,2mm Door: 1,5mm Plexiglas plate: 4,0mm Mounting plate: 2,5mm
Paint:
Impact Rating: IK10
Contents: Enclosure, mounting plate, transparent front door complete with tempered glass and locking system with 3mm diam. double-bit key, pack of screws for earthing and mounting of mounting plate.
Technical
| Dimensions | |
|---|---|
| Height | 400 |
| Width | 300 |
| Feature | |
| Length | 200 |
| IP Rating | IP66 |
| Shape | Rectangular/Square |
| Manufacturer | ETA |
| Mounting | Wall Mount |
| Material | Steel, Stainless Steel |
