EC030420X
N/A
Material: Steel, Stainless Steel
Category: All Products, Diecast & Metal, Heavy Duty
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
EC030420X

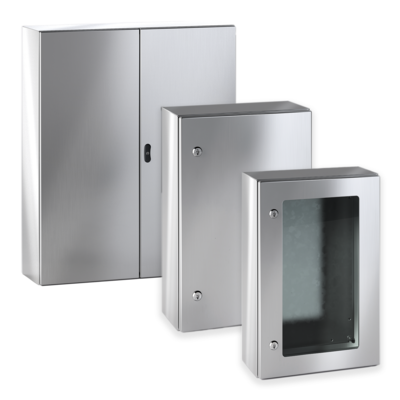

ETA E CORX Unibody wall-mount enclosure, concealed hinge, double-bit 1/4-turn latch, NEMA/UL TYPE 1, 12, 4x; IP66, AISI304L stainless steel, Single Solid Door, 16 x 12 x 8 (400 x 300 x 200mm – HxWxD)”
Configuration: Single blank door
Dims: 200x300x400mm
Environmental Ratings: NEMA/UL TYPE 1, 12, 4x, 3R; IP66
Latch Type: Quarter-turn, double-bit key
Number of latches: 1
Finish:
Colour:
Material: AISI304L stainless steel
Thickness: Enclosure: 1,2mm Door: 1,5mm Mounting plate: 2,5mm
Paint:
Impact Rating: IK10
Contents: Enclosure, double-bit key, mounting plate, and hardware for grounding and mounting plate
Technical
| Dimensions | |
|---|---|
| Height | 400 |
| Width | 300 |
| Feature | |
| Length | 200 |
| IP Rating | IP66 |
| Shape | Rectangular/Square |
| Manufacturer | ETA |
| Mounting | Wall Mount |
| Material | Steel, Stainless Steel |
