EC040515H.T
150 × 400 × 617 mm
Material: AISI 316L, Stainless Steel, Steel
Category: All Products, Diecast & Metal, Electrical, Heavy Duty
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
EC040515H.T

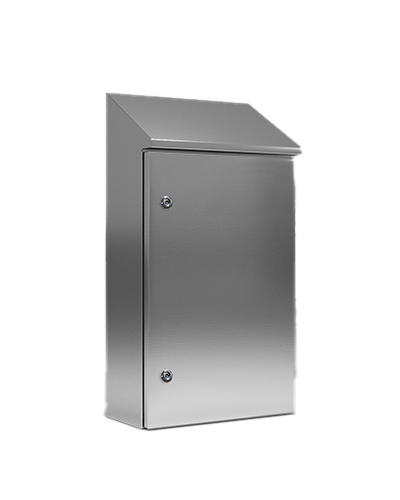

Enclosure with sloped roof, wall-mounting and high resistance to harsh chemical and environmental agents.
Configuration: Sloped roof
Dims: 150x400x617mm
Environmental Ratings: NEMA/UL TYPE 1, 12, 4x, 3R; IP66
Latch Type: Quarter-turn, double-bit key
Number of latches: 1
Finish:
Colour:
Material: Enclosure, door and roof: AISI316L stainless sheet steel with silicone foam seal Door closing system with box and insert in zinc alloy, tongue and hinges in stainless steel Mounting plate: sendzimir sheet steel
Thickness: Enclosure: 1,2mm Door: 1,5mm Mounting plate: 2,5mm
Paint:
Impact Rating: IK10
Contents: Enclosure, mounting plate, blank door complete with locking system with 3mm diam. double-bit key, integrated roof, pack of screws for earthing and mounting of P.A. plate.
Technical
| Dimensions | 150 × 400 × 617 mm |
|---|---|
| Height | 617 |
| Width | 400 |
| Material | AISI 316L, Stainless Steel, Steel |
| Shape | Rectangular/Square |
| Length | 150 |
| Mounting | Wall Mount |
| IP Rating | IP66 |
| Feature | |
| Manufacturer | ETA |
