EC060820
200 × 600 × 800 mm
Material: Mild steel, Steel
Category: All Products, Diecast & Metal, Electrical, Heavy Duty
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
EC060820

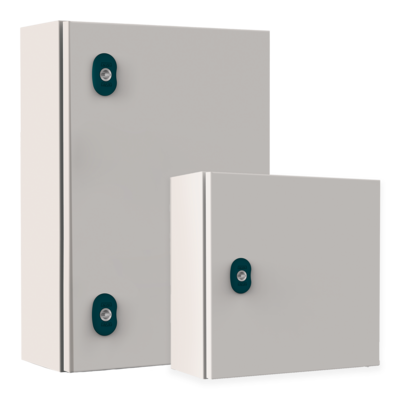

ETA E COR wall-mount enclosure with cable entry plate(s), Concealed hinge, 1/4-turn double-bit latch, NEMA/UL Type 1,3R,4,12,13; IP66, Steel, RAL 7035 Light Grey, 31 x 24 x 8 nominal (800 x 600 x 200mm – HxWxD)”
Configuration: Single blank door
Dims: 200x600x800mm
Environmental Ratings: NEMA/UL TYPE 1, 12, 3R, 4; IP66
Latch Type: Quarter-turn, double-bit key
Number of latches: 2
Finish: Textured thermosetting powder
Colour: Grey
Material: Enclosure door and closing flange: DC01 steel plate and two-component polyurethane foam gasket Plate p.a.: sendzimir steel plate
Thickness: Enclosure: 1,2mm Door: from 1,5mm to 2,0mm Mounting plate: from 2,0mm to 2,5mm
Paint: Ciclo standard elettrostatico E DUP ETA: verniciatura liquida con processo di elettroforesi catodica con resina epossidica e finitura con polveri epossipoliestere termoindurenti.
Impact Rating: IK10
Contents: Supply includes housing; reversible door with diam. 3,0mm double bit locking system and nr. 2 welded and painted profiles; mounting plate; cable entry closure flange and set of screws for grounding and assembly.
Technical
| Dimensions | 200 × 600 × 800 mm |
|---|---|
| Colour | Grey |
| Height | 800 |
| Width | 600 |
| Feature | |
| Length | 200 |
| IP Rating | IP66 |
| Shape | Rectangular/Square |
| Manufacturer | ETA |
| Mounting | Wall Mount |
| Material | Mild steel, Steel |
