EC060825X.P
250 × 600 × 800 mm
Material: AISI 304L, Stainless Steel, Steel
Category: All Products, Diecast & Metal, Electrical, Heavy Duty
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
EC060825X.P

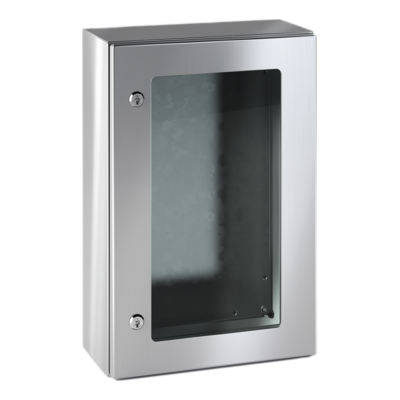

Enclosure with glass door, wall-mounting and high resistance to harsh chemical and environmental agents.
Configuration: Single glass door
Dims: 250x600x800mm
Environmental Ratings: NEMA/UL TYPE 1, 12; IP66
Latch Type: Quarter-turn, double-bit key
Number of latches: 2
Finish:
Colour:
Material: Enclosure and door: pre-satinized AISI304L stainless steel sheet and silicone foam seal. Transparent door: glass plate. Door closing system with box and insert in zinc alloy, tongue and hinges in stainless steel. Mounting plate: sendzimir sheet
Thickness: Enclosure and door: 1,5mm Plexiglas plate: 4,0mm Mounting plate: 2,5mm
Paint:
Impact Rating: IK10
Contents: Enclosure, mounting plate, transparent front door complete with tempered glass and locking system with 3mm diam. double-bit key, pack of screws for earthing and mounting of mounting plate.
Technical
| Dimensions | 250 × 600 × 800 mm |
|---|---|
| Height | 800 |
| Width | 600 |
| Feature | |
| Length | 250 |
| IP Rating | IP66 |
| Shape | Rectangular/Square |
| Manufacturer | ETA |
| Mounting | Wall Mount |
| Material | AISI 304L, Stainless Steel, Steel |
