EC100830
300 × 1000 × 800 mm
Material: Mild steel, Steel
Category: All Products, Diecast & Metal, Electrical, Heavy Duty
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
EC100830

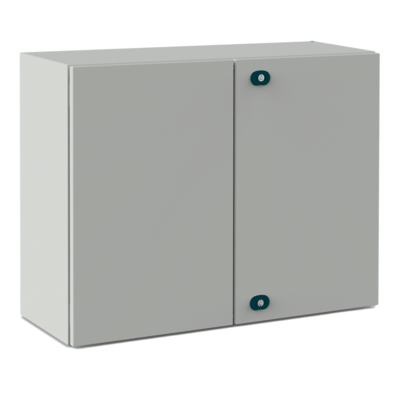

ETA E COR wall-mount enclosure with cable entry plate(s), Concealed hinge, 1/4-turn double-bit latch, NEMA/UL Type 1,3R,4,12,13; IP66, Steel, RAL 7035 Light Grey, 31 x 40 x 12 nominal (800 x 1000 x 300mm – HxWxD)”
Configuration: Double blank door
Dims: 300x1000x800mm
Environmental Ratings: NEMA/UL TYPE 1, 12, 3R, IP55
Latch Type: Quarter-turn, double-bit key
Number of latches: 2
Finish: Textured thermosetting powder
Colour: Grey
Material: Enclosure and doors: sheet steel DC01 Plate p.a.: sendzimir sheet steel Closing flanges cable entry: sheet steel with two-component polyurethane foam gasket.
Thickness: Enclosure and door: 1,5mm Mounting plate: 2,5mm
Paint: Ciclo standard elettrostatico E DUP ETA: verniciatura liquida con processo di elettroforesi catodica con resina epossidica e finitura con polveri epossipoliestere termoindurenti.
Impact Rating: IK10
Contents: Soluzione composta da involucro; porta doppia cieca con sistema di chiusura a doppia aletta diam. 3,0mm e nr. 4 profili saldati e verniciati; piastra p.a.; flange di chiusura ingresso cavi e confezione di viteria per messa a terra e montaggio.
Technical
| Dimensions | 300 × 1000 × 800 mm |
|---|---|
| Dimensions | |
| Colour | Grey |
| Height | 800 |
| Width | 1000 |
| Feature | |
| Length | 300 |
| IP Rating | IP55 |
| Shape | Rectangular/Square |
| Manufacturer | ETA |
| Mounting | Wall Mount |
| Material | Mild steel, Steel |
