EGRAN1-108XH
80 × 150 × 150 mm
Material: AISI 316L, Stainless Steel, Steel
Category: All Products, Diecast & Metal, Electrical, Heavy Duty
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
EGRAN1-108XH

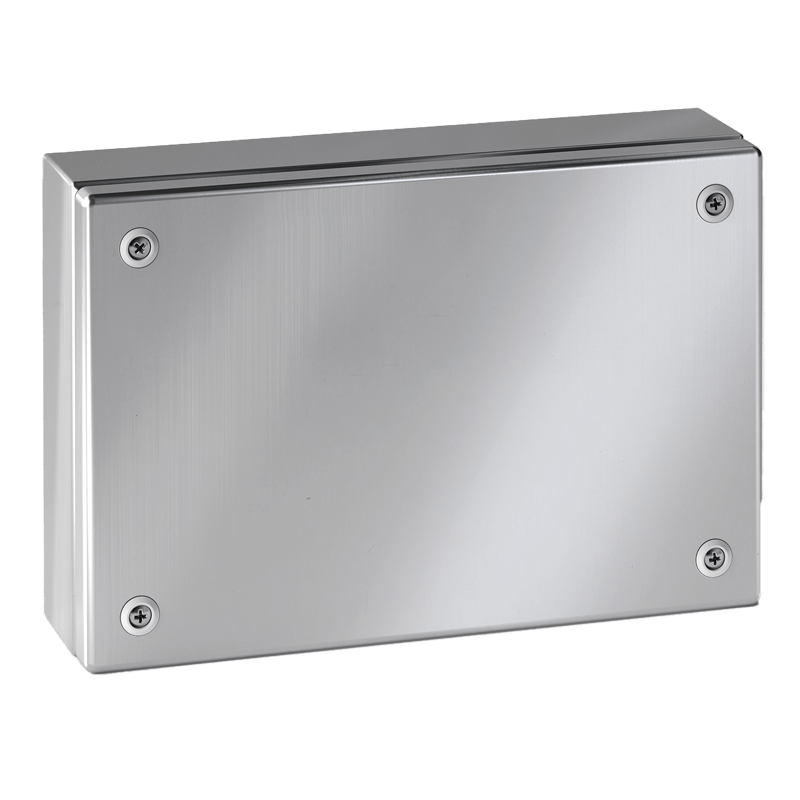

Stainless steel terminal box. Safe and easy solution thanks to the innovative lid fixed with 1/4 turns captive screws. It ensure a great performance thanks to the formed corners and the silicone seal. Eye-catching aesthetics with new small wall-mounting brackets.
Configuration: Screwed panel
Dims: 80x150x150mm
Environmental Ratings: NEMA/UL TYPE 1, 12, 4x; IP66, IP69K
Latch Type:
Number of latches:
Finish:
Colour:
Material: Enclosure and lid: AISI316L stainless steel sheet with two-component silicone foam seal.
Thickness: Enclosure and lid: 1,2mm
Paint:
Impact Rating: IK10
Contents: Supply includes nr. 1 box, with lid and captive screws. DIN profiles, mounting plate and wall mounting brackets SHWCK-010 to be ordered separately.
Technical
| Dimensions | 80 × 150 × 150 mm |
|---|---|
| Height | 150 |
| Width | 150 |
| Length | 80 |
| IP Rating | IP66, IP69K |
| Shape | Rectangular/Square |
| Manufacturer | ETA |
| Material | AISI 316L, Stainless Steel, Steel |
