MBI-PC 070708 OK

65 × 65 × 81 mm

Material: Polycarbonate

Category: All Products, Heavy Duty

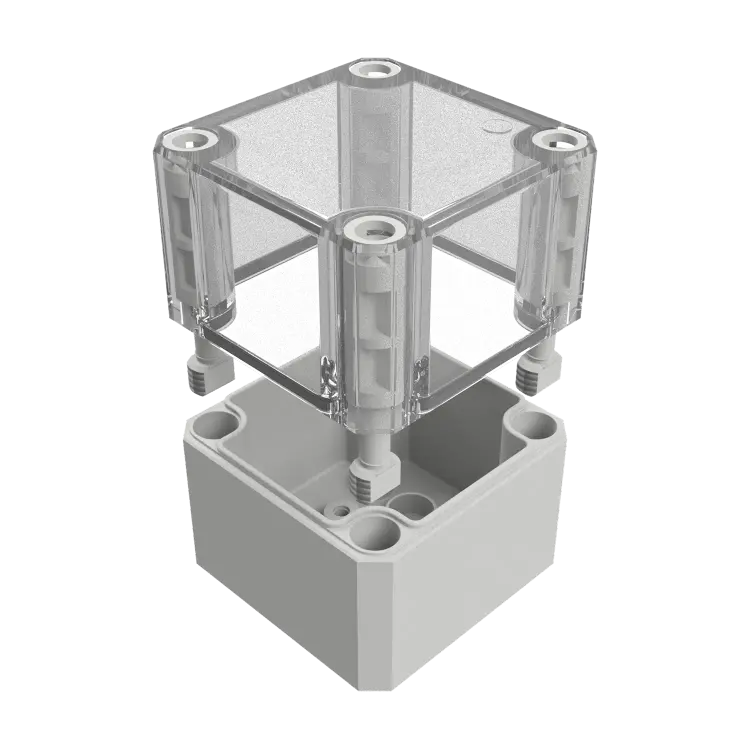

MBI-OK Plain sides / Clear Cover
Price on Application
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

MBI-OK Plain sides / Clear Cover is characterised by a wide range of sizes and a systematic focus on requirements in industrial installations. MBI enclosure bases are designed with plane side walls. These can be mechanically processed according to customer requirements. Transparent covers are supplied with this version.

MBI enclosure bases are made of glass fibre reinforced polycarbonate in light grey colour RAL 7035. The material is UV-resistant (UL 746C F1) and self-extinguishing (UL 94 V0). The transparent covers are also made of UV-resistant polycarbonate (UL 746C F1) and comply with the flammability classification UL 94 V2. Depending on quantities, the enclosures can be produced in special colours.

With a seamlessly foamed 2-component polyurethane gasket, all types achieve protection class IP66. The cover screws are made of plastic material and therefore they are completely corrosion-free. The impact resistance of the enclosures corresponds to IK08, making the MBI series ideally suitable for use in industrial and outdoor applications.

MBI enclosures offer a variety of mounting points for direct fixation of components into the base. The self-forming plastic screws for assembly are included in the scope of delivery.

There are several ways to mount the enclosures to walls or machines. With the cover opened, mounting can be done through Wall Mounting channels outside the sealing area. Alternatively, there are pre-formed knockouts on the enclosure base. With the cover closed, the enclosures can be fastened with external wall brackets. Another option is mounting with M4 screws from the rear side into pressed-in thread bushes in the bottom of the enclosure.

Depending on quantities, we can produce customer-specific mould sides. Individual knockouts, cut-outs and hole designs can be implemented in the injection mould and there is no requirement for further mechanical processing.

RAL-code base: 7035
Material cover: Polycarbonate
Material base: Polycarbonate GF10
Material sealing: Polyurethane
Material screws: Plastic
Material UL listed
UV-resistant
Permanent operating temperature max. (?C): 100
Permanent operating temperature min. (?C): -40
Suitable for outdoor use
Suitable for indoor use
Protection class IP : 66
Impact resistance IK : 08
Flame retardancy : V-2
Sealing foamed seamless
Captive cover screws

Technical

Dimensions 65 × 65 × 81 mm
Colour

Clear, Grey

Height

81

Width

65

Length

65

IP Rating

IP66

Manufacturer

Multi-Box

Material

Polycarbonate

Flammability

UL94

Shape

Rectangular/Square

Mounting

Free Standing, Wall Mount

Feature

N/A

Series

MBI
