MBM 248055

240 × 80 × 55 mm

Material: Polycarbonate

Category: All Products, Heavy Duty

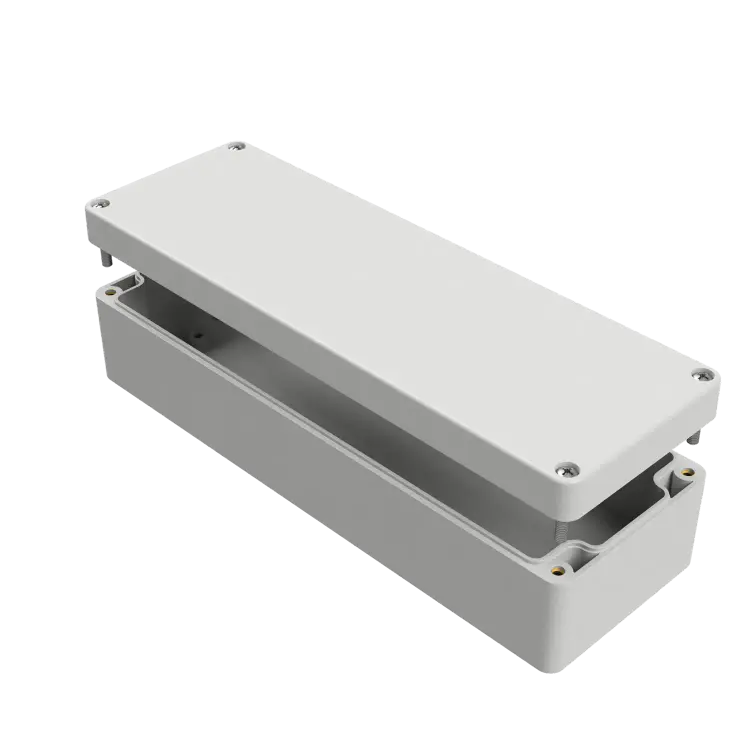

Polycarbonate-Enclosures MBM / Grey Cover
Price on Application
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.









Enquire Now

Product Details

Polycarbonate-Enclosures MBM / Grey Cover offer excellent properties for the installation of electronic and electrical components as well as complete control systems. Thanks to the high UV-resistance of the material, these enclosures can be used in both indoor and outdoor areas.

The MBM Enclosures are mechanically processed in a number of ways providing almost no limits with customised surface design, including silk screen printing and membrane keyboards.

The enclosures are available with a grey or transparent cover (K).

RAL-code cover: 7035
RAL-code base: 7035
Material cover: Polycarbonate
Material base: Polycarbonate
Material sealing: Polyurethane
Material screws: Stainless Steel V2 A
UV-resistant
Permanent operating temperature max. (?C): 100
Permanent operating temperature min. (?C): -40
Suitable for outdoor use
Suitable for indoor use
Protection class IP : 65
Sealing foamed seamless
Captive cover screws
Special colours

Technical

Dimensions 240 × 80 × 55 mm
Colour

Grey

Height

55

Width

80

Length

240

IP Rating

IP65

Manufacturer

Multi-Box

Material

Polycarbonate

Flammability

UL94

Shape

Rectangular / Square

Mounting

Free Standing

Feature

N/A

Series

MBM
