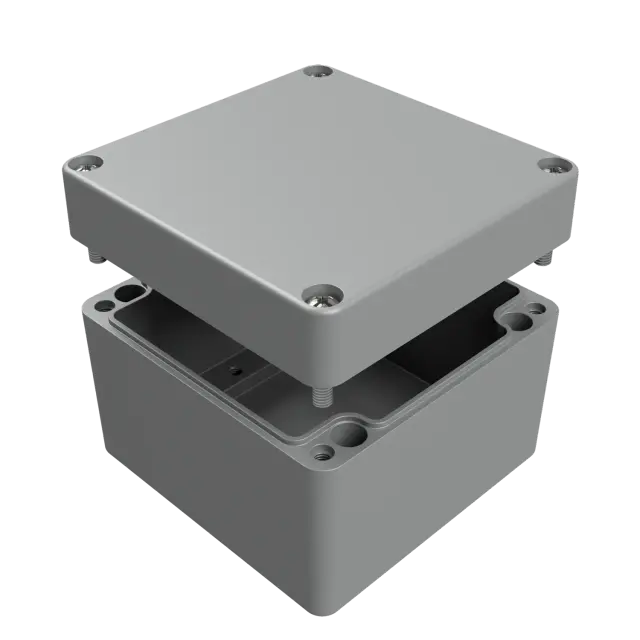

MBP 121290
122 × 120 × 90 mm
Material: Polyester
Category: All Products, General Purpose Plastic
Polyester-Enclosures MBP
Price on Application
Add to QuoteAsk a QuestionReport an ErrorEnclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
MBP 121290
MBP Enclosures are conform to the high standards required for applications within the mechanical engineering, shipbuilding, galvanic and petrochemical industry.
Besides good resistance to most solvents and acids, fibre glass reinforced Polyester is inflammable and self-extinguishing.
The enclosures are generally used as terminal enclosures or as command and information enclosures in chemically aggressive environments, such as refineries or road tunnels.
- RAL-code cover: 7001
- RAL-code base: 7001
- Material cover: Polyester GRP
- Material base: Polyester GRP
- Material sealing: EPDM
- Material screws: Stainless Steel V2 A
- UV-resistant
- Permanent operating temperature max. (?C): 110
- Permanent operating temperature min. (?C): -40
- Permanent operating temperature with special sealing max. (?C): 140
- Permanent operating temperature with special sealing min. (?C): -50
- Suitable for outdoor use
- Suitable for indoor use
- Protection class IP : 66
- Flame retardancy : V0
- Captive cover screws
Technical
| Dimensions | 122 × 120 × 90 mm |
|---|---|
| Height | 90 |
| Colour | Silver |
| Width | 120 |
| Length | 122 |
| Material | Polyester |
| IP Rating | IP66 |
| Shape | Rectangular/Square |
| Manufacturer | Multi-Box |
| Flammability | UL94 |
| Feature | N/A |
| Series | MBP |
