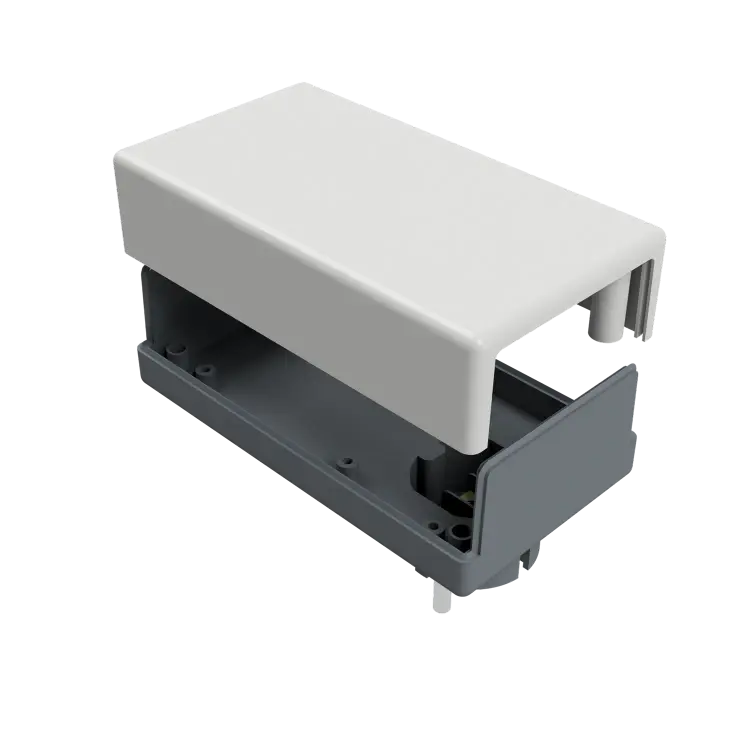

MBPO 126540 STE

120 × 65 × 40 mm

Material: Polystyrene

Category: All Products, Electrical

Electronic-Connector-Enclosures MBPO-ST
Price on Application
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.







ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.









Enquire Now

Product Details

Electronic-Connector-Enclosures MBPO-ST with different plug versions made of flame-resistant and impact resistant Polystyrene are frequently used for industrial power packs and chargers. Plugs in Schuko, European, Swiss and French versions are available as options.

Excellent stability is achieved with the groove and spring sealing and the base parts that open to the side allowing fast and uncomplicated assembly of construction elements.

The cover is invisibly screwed on from the underside in the standard version. Fixing from the top side of the cover is also possible as an alternative.

ST* = Plug without earthing
STE* = Schuko plug with earthing
ST CEE* = French plug version with earthing
ST CH* = Swiss plug version with earthing
ST EURO* = Europe plug version without earthing
DO* = Schuko-socket with earthing
DO CEE* = French socket with earthing

RAL-code cover: 7035
RAL-code base: 7016
Material cover: Polystyrene
Material base: Polystyrene
Permanent operating temperature max. (?C): 60
Permanent operating temperature min. (?C): -20
Suitable for indoor use
Protection class IP : 20
Flame retardancy : V0
Special colours

Technical

Dimensions 120 × 65 × 40 mm
Colour

Grey

Height

40

Width

65

Length

120

IP Rating

IP20

Manufacturer

Multi-Box

Material

Polystyrene

Flammability

UL94

Shape

Rectangular/Square

Mounting

Free Standing

Feature

N/A

Series

MBPO-ST
