MBT 208011

200 × 80 × 110 mm

Material: ABS

Category: All Products, General Purpose Plastic

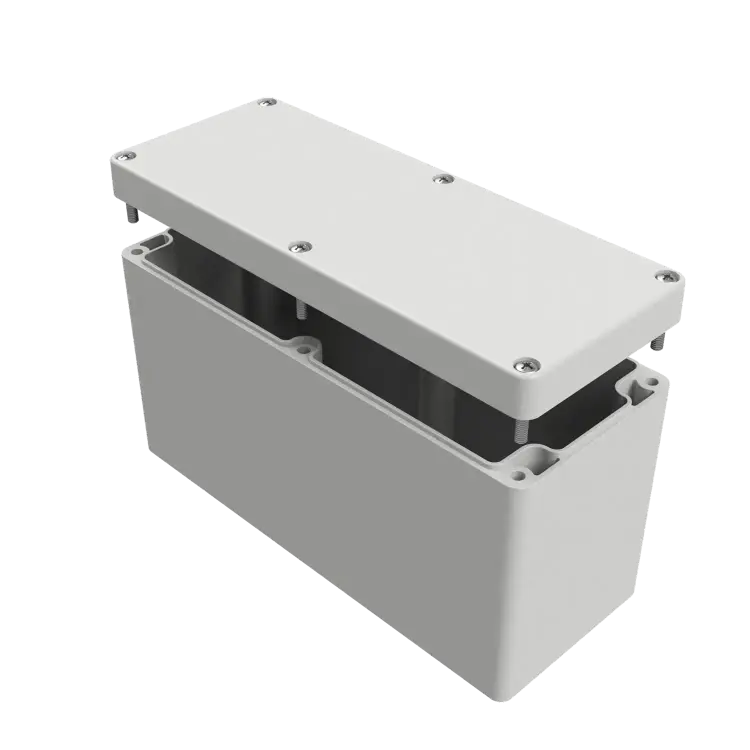

ABS-Enclosures MBT / Grey Cover
Price on Application
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

ABS-Enclosures MBT / Grey Cover offer excellent properties for the installation of electronic and electrical components as well as complete control systems for indoor applications. The MBT Enclosures can be mechanically processed in a number of ways providing almost no limits to customised surface design, including silk screen printing and membrane keyboards.

The enclosures are available with a grey or transparent cover (K).

RAL-code cover: 7035
RAL-code base: 7035
Material cover: ABS
Material base: ABS
Material sealing: Polyurethane
Material screws: Stainless Steel V2 A
Permanent operating temperature max. (?C): 80
Permanent operating temperature min. (?C): -40
Suitable for indoor use
Protection class IP : 65
Sealing foamed seamless
Captive cover screws
Special colours

Technical

Dimensions 200 × 80 × 110 mm
Colour

Grey

Height

110

Width

80

Length

200

IP Rating

IP65

Manufacturer

Multi-Box

Material

ABS

Flammability

UL94

Shape

Rectangular/Square

Mounting

Free Standing

Feature

N/A

Series

MBT
