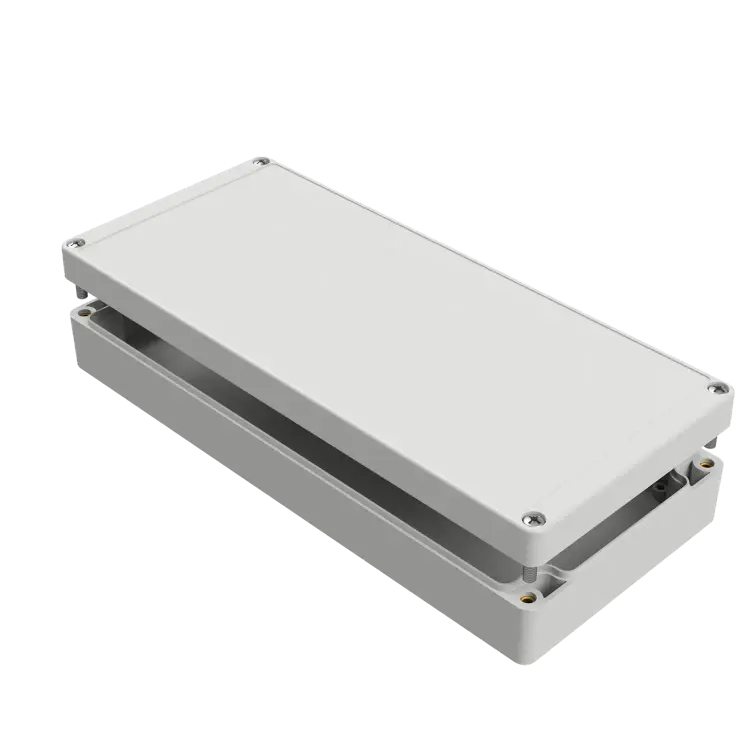

MBT 341555FT

340 × 150 × 55 mm

Material: ABS

Category: All Products, General Purpose Plastic

MBT FT ABS-Enclosures / Film-Recess
Price on Application

Low volume indicative cost. Enquire for volume pricing.

Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

MBT 341555FT

ABS Enclosures with film recess offer excellent properties for the installation of electronic and electrical components as well as complete control systems for indoor applications.

Our enclosures can be mechanically processed in a number of ways providing almost no limits to customised surface design, including silk screen printing or membrane keyboards.

  • RAL-code cover: 7035
  • RAL-code base: 7035
  • Material cover: ABS
  • Material base: ABS
  • Material sealing: Polyurethane
  • Material screws: Stainless Steel V2 A
  • Permanent operating temperature max. (?C): 80
  • Permanent operating temperature min. (?C): -40
  • Suitable for indoor use
  • Protection class IP : 65
  • Sealing foamed seamless
  • Captive cover screws
  • Special colours

Technical

Dimensions 340 × 150 × 55 mm
Colour

Grey

Height

55

Width

150

Length

340

IP Rating

IP65

Manufacturer

Multi-Box

Material

ABS

Flammability

UL94

Shape

Rectangular/Square

Mounting

Free Standing

Feature

N/A

Series

MBT
