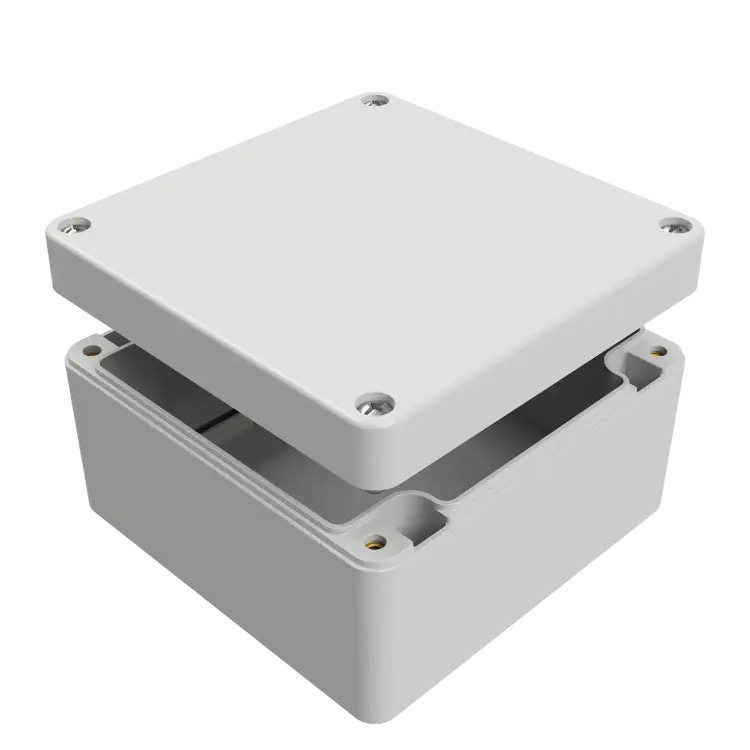

MBX 161690 B
160 × 160 × 90 mm
Material: Polycarbonate
Category: All Products, Heavy Duty
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details
| Polycarbonate-Enclosures MBX Basic is made of polycarbonate have been specially designed for industrial applications. The 10 sizes are compatible with the well-known standard aluminium enclosures and represent a cost-effective alternative. The MBX BASIC series is superior to all aluminium enclosures, especially in applications with an increased risk of corrosion. The polycarbonate material in grey RAL 7035 is weatherproof and absolutely corrosion-free.
With a seamlessly foamed 2-component polyurethane gasket, all types achieve protection class IP69. The enclosures can easily withstand high pressure water jets, steam jet cleaning or short-term flooding. RAL-code cover: 7035 |
Technical
| Dimensions | 160 × 160 × 90 mm |
|---|---|
| Colour | Grey |
| Height | 90 |
| Width | 160 |
| Length | 160 |
| IP Rating | IP66-69 |
| Manufacturer | Multi-Box |
| Material | Polycarbonate |
| Flammability | UL94 |
| Shape | Rectangular/Square |
| Mounting | Free Standing |
| Feature | N/A |
| Series | MBX Basic |
