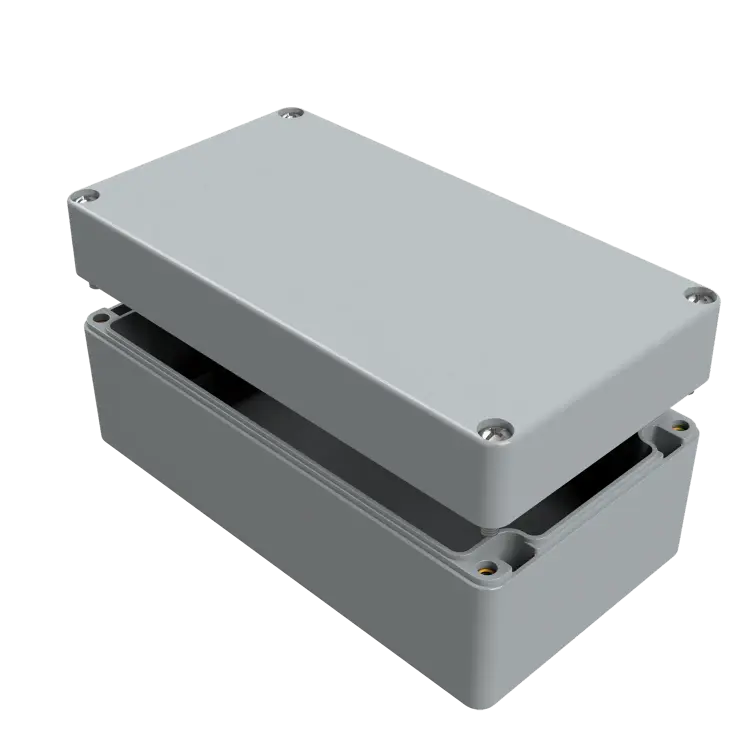

MBX 221290 P

220 × 120 × 90 mm

Material: Polycarbonate

Category: All Products, Heavy Duty

Polycarbonate-Enclosures MBX PRO
Price on Application
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

Polycarbonate-Enclosures MBX PRO is one of the most durable standard plastic enclosures on the market, specifically designed for use in industrial and outdoor applications. Dust, water, heat, cold or mechanical shocks are no problem! The 10 enclosure types are produced from a newly developed impact-resistant and weather-resistant polycarbonate material in colour silver-grey RAL 7001, which meets self-extinguishing levels according to UL94V-0/5VA. The cover screws are made of stainless steel. The MBX PRO series is superior to all aluminium enclosures, especially in applications with an increased risk of corrosion.

With a seamlessly foamed 2-component polyurethane gasket, all types achieve protection class IP69. The enclosures can easily withstand high pressure water jets, steam jet cleaning or short-term flooding. They are therefore ideally suited for use in vehicle construction, agricultural engineering, plant construction and other high risk corrosion areas. In addition, the enclosures meet the requirements of DIN EN 45545-2 for railway applications.

RAL-code cover: 7001
RAL-code base: 7001
Material cover: Polycarbonate
Material base: Polycarbonate
Material sealing: Polyurethane
Material screws: Stainless Steel V2 A
Material UL listed
UV-resistant
Permanent operating temperature max. (?C): 100
Permanent operating temperature min. (?C): -40
Suitable for outdoor use
Suitable for indoor use
Protection class IP : 69, 66
Impact resistance IK : 10
Flame retardancy : V-0/5VA
Sealing foamed seamless
Captive cover screws

Technical

Dimensions 220 × 120 × 90 mm
Colour

Silver

Height

90

Width

120

Length

220

IP Rating

IP66-69

Manufacturer

Multi-Box

Material

Polycarbonate

Flammability

UL94

Shape

Rectangular/Square

Mounting

Free Standing

Feature

N/A

Series

MBX-Pro
