SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST

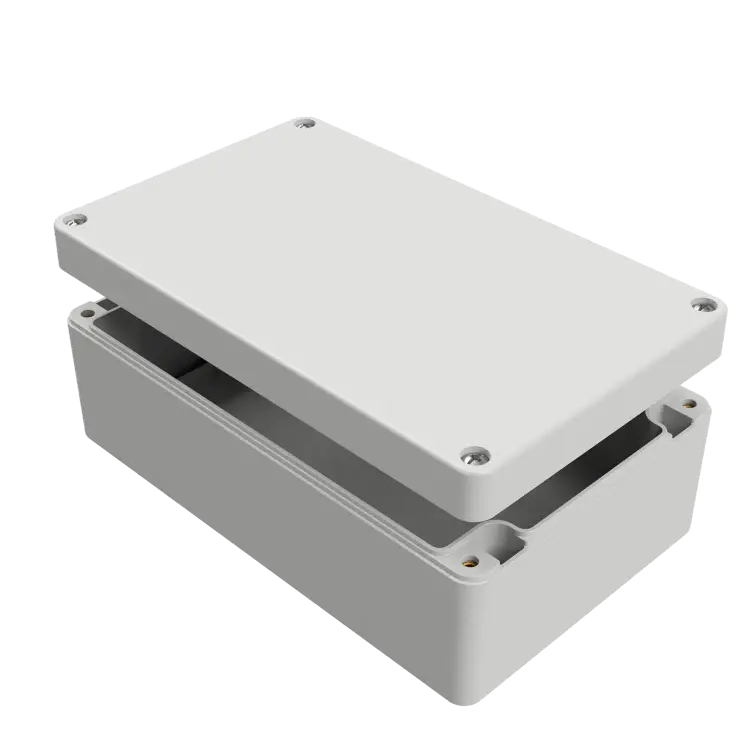

MBX 261690 B

260 × 160 × 90 mm

Material: Polycarbonate

Category: All Products, Heavy Duty

Polycarbonate-Enclosures MBX Basic
Price on Application
Add to QuoteAsk a QuestionReport an Error

Enclosure Customisation

CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.

ENQUIRE NOW

Manufacturing

PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.







Enquire Now

Product Details

Polycarbonate-Enclosures MBX Basic is made of polycarbonate have been specially designed for industrial applications. The 10 sizes are compatible with the well-known standard aluminium enclosures and represent a cost-effective alternative. The MBX BASIC series is superior to all aluminium enclosures, especially in applications with an increased risk of corrosion. The polycarbonate material in grey RAL 7035 is weatherproof and absolutely corrosion-free.

With a seamlessly foamed 2-component polyurethane gasket, all types achieve protection class IP69. The enclosures can easily withstand high pressure water jets, steam jet cleaning or short-term flooding.

RAL-code cover: 7035
RAL-code base: 7035
Material cover: Polycarbonate
Material base: Polycarbonate
Material sealing: Polyurethane
Material screws: Stainless Steel V2 A
UV-resistant
Permanent operating temperature max. (?C): 100
Permanent operating temperature min. (?C): -40
Suitable for outdoor use
Suitable for indoor use
Protection class IP : 69, 66
Impact resistance IK : 08
Flame retardancy : V2
Sealing foamed seamless
Captive cover screws

Technical

Dimensions 260 × 160 × 90 mm
Colour

Grey

Height

90

Width

160

Length

260

IP Rating

IP66-69

Manufacturer

Multi-Box

Material

Polycarbonate

Flammability

UL94

Shape

Rectangular/Square

Mounting

Free Standing

Feature

N/A

Series

MBX Basic
