2600_2700 Series Terminal Cases_series_D (1)
202.6 KB
Enclosure Solutions operates a continuous improvement policy. The information contained on this site is provided on an ‘as-is’ basis with no guarantees of completeness, accuracy or usefulness.Errors and omissions excepted.
SCROLL DOWN FOR TECHNICAL INFORMATION
ACCESSORIES AVAILABLE UPON REQUEST
RTM2603-BR/B
210 × 381 × 55 mm
Material: Aluminium
Category: All Products, Desktop & Instrument
2600 Series Aluminium Terminal Case, 210x381x55mm
£75.14
Add to QuoteAsk a QuestionReport an Error
Enclosure Customisation
CNC Holes, Slots, Shapes, Routing, Custom Colours, Printing and Assembly Kits are available for this product.
Manufacturing
PCB Assembly, Wiring, Keypads & Components right up to a full Turnkey Box-Build.
Product Details

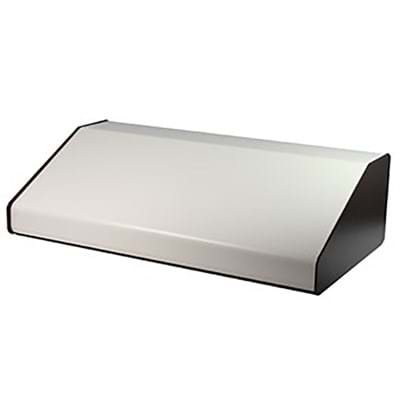

RTM2603-BR/B – 2600 Series Aluminium Terminal Case, 210x381x55mm
These alumuminium desktop console enclosures are ideal for model railway control panels, laboratory equipment, keyboards, access and security applications.
2 part aluminium construction
Easy assembly with 4x M3 screws running through rubber feet into base
4x rubber feet supplied as standard
Additional colours available upon request (may be subject to MOQ)
2600/2700 series has been designed to meet the requirements of IP40
Technical
| Dimensions | 210 × 381 × 55 mm |
|---|---|
| Colour | Beige |
| Height | 55 |
| Width | 381 |
| Length | 210 |
| IP Rating | IP20 |
| Manufacturer | CamdenBoss |
| Material | Aluminium |
| Flammability | N/A |
| Shape | Rectangular/Square, Sloped Design |
| Mounting | Free Standing |
| Feature | Easy Assembly |
| Series | 2600 |
Downloads
RTM2603-BR_B
173.05 KB
